The pi-top [4] Robotics Kit, specifically the Alex configuration, is a versatile platform designed for autonomous driving and AI projects. It offers a modular and expandable system, allowing users to customize and design configurations to suit their specific needs. The kit is built around the pi-top [4] (sold separately), which serves as the core computing unit.

Function Description:

Alex is engineered to facilitate the development and execution of robotics projects, particularly those involving autonomous navigation and artificial intelligence. Its primary function is to provide a robust and flexible hardware foundation for learning and experimenting with robotics, coding, and AI concepts. The integrated sensors and motors enable the robot to perceive its environment, move autonomously, and interact with its surroundings.

Important Technical Specifications:

The Alex configuration includes several key components that contribute to its functionality:

Pan-tilt Servo Motor Mechanism: Mounted on the front of the vehicle, this mechanism provides two degrees of freedom for the wide-angle camera sensor, allowing it to achieve a full 180° range of motion in both axes. This extensive range is crucial for comprehensive environmental scanning.
Ultrasonic Sensor: Also attached to the Pan-tilt Servo Motor mechanism, the Ultrasonic Sensor enables Alex to perform full 180° scans to detect obstacles. This is vital for obstacle avoidance and safe navigation.
High-Accuracy, High-Power Encoder Motors: Two encoder motors are positioned at the front of the vehicle. These motors offer high accuracy, which is beneficial for projects requiring precise positioning, such as line-following.
Build Plates and Brackets: The kit includes a variety of build plates (e.g., 2x10, 4x8, 2x14) and brackets (e.g., 90°, 120°) that form the structural basis of the robot. These components are connected using short and long rivets, providing a sturdy and customizable frame.
Chassis: The central frame of the robot, providing the mounting points for all other components.
Castor Wheel: A single castor wheel is used for stability and maneuverability, typically at the rear of the robot.
Camera: A wide-angle camera sensor is included for visual perception, mounted on the pan-tilt mechanism. It connects via a Micro USB Cable to the pi-top [4] or Expansion Plate.
Expansion Plate (Sold Separately): This plate enhances connectivity and provides additional mounting points, expanding the robot's capabilities. It's crucial to ensure the Expansion Plate is oriented correctly during assembly.
Cables: The kit includes 6-pin Encoder Motor Cables, 3-pin Servo Motor Cables, and 4-pin Sensor Cables to connect the various electronic components to the pi-top [4].
Fasteners: Short and long rivets are used for assembly, along with M4 Wheel Screws and Grub Screws for the wheels.
Tools: Essential tools for assembly include a Rivet Removal Tool, Screwdriver, 2.5mm Allen Key, 2mm Allen Key, and Tape.

Usage Features:

The Alex configuration is designed for ease of use and expandability, catering to both beginners and advanced users:

Modular Design: The pi-top [4] Robotics Kit emphasizes modularity, allowing users to easily reconfigure and adapt the robot for different projects. The extensive range of sensor mounting points facilitates rapid adaptation and changes.
Autonomous Driving: With its camera, ultrasonic sensor, and precise encoder motors, Alex is well-suited for projects involving autonomous navigation, obstacle detection, and path planning.
AI Projects: The platform supports AI development, particularly in areas like computer vision and machine learning, leveraging the camera and processing power of the pi-top [4].
Line-Following: The high-accuracy encoder motors make Alex an excellent platform for implementing and experimenting with line-following algorithms.
Educational Platform: The kit is ideal for educational settings, guiding students and beginners through a wide range of coding projects. Online learning platforms like "Further" provide structured guidance.
Software Development Kits (SDKs):
- pi-top Python Software Development Kit (SDK): Provides hardware drivers and libraries to simplify Python development for the robot, suitable for beginner to advanced users.
- pi-top .NET Core SDK: Developed in collaboration with Microsoft, this SDK allows for advanced programming and is demonstrated in remote computer science class scenarios using Microsoft Teams.
- pi-top Robotics Engine (ROS): An advanced feature for experienced users, offering a Robot OS implementation that can run on the pi-top hardware as a Docker container or a simulation package on Debian systems. This is perfect for developing advanced machine learning and computer vision algorithms, with available ROS packages, Gazebo simulation files, and apps.
Connectivity: The pi-top [4] and Expansion Plate offer multiple USB ports for connecting peripherals like the camera, ensuring flexible setup.

Maintenance Features:

While the manual primarily focuses on assembly, the modular nature of the kit inherently supports maintenance and modification:

Rivet Removal Tool: The inclusion of a dedicated rivet removal tool highlights the design's emphasis on disassembly and reassembly. This tool allows users to easily take apart the robot for modifications, repairs, or reconfigurations without damaging components.
Clear Build Instructions: Detailed, step-by-step build instructions with visual aids ensure that users can accurately assemble and disassemble the robot, which is crucial for maintenance and troubleshooting.
Component Identification: Each part is clearly labeled with quantities, making it easy to identify and replace specific components if needed.
Support Resources: pi-top.com/support and forum.pi-top.com are provided as resources for users encountering trouble, suggesting a community-driven approach to problem-solving and maintenance.
Documentation: Comprehensive documentation for all pi-top products, including the Robotics Kit and SDKs, helps users understand the system and navigate its features, aiding in both initial setup and ongoing maintenance.

In summary, the pi-top [4] Robotics Kit (Alex) is a comprehensive and adaptable robotics platform designed to empower users in autonomous driving and AI projects through its modular hardware, extensive sensor and motor capabilities, and robust software support.

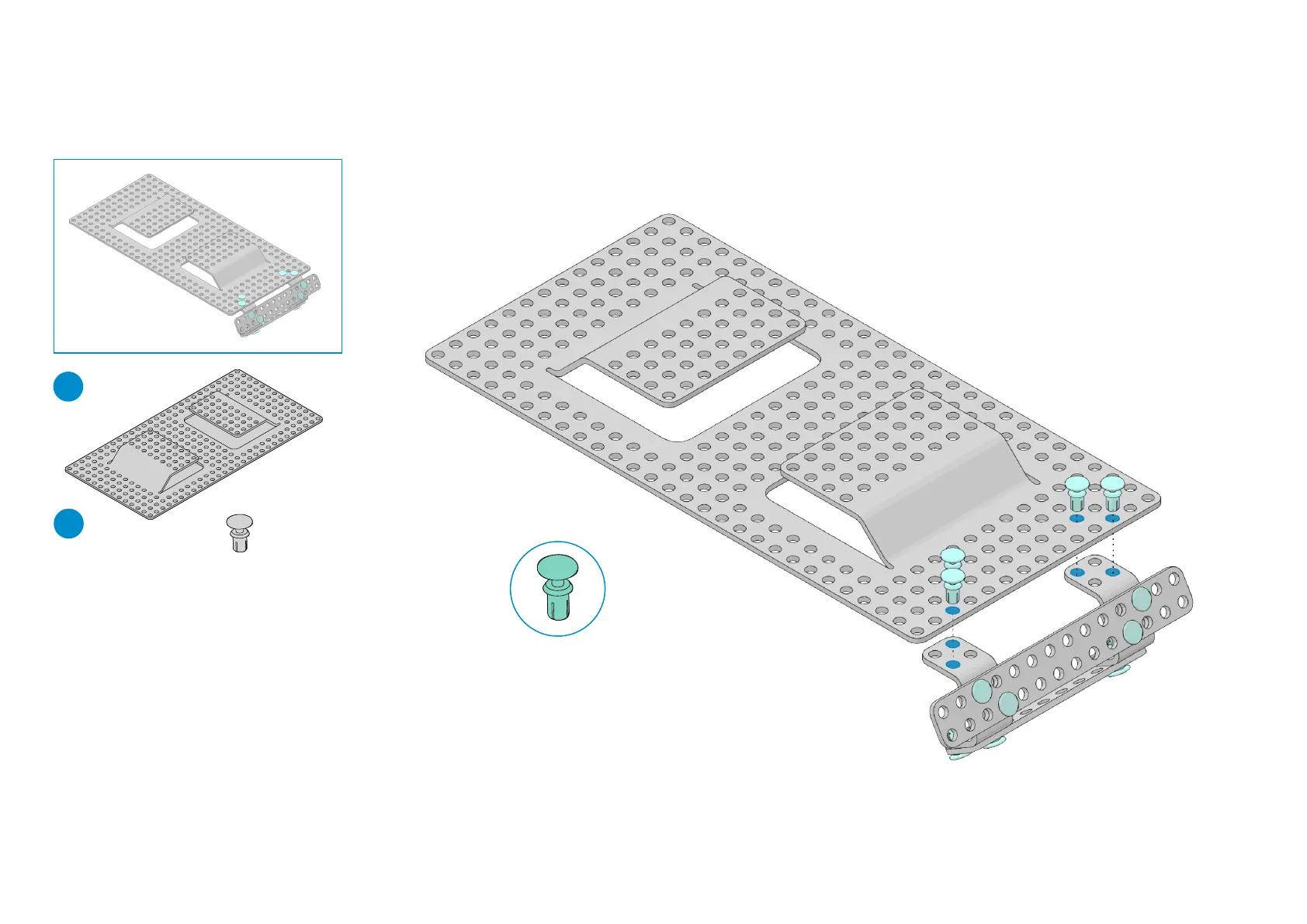

Pi-top ALEX - Chassis
