P6040 ES programming steps, Vaccuum/Blow
Response time setting

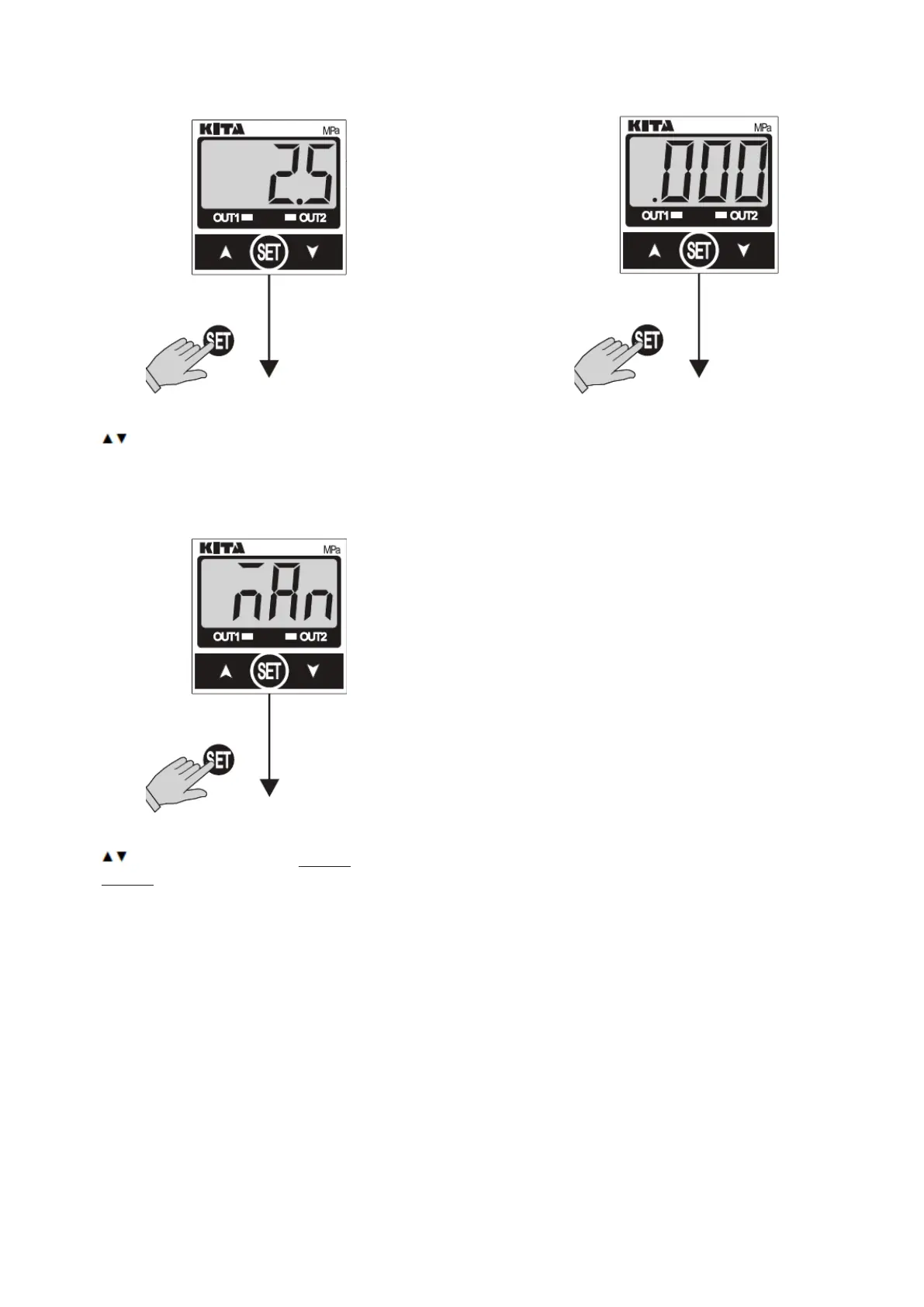

Figure 8 Response time setting.
– Use
buttons to set response time.
(2.5, 24, 192 and 768 mS.) Set to 192 mS
Pressure value setting
:Auto/Manual
Figure 9 Pressure value setting.
– Use
buttons to select auto/manual setting.
Set to manual.
Measure Mode
Figure 10 Measure mode.
Pressure setting mode (Hysteresis)
Manual setting example, vacuum mode
Press Set button shortly:
Set n_1 = -30 kPa
Set n_2 = -40 kPa
Set n_3 = Not used
Set n_4 = Not used
This setting makes a hysteresis setting of 10 kPa.
Manual setting example, blow mode
Press Set button shortly:
Set n_1 = -30 kPa
Set n_2 = -20 kPa
Set n_3 = Not used
Set n_4 = Not used
This setting makes a hysteresis setting of 10 kPa.
