- Lubricate the main bushings and insert the crank-
shaft in the transmission side crankcase half.
- Reassemble the two crankcase halves.
- Fit the 11 screws and tighten them to the pre-
scribed torque.
N.B.
WHEN FITTING THE HALF CASING AND THE CRANK-
SHAFT, TAKE CARE NO TO DAMAGE THE SHAFT THREA-
DED TANGS.
Locking torques (N*m)
Locking torque 11 ÷ 13

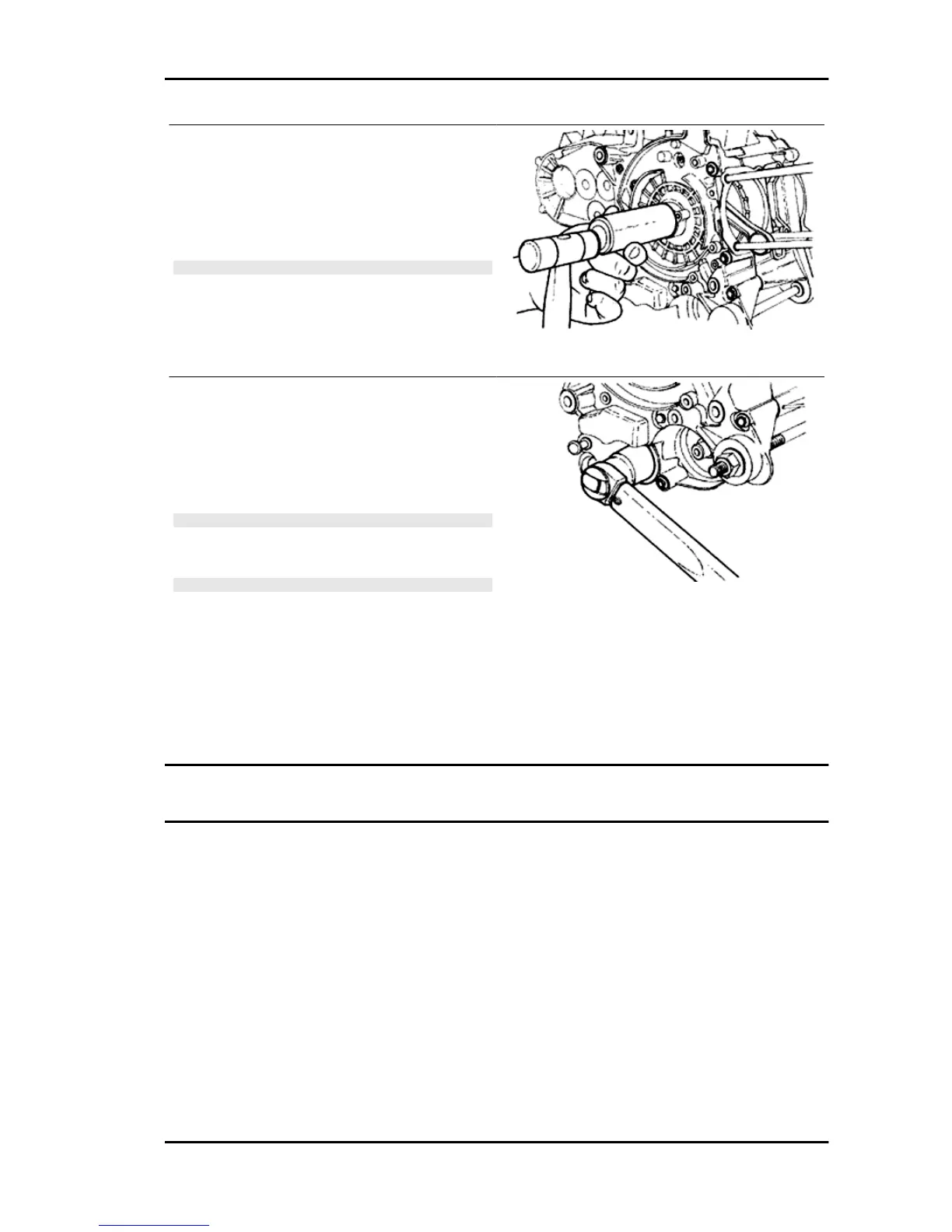

- Lubricate the flywheel oil seal.
- Use the appropriate tool to assemble the oil seal.
- Fit a new O-ring on the pre-filter and lubricate it.
- Insert the pre-filter on the engine with its corre-
sponding cover to the specific torque.
N.B.
REMOVE ANY EXCESS FROM THE CRANKCASE COU-
PLING GASKET ON THE CYLINDER PLANE, TO ENSURE
BETTER SEALING PERFORMANCE.
N.B.
FAILURE TO USE THE SPECIFIC TOOL CAN RESULT IN
AN INCORRECT DEPTH POSITION AND AS A CONSE-
QUENCE IN INADEQUATE OIL SEALING.
Specific tooling
020425Y Punch for flywheel-side oil seal
Locking torques (N*m)
Locking torque 24 ÷ 30
Lubrication
Liberty 125 - 200 4tempi Engine
ENG - 115

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
