PIAGGIO Liberty 125 User Manual

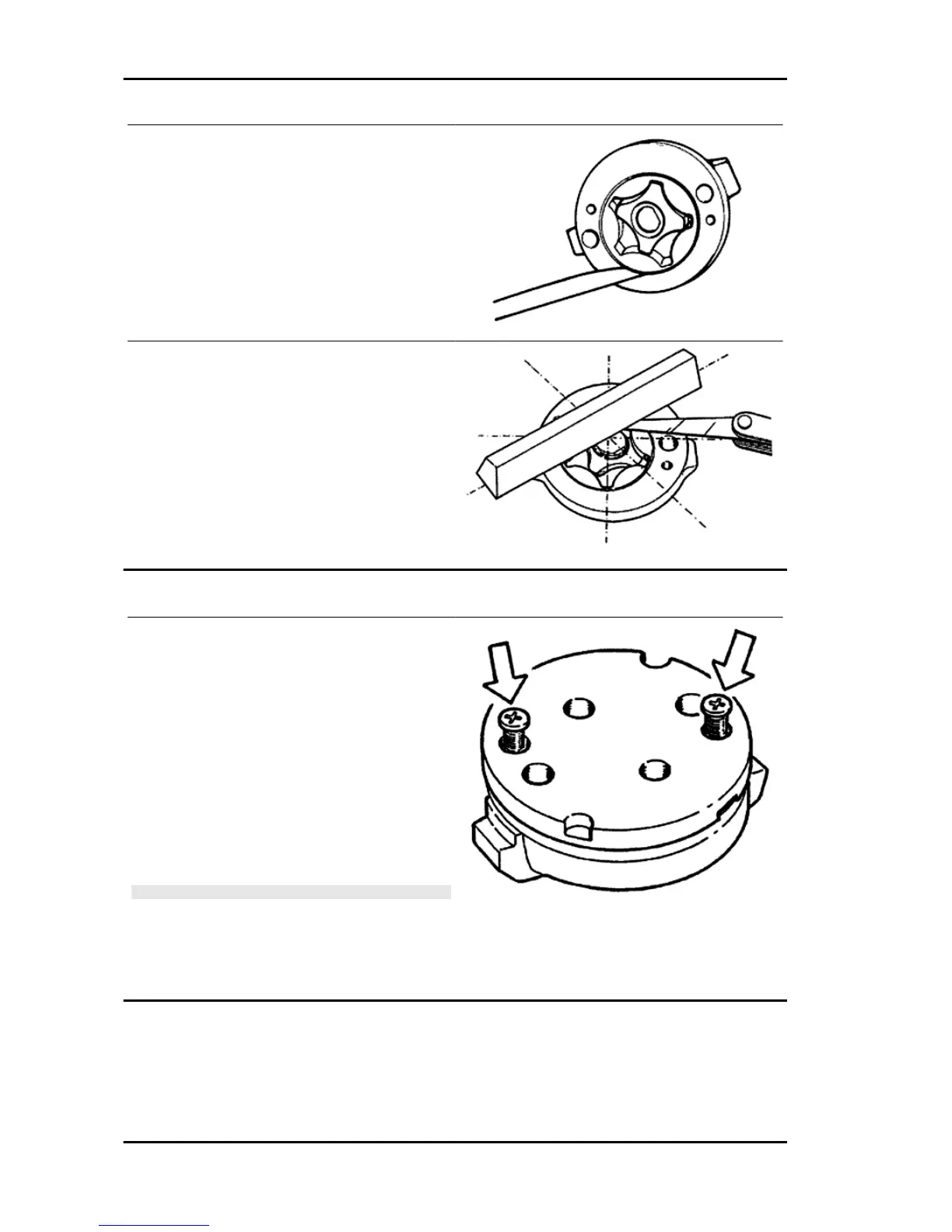

Measure the distance between the outer rotor and
the pump body; see figure.
Characteristic
Admissible limit clearance:
0.20 mm
Check the axial clearance of the rotors with a trued
bar as reference, as shown in the figure.
Characteristic
Limit values admitted:
0.09 mm
Refitting
- Check there are no signs of wear on the oil pump
shaft or body.
- Check there are no signs of scoring or wear on
the oil pump cover.
- If you detect non-conforming measurements or
scoring, replace the faulty parts or the assembly.
- Fit the pulley to the pump, the central screw to
the specified torque and the belleville washer.
-Fit the oil pump cover, by tightening the two
screws to the prescribed torque.
N.B.
FIT THE BELLEVILLE WASHER SO THAT ITS OUTER
(CURVED) RIM TOUCHES THE PULLEY.
Locking torques (N*m)
Central screw 12 ÷ 14 Nm Cover screws 0.7 ÷ 0.9 Nm
Engine Liberty 125 - 200 4tempi
ENG - 122

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
