PIAGGIO Liberty 125 User Manual

Disc Inspection

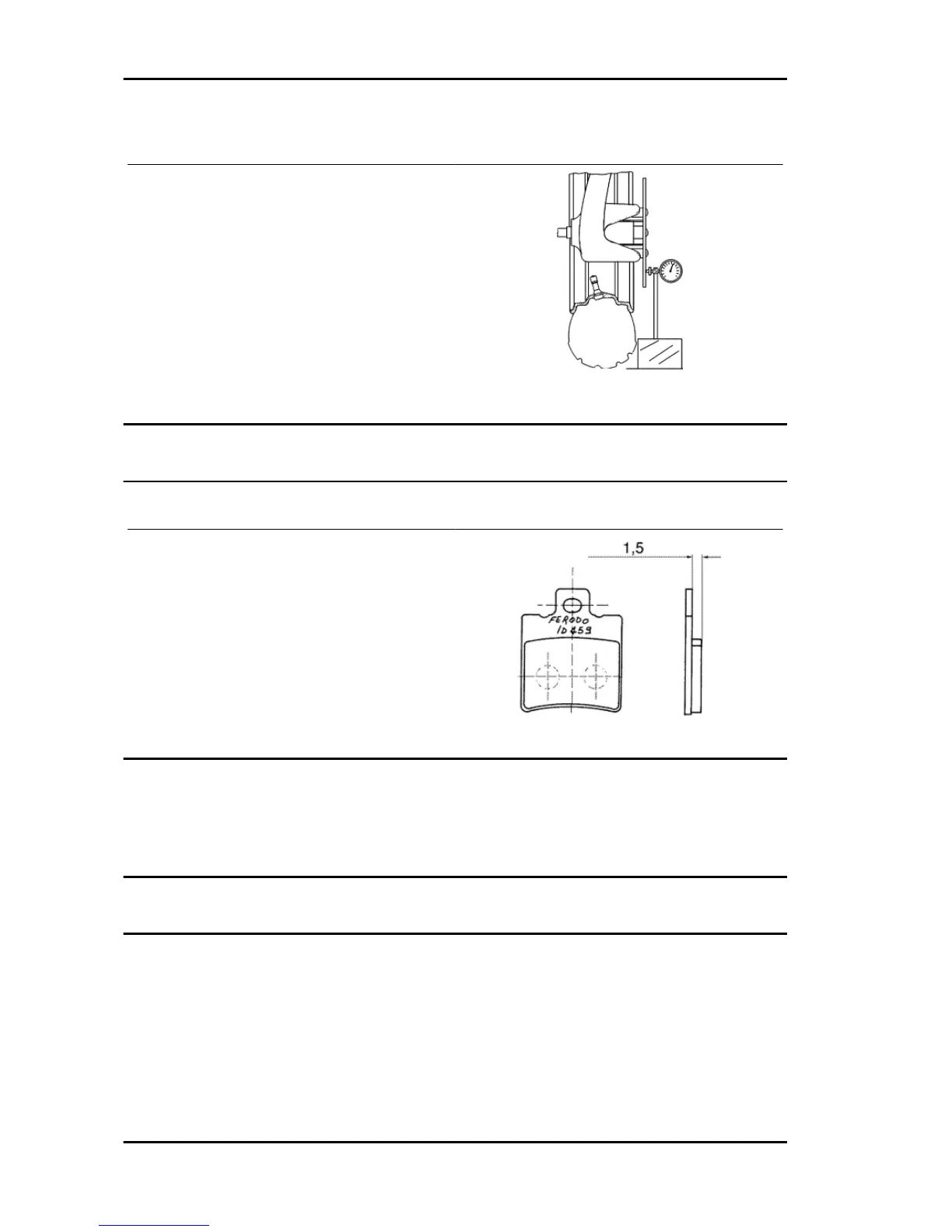

- Remove the wheel and check for unevenness of
the disc.
Maximum permissible out of true is 0.1 mm. If the
value measured is greater, fit a new disc and re-
peat the check.
- If the problem persists, check and replace the
wheel rim if necessary.
Specific tooling
020335Y Magnetic support for dial gauge
Front brake pads
Removal
- To facilitate this operation remove the two calliper
fixings. With the calliper detached from its support
but still connected to the brake fluid line, remove
the plastic cover by prising it with a screwdriver.
- Remove the outside circlip from the brake pad
pin, the leaf spring and the pads.
- Renew the pads when friction facing thickness is
less than 1.5 mm.
Refitting
- To reassemble perform the above steps in reverse order. Position the leaf spring with the arrow facing
up.
Fill
Braking system Liberty 125 - 200 4tempi
BRAK SYS - 148

PIAGGIO Liberty 125 Specifications

General

Displacement	124 cc
Fuel System	Electronic Injection
Front Suspension	Hydraulic telescopic fork
Rear Brake	140 mm drum
Front Tire	90/80 - 16"
Rear Tire	100/80 - 14"
Wheelbase	1, 340 mm
Length	1, 945 mm
Width	690 mm
Seat Height	790 mm
Engine Type	Single cylinder, 4-stroke
Torque	10.4 Nm @ 8, 000 rpm
Cooling System	Air cooled
Transmission	CVT
Rear Suspension	Single shock absorber
Front Brake	240 mm disc
Fuel Tank Capacity	6 liters
Weight	124 kg
