PIAGGIO Liberty 125 User Manual

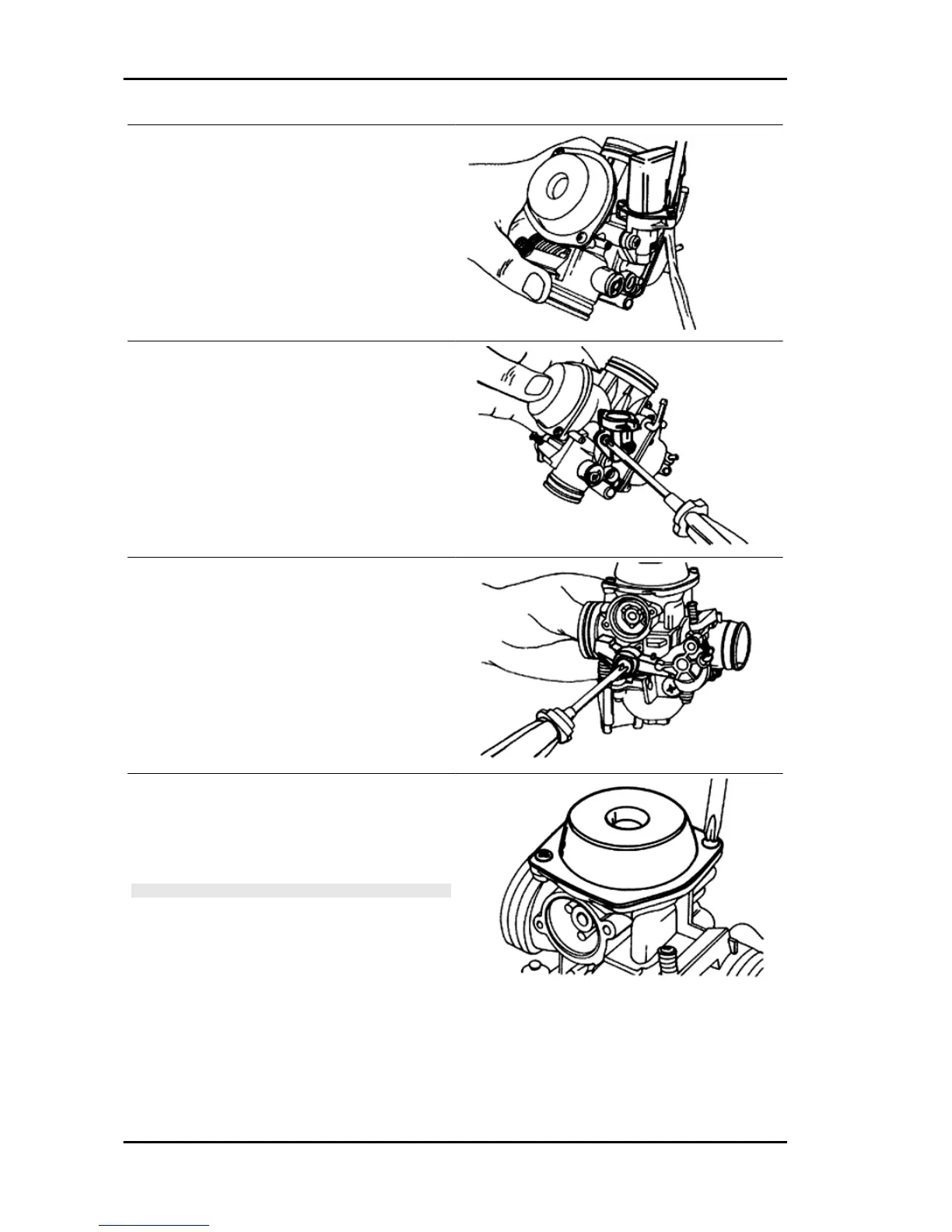

- Remove the guard, the bracket and the auto-
choke unit.
- Remove the two screw fasteners and the auto-
choke support, together with the gasket.
- Remove the screw fastener shown in the dia-
gram, the lever and the accelerator pump spring.
- Remove the two screw fasteners shown in the
diagram, the venturi cover and the spring.
- Remove the needle valve together with the dia-
phragm.
WARNING
DURING THE REMOVAL OF THE COVER TAKE SPECIAL
CARE NOT TO RELEASE THE SPRING ACCIDENTALLY.
Engine Liberty 125 - 200 4tempi
ENG - 126
