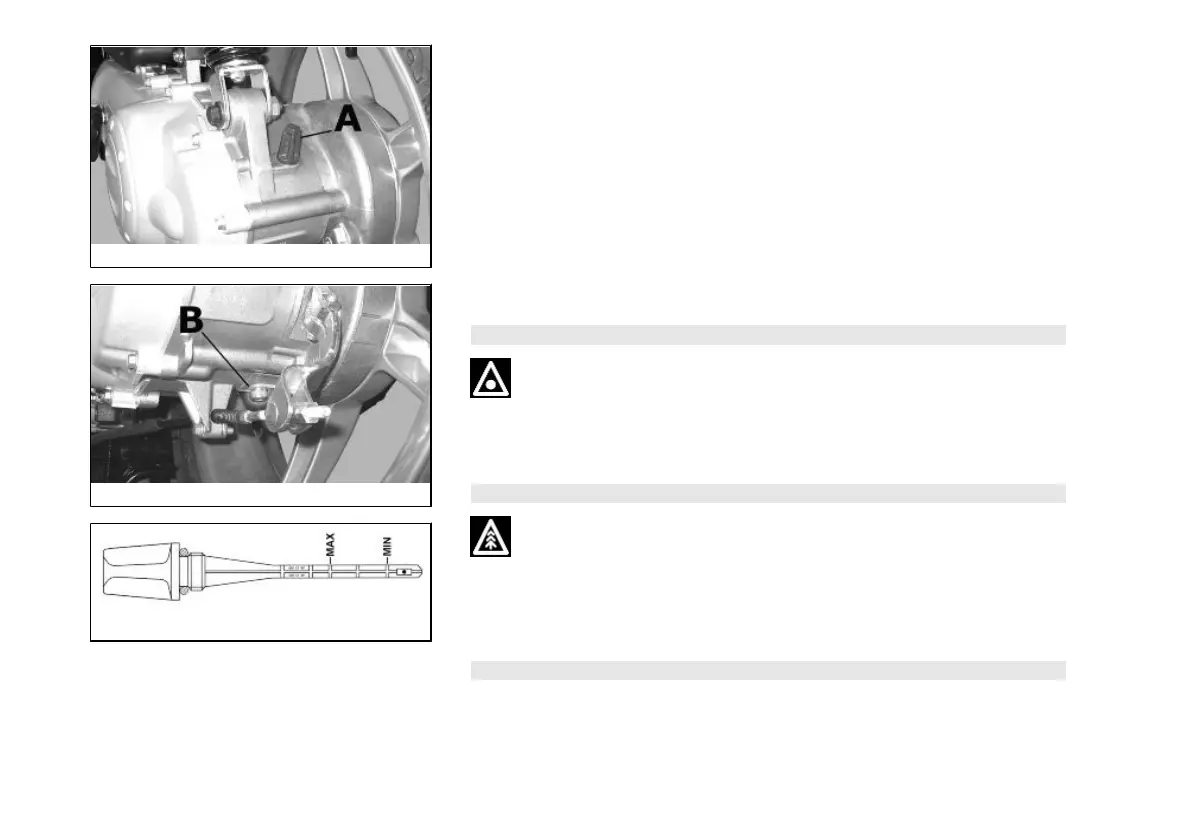

Huboillevel (03_01, 03_02, 03_03)
To check the hub oil level, proceed as follows:
1)Bring the vehicle on flat ground, then rest it on its stand;
2) Unscrew dipstick «A», dry it with a clean cloth and then reinsert it, screwing it fully
into place («B» oil drainage hole plug);
3) Take out the dipstick and check that the oil level reaches the "intermediate" notch
(dipstick with 3 notches). With a dipstick with 2 notches, the oil level must remain in
the lower half of the dipstick.
4) Screw the oil dipstick back in and check it is locked.
Check there is oil in the rear hub.
CAUTION
RUNNING THE ENGINE WITH INSUFFICIENT LUBRICATION OR WITH THE IN-
ADEQUATE LUBRICANTS ACCELERATES WEAR AND TEAR OF THE MOVING
PARTS AND CAN CAUSE IRRETRIEVABLE DAMAGE.
CAUTION
USED OILS CONTAIN SUBSTANCES HARMFUL TO THE ENVIRONMENT. FOR
OIL REPLACEMENT, CONTACT AN AUTHORISED SERVICE CENTRE WHICH IS
EQUIPPED TO DISPOSE OF USED OILS IN AN ENVIRONMENTALLY FRIENDLY
AND LEGAL WAY.
N.B.
THE NOTCHES ON THE HUB OIL LEVEL DIPSTICK, EXCEPT THE ONE INDI-
CATING THE MAXIMUM AND MINIMUM LEVEL, REFER TO OTHER MODELS BY
THE MANUFACTURER AND HAVE NO SPECIFIC FUNCTION FOR THIS MODEL.
