03_19
Rearopticalunit (03_19)

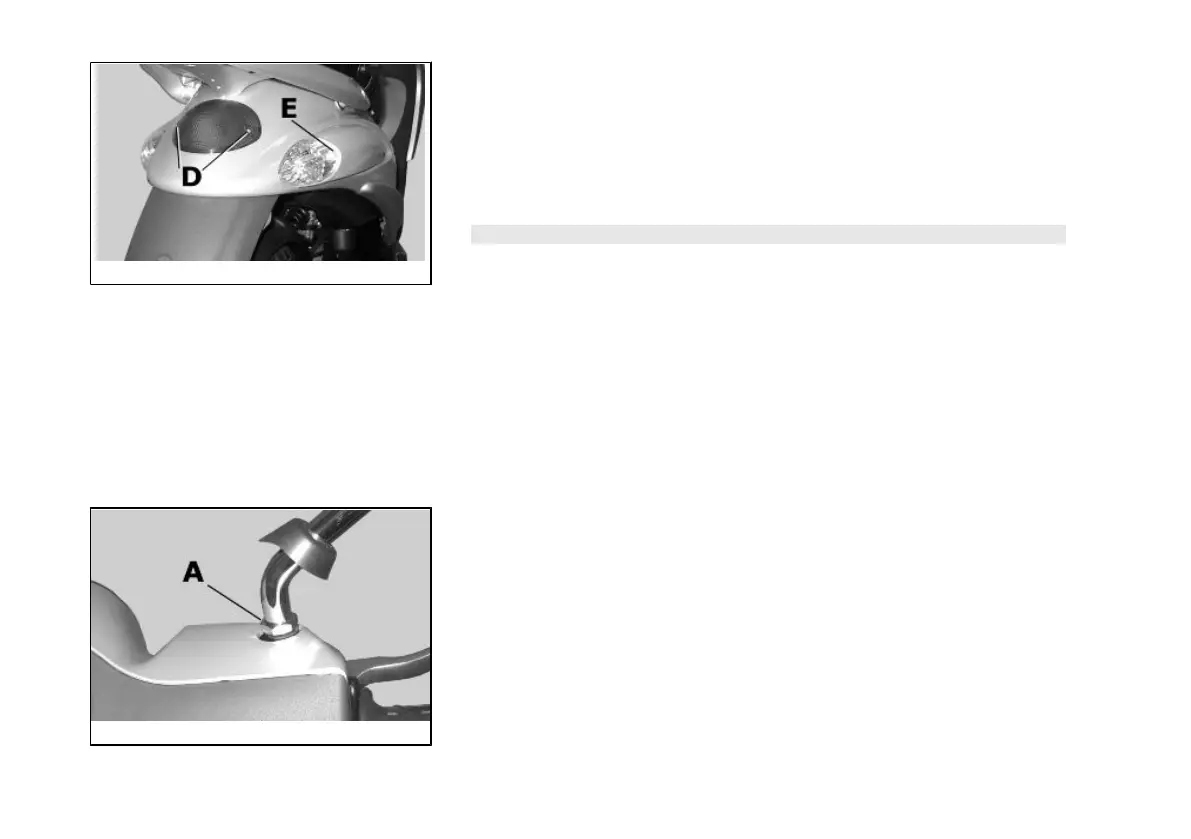

In order to reach the rear tail light bulb remove the 2 «D» retaining screws. To gain
access to the turn indicator bulbs, remove the fastening screws «E». Remove the light
taking off the retaining screw, then remove the bulb holder form its support; press the
bulb slightly, turn it about 30° and then extract it. The bulbs have a bayonet coupling,
to remove them press gently and twist anticlockwise about 30°. To refit follow the same
steps but in reverse order.
N.B.
IF MISTING IS NOTICED ON THE INSIDE OF THE HEADLAMP GLASS, THIS
DOES NOT INDICATE A FAULT AND IS ATTRIBUTABLE TO HUMIDITY AND/OR
TO LOW TEMPERATURES.
THE PHENOMENON SHOULD QUICKLY DISAPPEAR WHEN THE LIGHT IS
SWITCHED ON.
THE PRESENCE OF DROPS OF WATER, ON THE OTHER HAND, COULD INDI-
CATE THAT WATER IS INFILTRATING. CONTACT THE AFTER-SALES SERVICE
NETWORK.
03_20
Rear-viewmirrors (03_20)
To adjust the left mirror position, hold the mirror stem firmly at the desired position and
lock the nut «B» with a 13mm box-spanner. The rear view mirror is mounted on the
stem with a ball "joint" «A». The mirror can be adjusted to the desired position man-
ually.
Adjust the right wing mirror as shown in the picture; having screwed the stem in the
desired position, operate the ball "joint" until correctly aligned.
