PIAGGIO Liberty 50IE 2019 User Manual

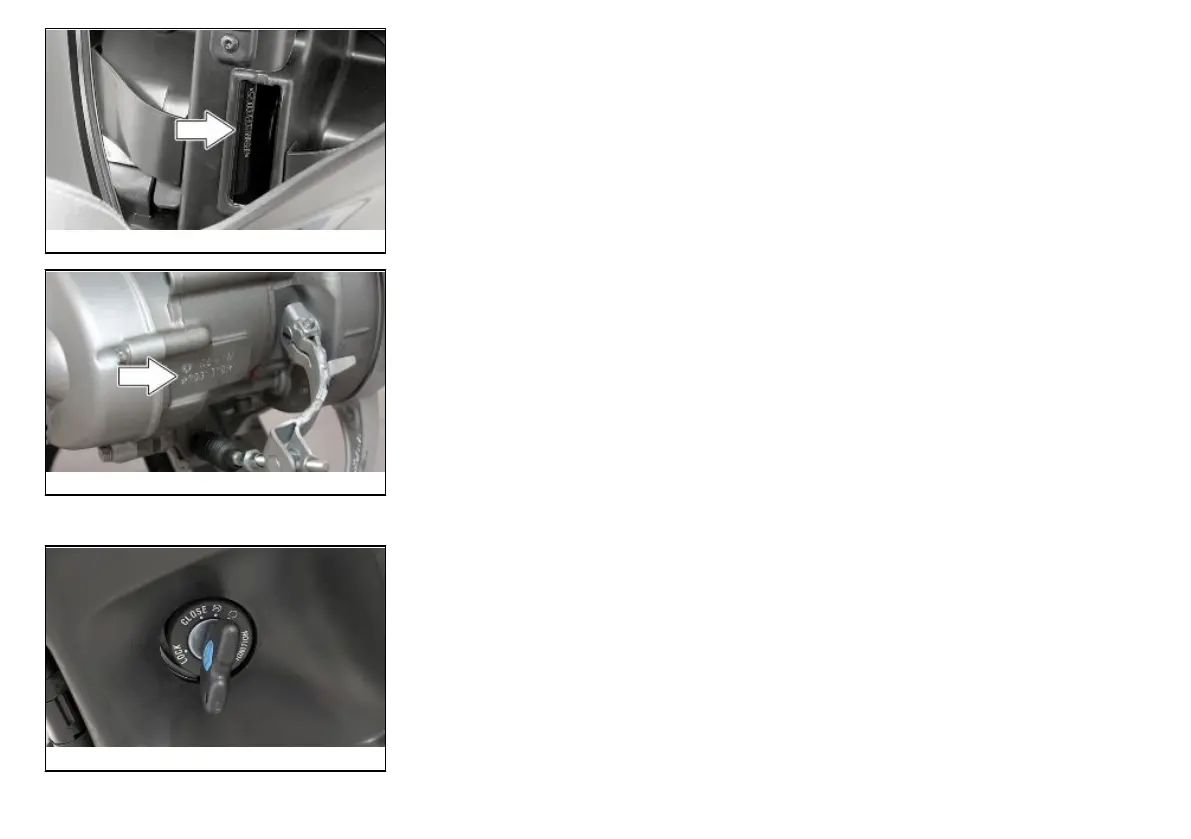

01_25
FRAME IDENTIFICATION NUMBER:
The frame identification number is inside the front case under a snap-on cover.
01_26
ENGINE IDENTIFICATION NUMBER:
The engine identification number is stamped in the rear part of the engine near the
shock absorber lower support.
01_27
Rear top box opening (01_27)
Put the ignition switch to «OFF» or «ON» and press it. With the ignition switch to
«CLOSE» or «LOCK» the case stays locked.
21
1 Vehicle

PIAGGIO Liberty 50IE 2019 Specifications

General

Displacement	49.9 cc
Fuel System	Electronic Fuel Injection
Transmission	Automatic CVT
Seat Height	780 mm
Brakes (Front)	Disc
Brakes (Rear)	Drum
Wheelbase	1, 340 mm
Cooling	Air-cooled
Front Suspension	Telescopic fork
Width	700 mm
Rear Suspension	Single shock absorber
Front Tire	90/80-16
Rear Tire	100/80-14
Engine Type	Single-cylinder, 4-stroke
