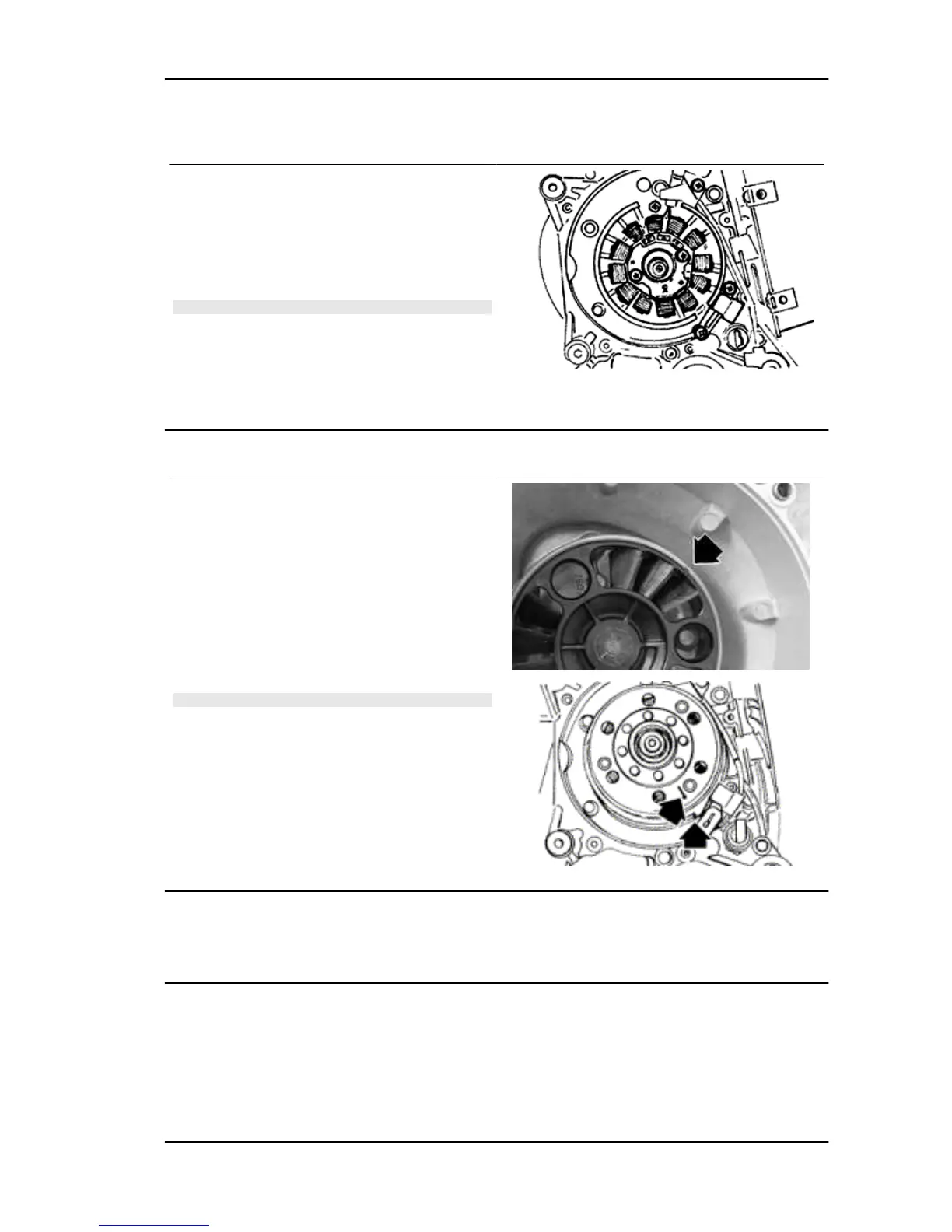

Refitting the stator
- Refit the stator and flywheel carrying out the re-
moval procedure in reverse, tightening the retain-
ers to the specified torque.
- Place the cable harness as shown in the figure.
- Stator screws and Pick-Up
N.B.
THE PICK-UP WIRE SHOULD BE POSITIONED BETWEEN
THE UPPER SCREW AND THE REFERENCE PIN AS
SHOWN IN THE DETAIL DRAWING.
Locking torques (N*m)
Stator assembly screws (°) 3 ÷ 4
Refitting the flywheel cover
- Place the flywheel with the top dead centre mark
aligned with the crankcase.
- Place the flywheel cover by aligning the reference
marks of the drive and the crankcase cover.
- Reassemble the cover on the engine, placing the
three connectors in the drive for the water pump.
- Carry out the steps in the reverse order from the
dismantling procedure.
CAUTION
TAKE CARE TO CORRECTLY POSITION THE FLYWHEEL
CONNECTOR. MAKE SURE THE CENTRING DOWELS ARE
PRESENT.
Flywheel and starting
- Check the integrity of the internal plastic parts of the flywheel and the Pick-Up control plate.
X8 125-200 Engine
ENG - 119
