Engine oil level
In 4-stroke engines, engine oil is used to lubricate the distribution elements, the bush-
es and the thermal group. An insufficient quantity of oil can cause serious damage
to the engine.In all four-stroke engines, a loss of efficiency in oil performance and
consumption should be considered normal. Consumption can particularly reflect the
conditions of use (i.e. when driving at "full acceleration" all the time, oil consumption
increases). The replacement frequencies provided for by the maintenance programme
are defined, depending on the total contents of oil in the engine and average con-
sumption measured following standardised methods.
In order to prevent any problems, we recommend checking oil level more fre-
quently than indicated in the Scheduled Maintenance table or before setting off
on long journeys. The scooter is, however, equipped with an oil pressure warn-
ing light on the instrument panel.

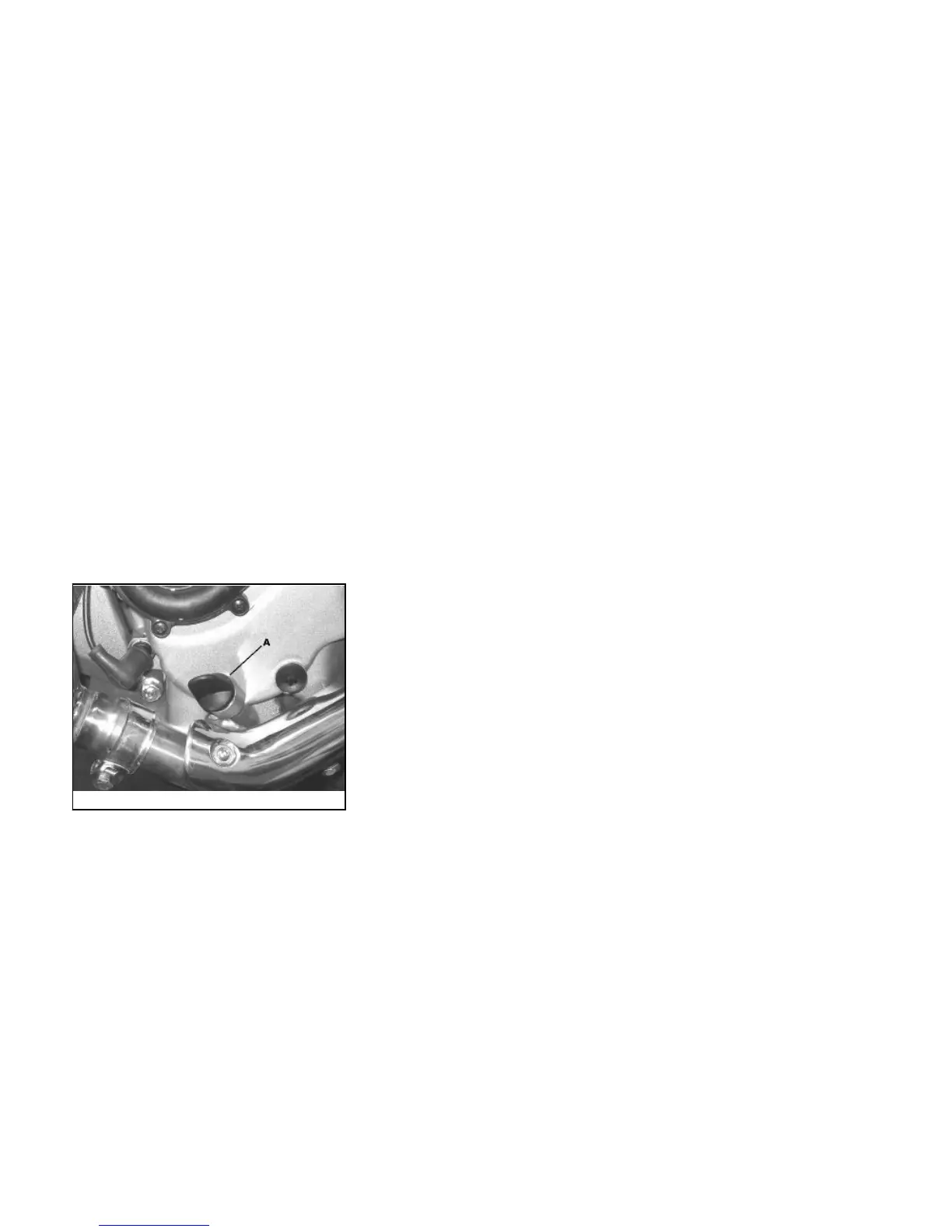

03_01
Engine oil level check (03_01, 03_02)
This operation must be carried out with the engine cold and following the procedure
below:
1) Rest the scooter on the central stand and on a flat ground.
2) Set the strut that regulates the position to its minimum height.
3 ) Screw off cap/dipstick «A», dry it off with a clean cloth and reinsert it, screwing
down completely.
4) Remove the cap/dipstick «A» again and check that the level is between the MAX
and MIN marks; top up, if required.
The MAX level as shown in the figure indicates that there is about 1700 cc of oil in the
engine. If the check is carried out after the vehicle has been used, and therefore with
a hot engine, the level line will be lower; in order to carry out a correct check it is
necessary to wait at least 10 minutes after the engine has been stopped, so as to get
the correct level.
