03_28
03_29

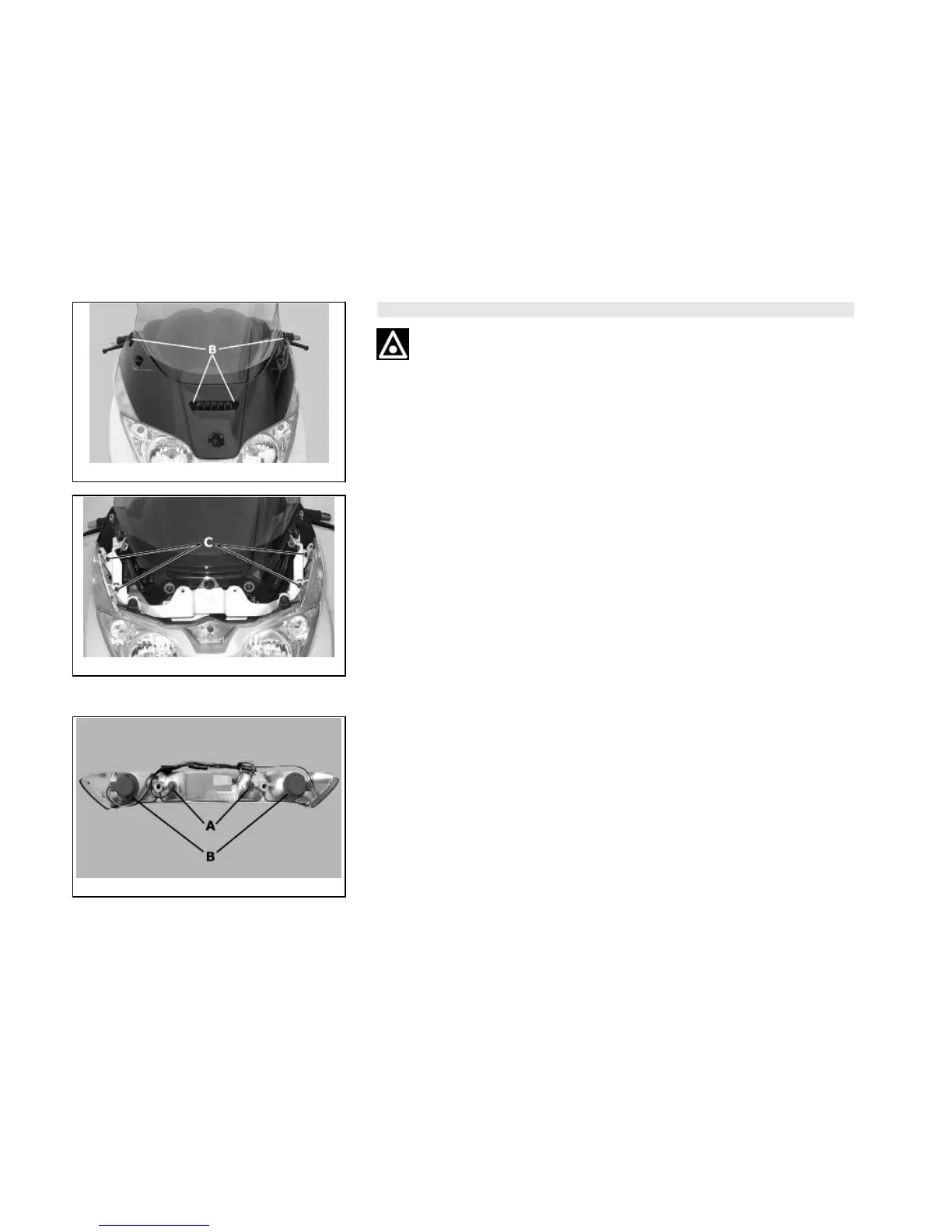

WARNING
HIGH AND LOW BEAM LIGHT ARE OF THE HALOGEN TYPE: DO NOT TOUCH
WITH YOUR FINGERS TO AVOID DAMAGING THEIR FUNCTION.
03_30
Rear optical unit (03_30, 03_31)
Open the rear flap (boot door), loosen the two fixing screws, "D", and remove the
taillight assembly from its housing.
Follow this procedure to remove the bulbs:
Side lights - Snap-on central bulb " A"
Stop lights - Side bulbs "B" in bayonet socket making a 30° clockwise turn.
68
