Electrical equipment
Fuses

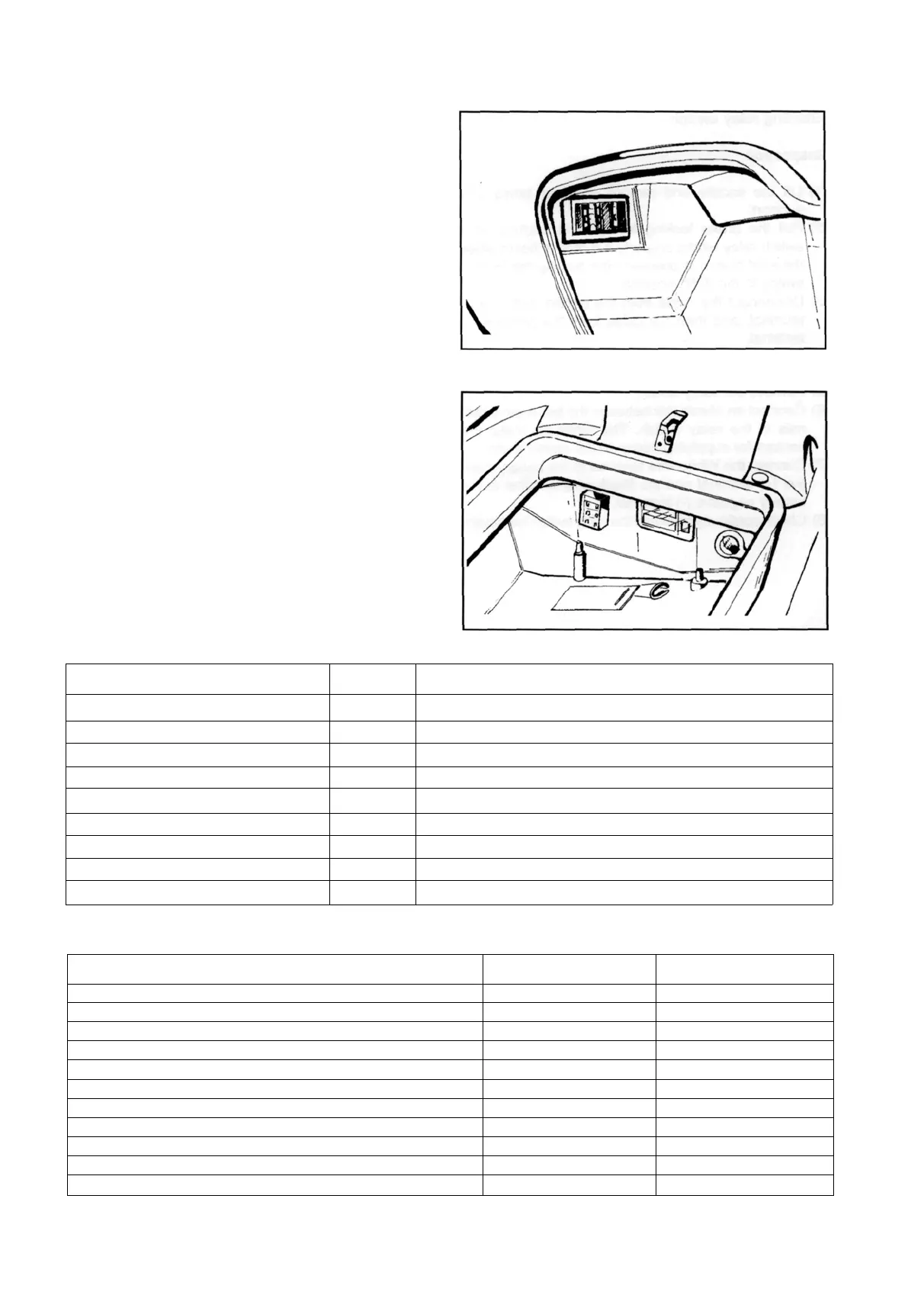

The electrical equipment is equipped with:
- 5 fuses protecting the electrical socket in the helmet
compartment.
- 4 fuses protecting the different circuits behind the
door in the left-hand rear section of the shield.
The table below shows the positions and specifications
of the fuses installed on the vehicle.
04 012
Warning - Before replacing a blown fuse, trace and
remove the fault that caused the blowing.
Never attempt to replace a fuse using a different mate-
rial (e.g. a length of wire) or a fuse having a greater
amperage than prescribed.
04 013
Fuse power supplty
30A Direct current
20A Direct current
15A Direct current
10A Direct current
10A Direct current
10A Direct current
7.5A Direct current
7.5A Direct current
7.5A Direct current
Position
A
A
B
A
A
B
A
B
B
Protected circuits
Main fuse (recharging)
Helmet compartment lamp, 12V socket
Accessories
Headlight
Headlight
Accessories
Digital instrument panel
Horn, parking light, digital/analogue instrument panel
Brake light, switch, side stand
List of bulbs
Function
Low beam bulb
High beam bulb
Front parking light bulb
Front turn indicator bulb
Rear light bulb
Brake light bulb
Rear turn indicator bulb
Instrument panel lighting bulb
Low/high beam warning light bulb
Glove compartment light bulb
Number plate light bulb
Type
halogen
halogen
all-glass
spherical
spherical
spherical
spherical
all-glass
all-glass
spherical
cylindrical
Power consumption
12V-35W
12V-35W
12V-3W x2
12V-10W x2
12V-5W x2
12V-2.3W x5
12V-10W x2
12V-1.2W x4
12V-1.2W
12V-5W
12V-5W
4-18
