X9 125-180CC4T4V
Electrical equipment
^
Fuses

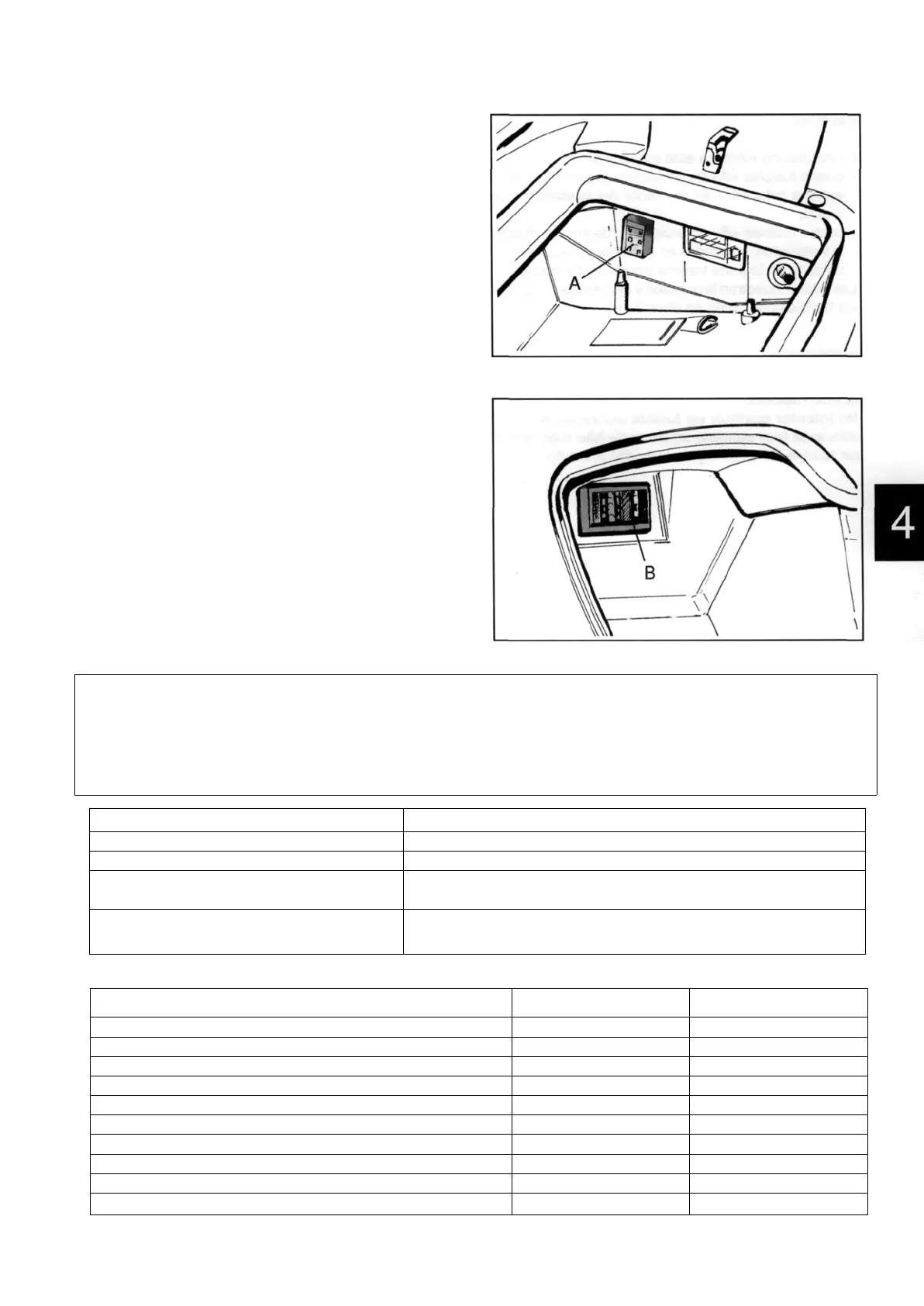

The electrical equipment is protected by:
- Fourfuses «A» protecting the external socket located
in the helmet compartment.
- Fourfuses «B» protecting the various circuits located
behind the door in the left rear part of the front shield.
The tables show the positions and specifications of the
fuses installed on the vehicle.
Warning - Before replacing a blown fuse, trace
and eliminate the fault that caused the blowing.
Never attempt to replace a fuse using a different
material (e.g. a length of wire) or a fuse having a
greater amperage than prescribed.
04 026
04 027
FUSE POWER SUPPLY
10
10
15
14
PROTECTED CIRCUITS
Digital analogue instrument panel
Low beams
Protection of recharge system, electronic control unit, electric
radiator, immobilizer diagnostic instrument socket
Accessory socket in undersaddle compartment,
undersaddle compartment lamp
List of bulbs
Function
Low beam bulb
High beam bulb
Front parking light bulb
Front turn indicator bulbs
Rear light/brake light bulbs
Brake light bulbs
Rear light/brake light bulbs
Rear turn indicator bulbs
Glove compartment lamp
Number-plate light bulb
Type
halogen
halogen
all-glass
spherical
spherical
spherical
spherical
all-glass
spherical
cylindrical
Power consumption
12V-55W
12V-55W
12V-5WX2
12V-10WX2
12V-5WX2
12V-2,3Wx5
12V-10Wx2
12V-2WX5
12V-5W
12V-5W
1st Update to part no. 594599 X9 125-180 cc 4T 4V 4 - 53
Primera actualización dib. 594599 X9 125-180 cc 4T 4V
1 ' Atualização Des. 594599 X9 125-180 cc 4T 4V
FUSE POWER SUPPLY PROTECTED CIRCUITS
7.5 Number-plate light, front and rear parking lights
10 Immobilizer diagnostic instrument socket
10 Horn, high beam, interphone socket
5 Brake lights, start inhibitor system
