X9 125-180 CC4T4V
Specifications

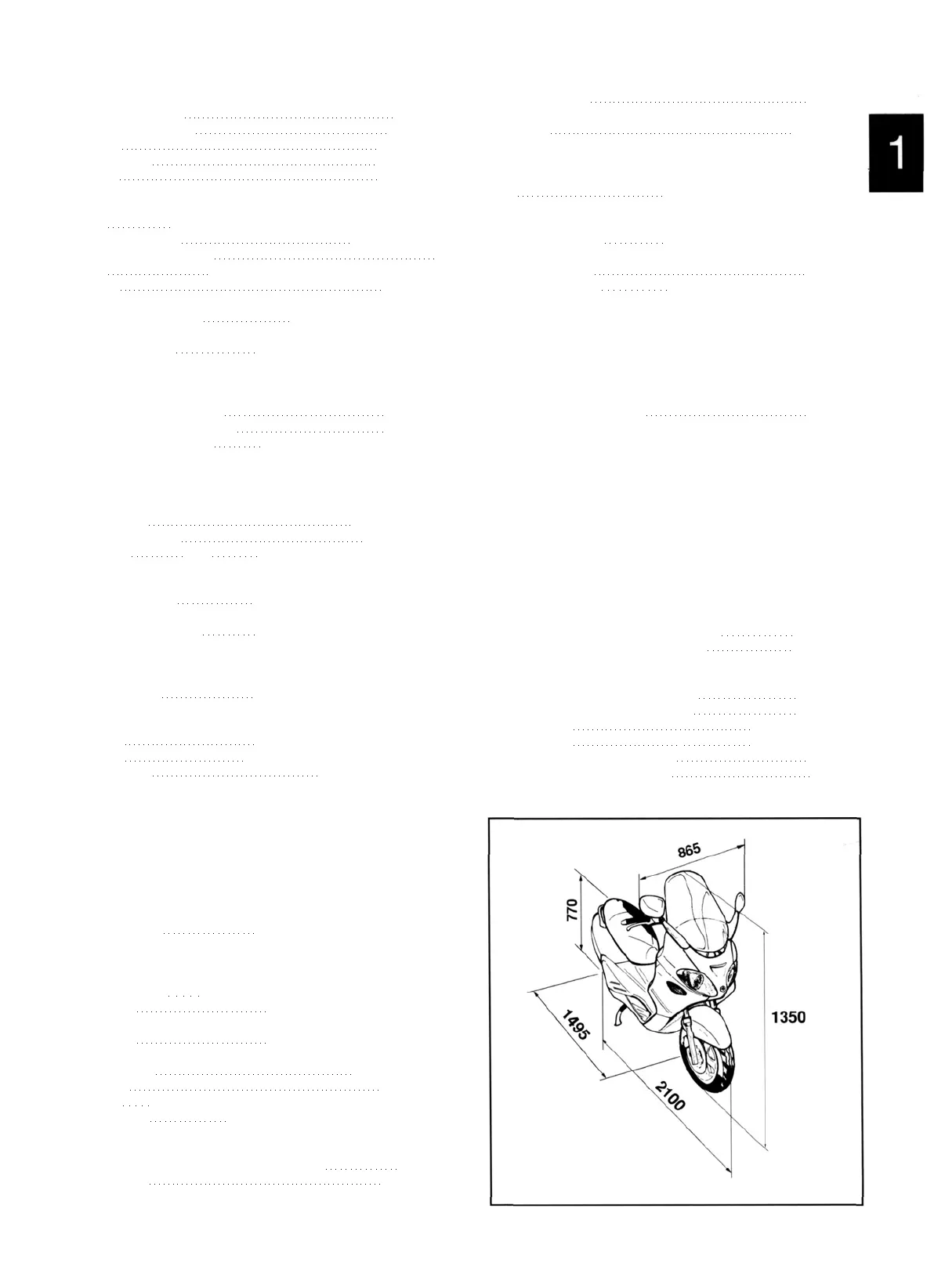

WEIGHT AND DIMENSIONS
Total dry weight 159 Kg
Width (at mirrors) 865 mm
Length 2100 mm
Wheelbase 1495 mm
Height 1350 mm
ENGINE
Type Single-cylinder, four-stroke, four-valve.
Cooling system Liquid cooled
Number of cylinders 1
Bore 57 mm (125 cc); 69 mm (180 cc)
Stroke 48.6 mm
Displacement .. 124.2 cm
3
(125 cc); 182 cm
3
(180 cc)
Compression ratio 11.5 + 13 :1 (125 cc)
11.5+ 12.5: 1 (180 cc)
Timing system Single overhead camshaft
driven by chain on left side,
three-arm rockers with
threaded adjuster.
Play of valves: intake 0.10 mm
exhaust 0.15 mm
Walbro Carburettor WVF7C 0 29 mm (125 cc)
WVF7D 0 29 mm (180 cc)
(Identification letter may be
changed every time carbu-
rettor is updated).
Idle speed 1650±50 rpm
CO adjustment 3.8 ± 0.7 %
Air filter ,
Λ
..,, Sponge impregnated with
jr 50% oil (Selenia Air Filter oil)
and 50% unleaded petrol.
Starter system electric starter motor (180 cc
engine with torque limiter).
Engine lubrication lubrication with chain driven
lobe pump in crankcase,
mesh strainer and cartridge
filter.
Fuel system by carburettor, with electric
fuel pump.
Max. power (crankshaft):
125 cc 11 kW (15 HP) at 9700 rpm
180 cc 14.7 kW (20 HP) at 8500 rpm
Top speed 104 Km/h (125 cc)
118 Km/h (180 cc)
ELECTRICAL COMPONENTS
Ignition type Electronic capacitive dis-
charge system with separate
HT coil.
Spark advance
(before TDC) variable, microprocessor-controlled
(125 cc) from 10° ± 1° at 2000 rpm
to 34° ± 1 ° at 6000 rpm
(180 cc) from 10° ± 1° at 2000 rpm
to 32° ± 1 ° at 6000 rpm
Spark plug NGK CR 8 EB
Battery 12V-12Ah
Fuses N2 10A, N2 15A, N2 10A, N1 7.5A, N1 5A
Generator three-phase alternating current.
CAPACITIES
Fuel tank (including -2.5 I reserve) ~ 14.5 I
Engine oil ~ 1000 cc
(recommended oil: Selenia HI Scooter 4 Tech)
Cooling system ~ 1.2 It
(Recommended fluid: diluted PARAFLU 11FE)
Rear hub ~ 150 cc
(recommended oil: TUTELA ZC 90)
FRAME AND SUSPENSION
Type Welded steel tubing with
pressed steel reinforce-
ments.
Front suspension hydraulictelescopicforkwith
0 35 mm rod.
Front fork travel 94 mm
Rear suspension Rear engine suspension
functioning as double-sided
swingarm pivoting on frame.
Double-acting hydraulic
shock absorbers, variable-
pitch coaxial spiral spring
with 4-position preload ad-
justment.
Rear wheel max. travel 93 mm
BRAKES
Front (right side).
Combined.
. Disc brake, diameter of 240
mm with hydraulic linkage
(right-hand brake lever) 0
34 mm single-piston caliper
dual disc 0 240 (front left
and rear) with hydraulic con-
trol operated by left-hand le-
ver on handlebar. The sys-
tem is slave to a pressure-
distributing valve 0 32 mm
single-piston caliper.
Front sx 0 32 mm
Resar 0 32 mm
WHEELS AND TYRES
Lightweight alloy wheels: front 3.50x14"
rear 3.50x14"
Tyres: front 120/70-14" 55P
rear: * 140/60-14" 64P
Tyre pressure (cold): front: 2.1 bar
rear: 2.3 bar
(2.5 bar with driver and luggage)
01
1 st Update to part no. 594599 X9 125-180 cc 4T 4V 1 - 1 9
Primera actualización dib. 594599 X9 125-180 cc 4T 4V
1 · Atualização Des. 594599 X9 125-180 CC 4T 4V
