X9 125-180 CC 4T4V
Maintenance

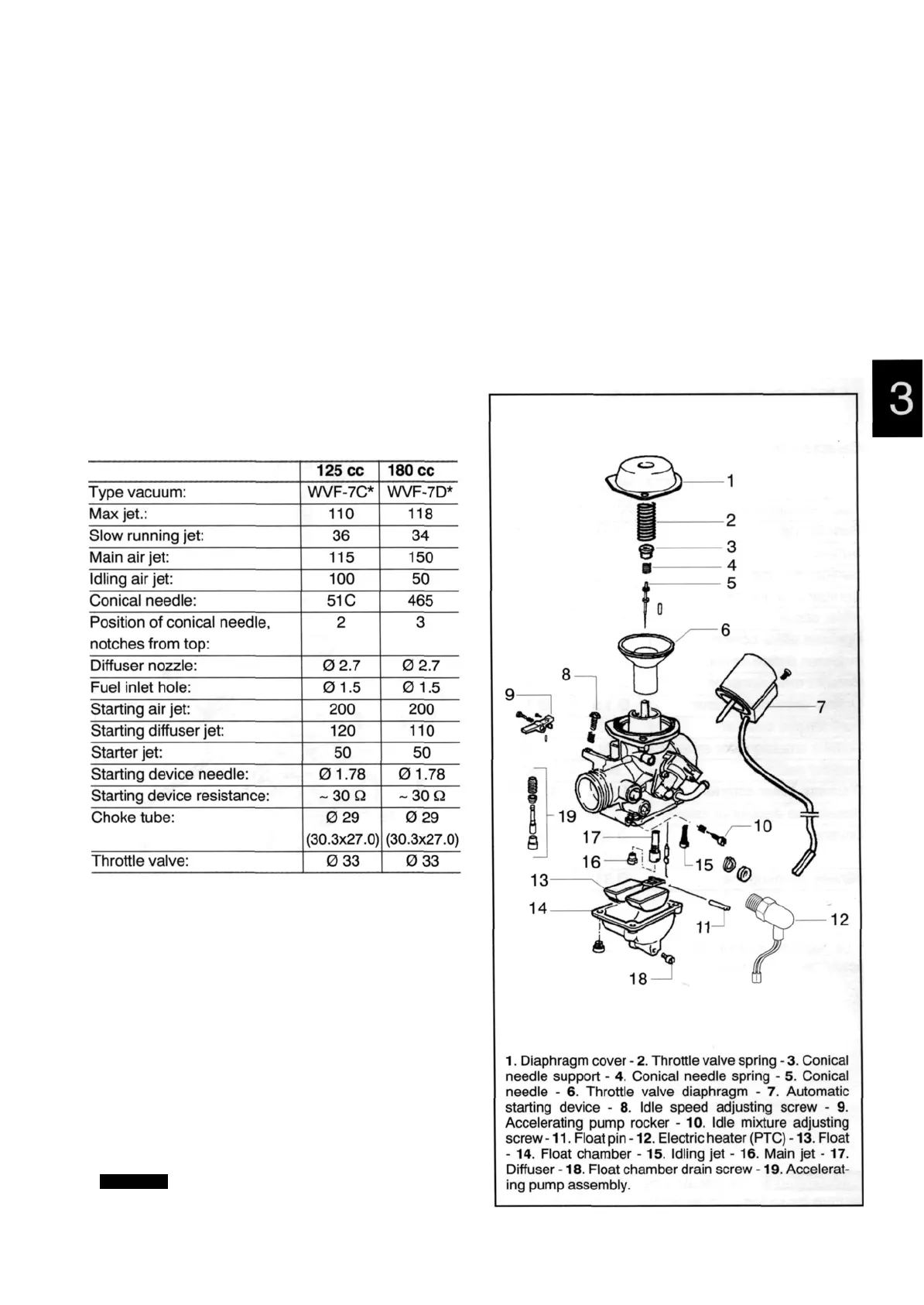

Carburettor
- Disassemble all carburettor components, accurately
wash them in solvent, then dry them with compressed
air. To ensure thorough cleaning, pay special atten-
tion to the passages in the carburettor body.
- Carefully check the condition of all components.
- The throttle must slide freely in the chamber, if the
play is excessive because or wear, replace the throt-
tle.
- Replace the carburettor if the chamber shows signs of
wear as to prejudice the valve's regular seal or free
sliding (though it is new).
- When reassembling the carburettor, it is a good rule to
replace the gaskets.
Characteristics:
* Identification letter may be changed every time
carburettor is updated.
Caution
| - Petrol is highly explosive. Always fit new
seals and gaskets to prevent leakage.
03 001
1st Update to part no. 594599 X9 125-180 cc 4T 4V 3 - 33
Primera actualización dib. 594599 X9 125-180 cc 4T 4V
1 ' Atualização Des. 594599 X9 125-180 cc 4T 4V
