Data test cable instructions
This cable is easy to make, just follow the instructions below.
Note: You will need the following tools and parts to make this cable.
• Wire strippers/crimpers
• A razor blade
• 2- Butt splice terminals (red)
• Soldering iron (optional)
1. Clip an 8” data cable in half.
2. Remove 1.5” (38mm) gray insulation from wires.
3. Clip off all wires except the 2 in the picture.
• Note that the lock tab of plug is facing up and the 1
st
and 3
rd
(from the left- as in picture) are
the 2 wires you want to keep.

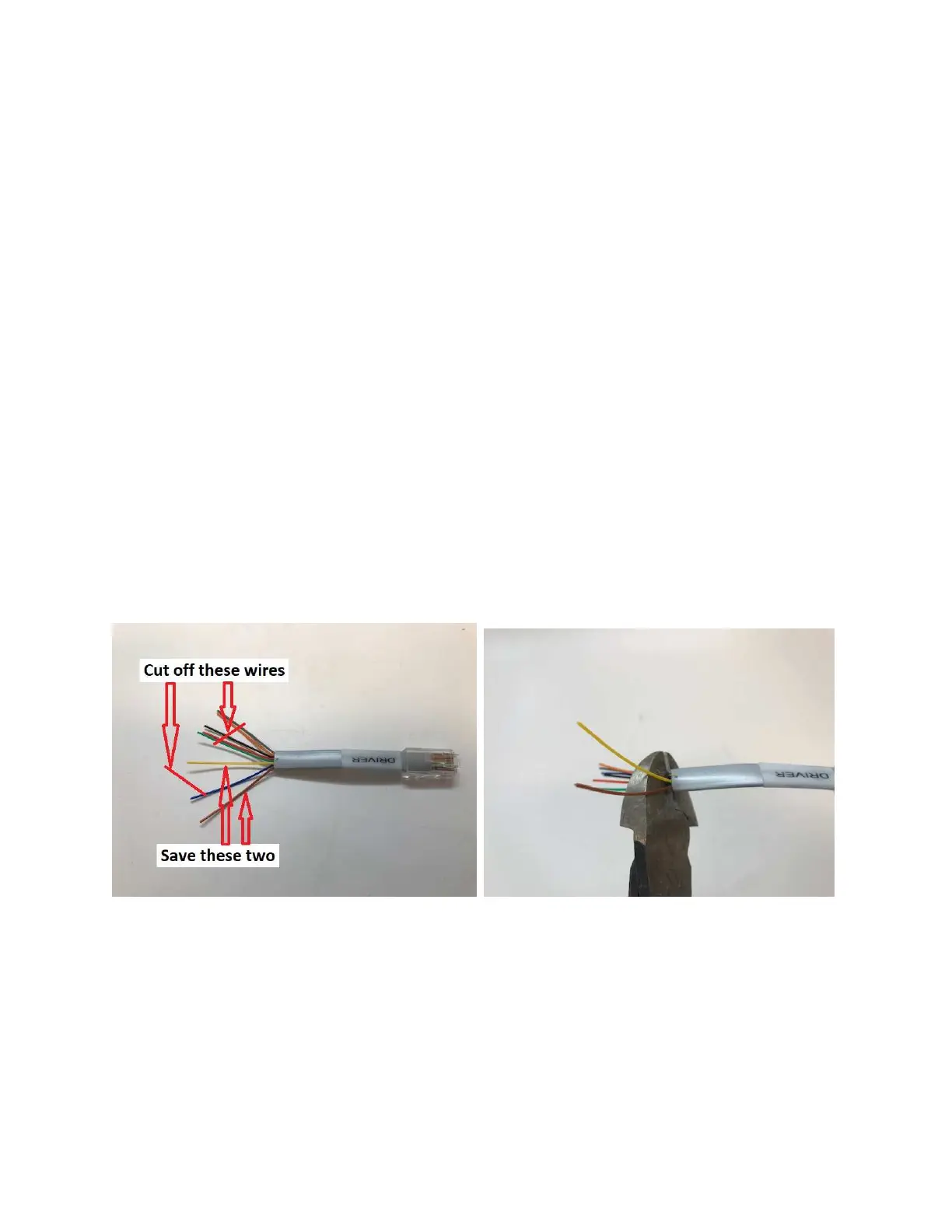

Identifying wires to cut and save Cutting off unused wires
(Continue on next page)
