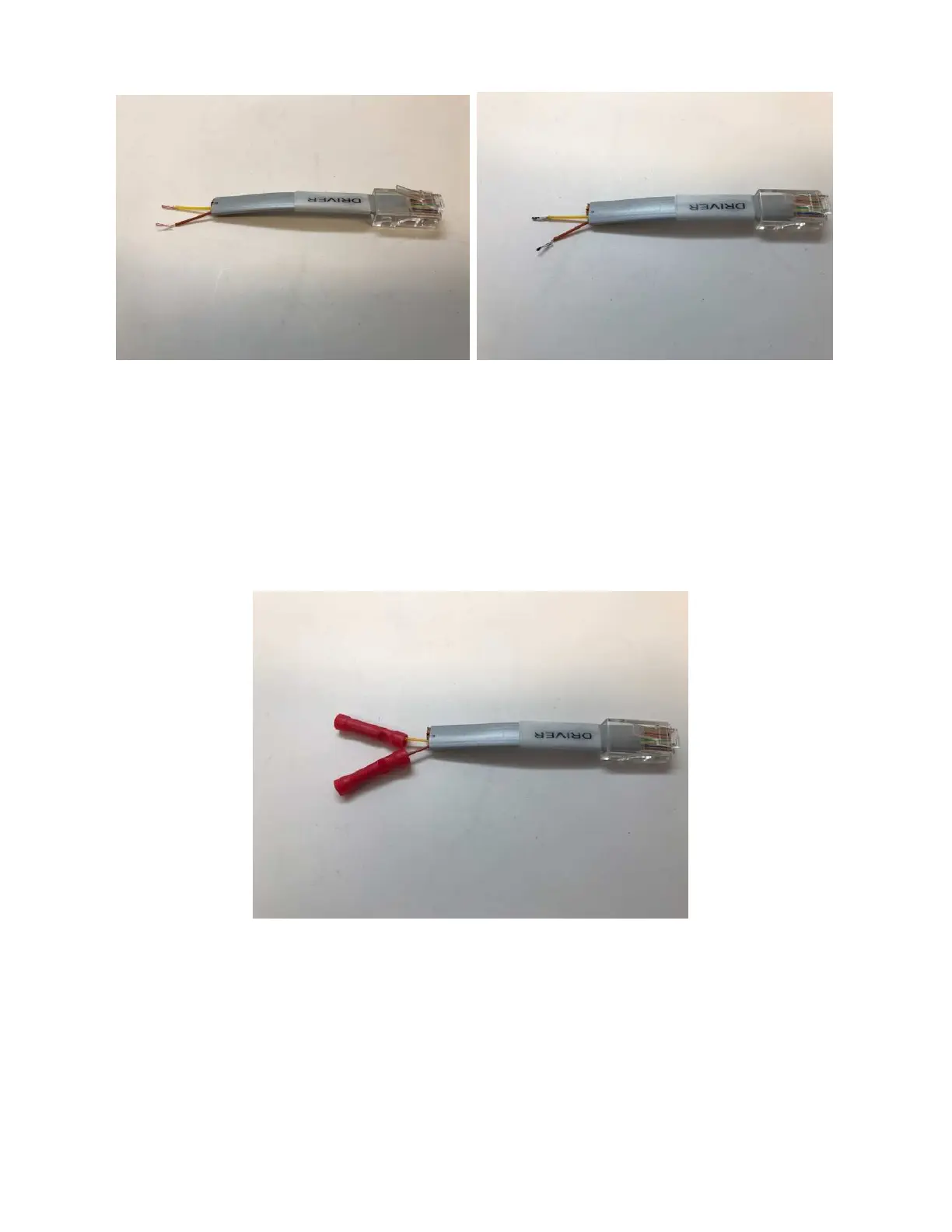

Strip insulation off wires fold in half Tin wires with soldier
4. Remove ¾” (19mm) insulation from each wire, twist wires and then fold over each wire in half
to create a larger area.
5. Now, if you have a soldering iron, tin each wire.
6. Place a (red) butt splice terminal on each wire and crimp to wire. This will protect from shorting
when testing. (See picture below)
Butt splice terminals installed
