1 .4 Fresh air intake - Fig. 12 - 15
The stove/fireplace must have the necessary air available to ensure
proper combustion.
- Make sure that the room in which the stove/fireplace is to be
installed has an air intake of at least the size indicated in the
paragraph “Technical data”.
- The fresh air intake may be protected by an external grille provided
it does not reduce the minimum section of the recommended
airflow and is in a position whereby it cannot be obstructed.
The air necessary for the fire may be obtained in different ways:
- through an external grille direct to the room of installation (Fig. 12);
- with ducting through pipes direct to the room of installation,
increasing the recommended minimum free cross section by at
least 15% (Fig. 13);
- through a communicating hole from an adjacent room to the place
of installation: this system may only be used if the air flows freely
from the outside through fixed apertures (Fig. 14);
- from an adjacent room to the place of installation, but only if the air
flows freely through apertures communicating with the outside
(Fig. 15).
DT2030054-00

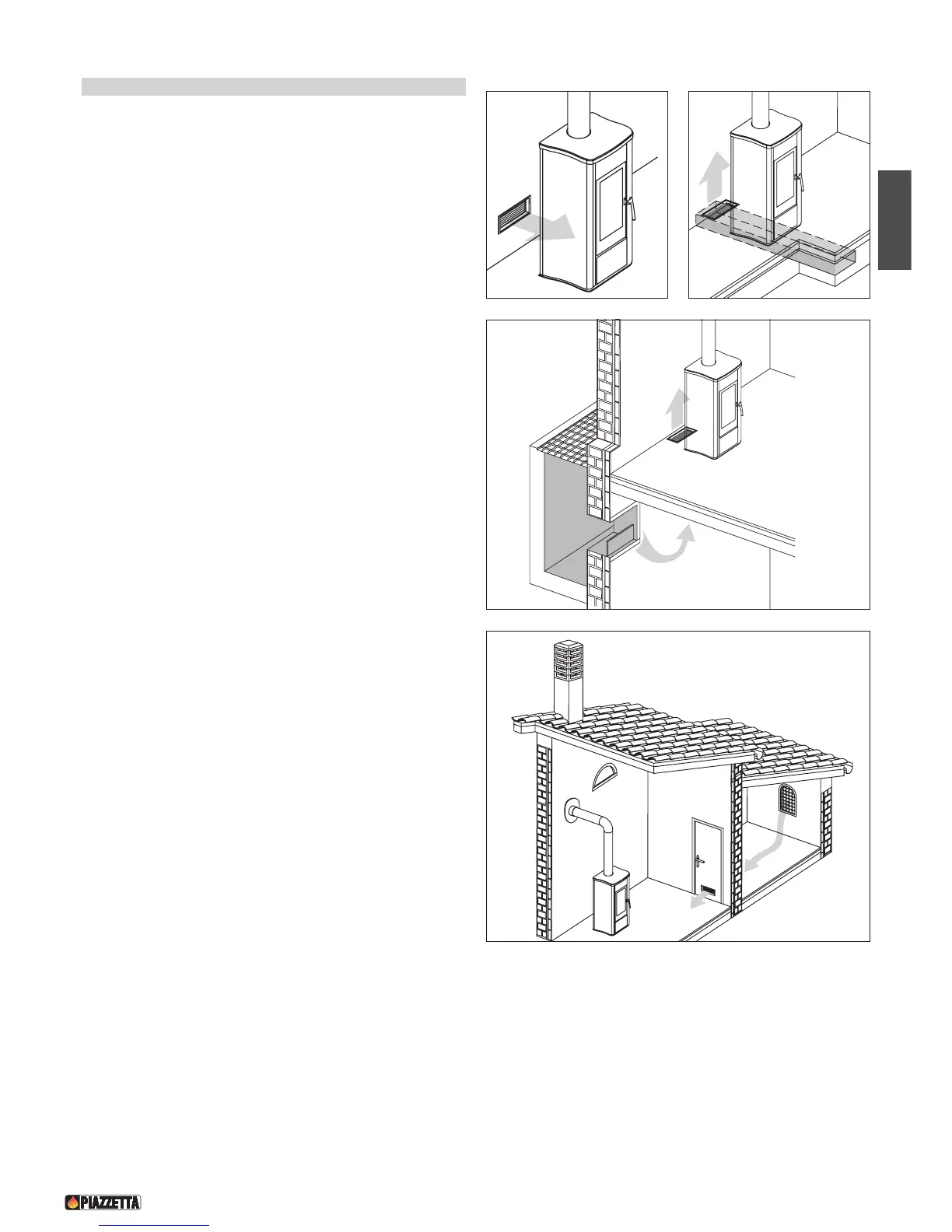

Fig. 12
DT2030194-00
Fig. 14
DT2030195-00
Fig. 15
DT2030193-00
Fig. 13
