PROGRAMMABLE POTENTIOMETER MODULE 40-296
pickering
SECTION 1 - TECHNICAL SPECIFICATION
SECTION 1 - TECHNICAL SPECIFICATION
pickeringtest.com
PXI Programmable Resistor Module 40-295/296
ISSUE 10.0 APR 2018
• Highest Density Resistor Module
• 8, 12, 16 and 24-Bit Versions
• Up To 18 Channels of 8-Bit Resolution
• Up To 10 Channels of 16-Bit Resolution
• Provides Fully Isolated Variable Resistors
• Available As Adjustable Resistor or Potentiometer
• Built-In Non-Volatile Memory For Calibration Data
• Uses High Reliability Pickering Reed Relays For
Maximum Performance
• Up to 2000 Value Changes Per Second
• Special Versions With Non Standard Resistors Built
To Order
• VISA & Kernel Drivers Supplied for Windows
Plus Soft Front Panel
• Supported by PXI or LXI Chassis
• 3 Year Warranty

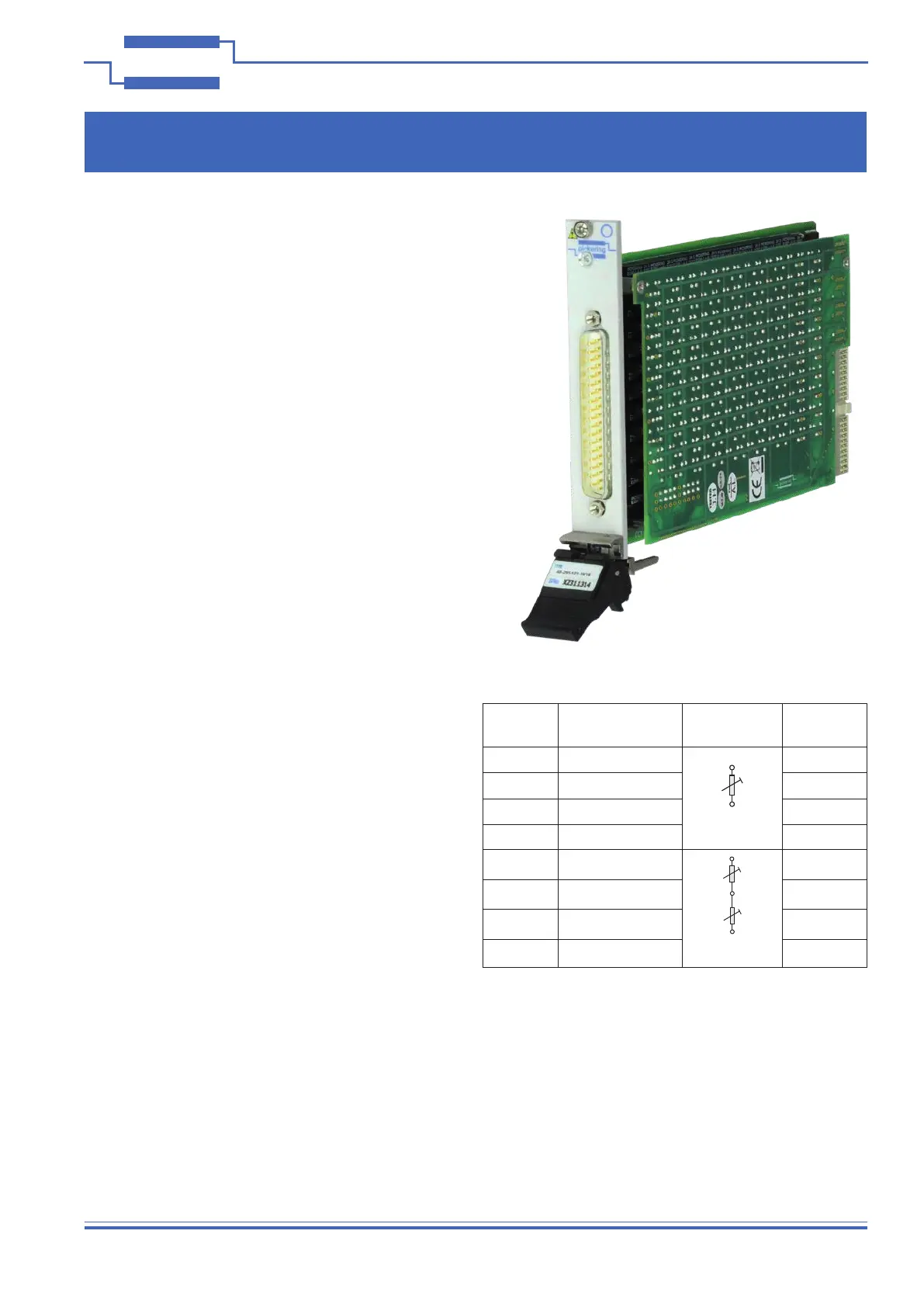

The 40-295 is a programmable resistor module with up to 18
resistor chains with 8-bit resolution in a single PXI module. The
module to can also be supplied in 12, 16 or 24-bit resolution
versions for applications requiring ner resolution, greater
resistance range or higher channel count. The module is ideal
for simulating sensors for control and management systems, or
verifying system response in design verication or manufacturing
test.
The 40-296 version is wired as a potentiometer with two end
connections and a wiper.
The model is available with a variety of channel counts to allow
the user to choose the lowest cost solution for their application.
Versions with other resistance values can be provided to meet
specic requirements. This includes the tting of an offset
resistor to set the minimum resistance. If versions are required
with different resistance ranges, please contact the Pickering
Interfaces’ Sales Ofce for assistance.
All switches are instrument grade reed relays with low thermal offset
voltage to ensure operation under all conditions and a long service life.
The module is supplied with VISA drivers and a soft front panel.
Programmable Resistor Module Options Overview
Resolution Resistance Range Conguration
Number Per
Module
8-Bit 0Ω to 255Ω
Resistor
10 or 18
12-Bit 0Ω to 4kΩ 5 or 10
16-Bit 0Ω to 65kΩ 5 or 10
24-Bit 0Ω to 16MΩ 3 or 6
8-Bit 0Ω to 255Ω Wiper
Potentiometer
5 or 9
12-Bit 0Ω to 4kΩ Wiper 2 or 4
16-Bit 0Ω to 65kΩ Wiper 2 or 4
24-Bit 0Ω to 16MΩ Wiper 1 or 3
