PIEGA P SUB 4

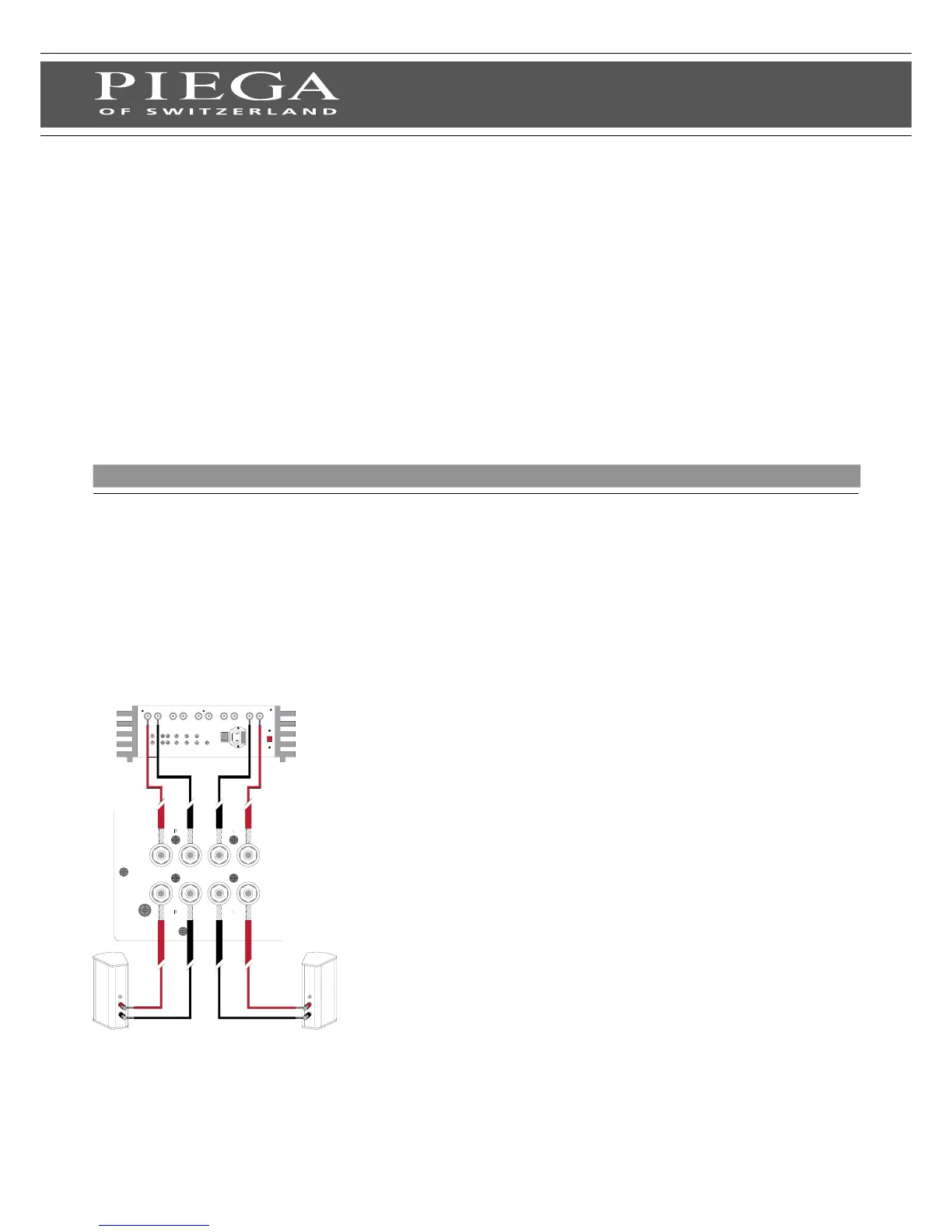

Conguration example for stereo mode
Loudspeaker terminals on the subwoofer
Commonly used conguration in stereo mode with the loudspeakers (parallel) connected to the subwoofer. Refer to the appropriate
manual for information about operation and connection options for your stereo amplier.
Benet:
Frequently used conguration in stereo mode
>Simple and durable cabling...!
Connection:
>Connect the P SUB 4 subwoofer cable to your stereo
amplier at the terminal marked SPEAKER (or similar)
>Connect up the loudspeakers parallel to the subwoofer
>For this use suitable loudspeaker cables, if necessary with
banana plugs (not supplied)
Connecting the System
Rear R Center Rear L
L
R
Front R Front L
Speaker L
Speaker R
230V
POWER
ON
OFF
T3. 15AL250V FOR 230V INPUT
T5AL250V FOR 115V INPUT
115/230V - 50/60HZ 500W
HI LEVEL OUTPUT
HI LEVEL INPUT
Amplifier
