Pike MIRacle User Manual

PN 350-007660-07 P a g e | 1
Introduction
Designed for use with PIKE Technologies’ MIRacle or GladiATR ATR, the Digital Force Adapter option
provides a real-time measurement of the applied force on the sample. It is ideal for end-users that
require controlled pressure capabilities.
The Digital Force Adapter attaches to the High-Pressure Clamp of either the MIRacle or GladiATR. It
consists of an embedded load cell, which exhibits high linearity and exceptional reproducibility. To
accommodate various sample types, the adapter accepts all press tips originally shipped with the High-
Pressure Clamp (flat, swivel, or concave press tip). The magnitude of applied force is displayed on an
external easy-to-read LCD monitor in units of kilogram-force (kg
f
). Installation is easily performed by the
accessory user.

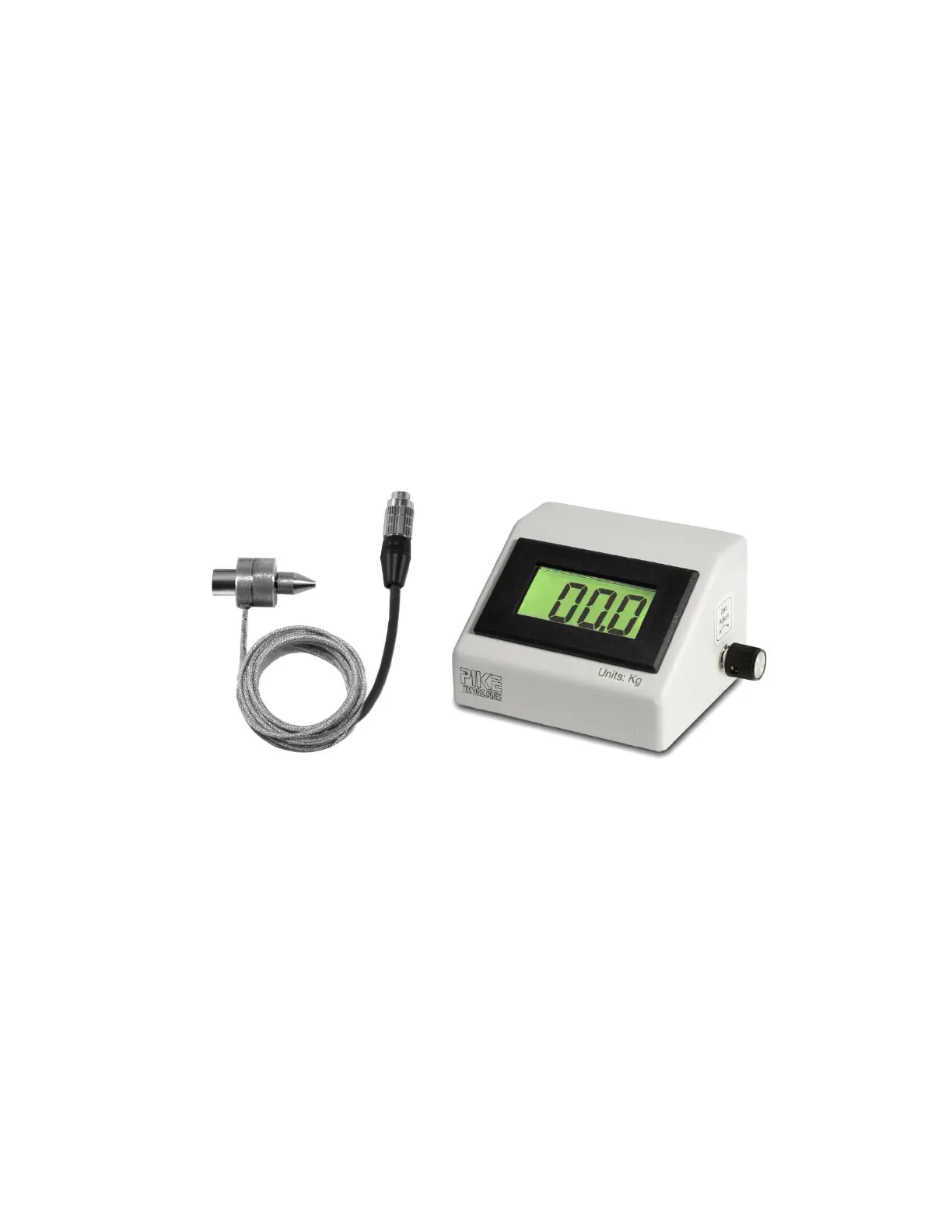

Digital Force Adapter with LCD Monitor
