DRAIN VALVE
RINSE PORT
A
B
WATER DRAIN
HANDLE
NOTE:
VACUUM TOILET
ASSEMBLY
SHOWN STOWED
A
B
ICN-PC24-A-A150000-A-S4080-00708-A-000-01

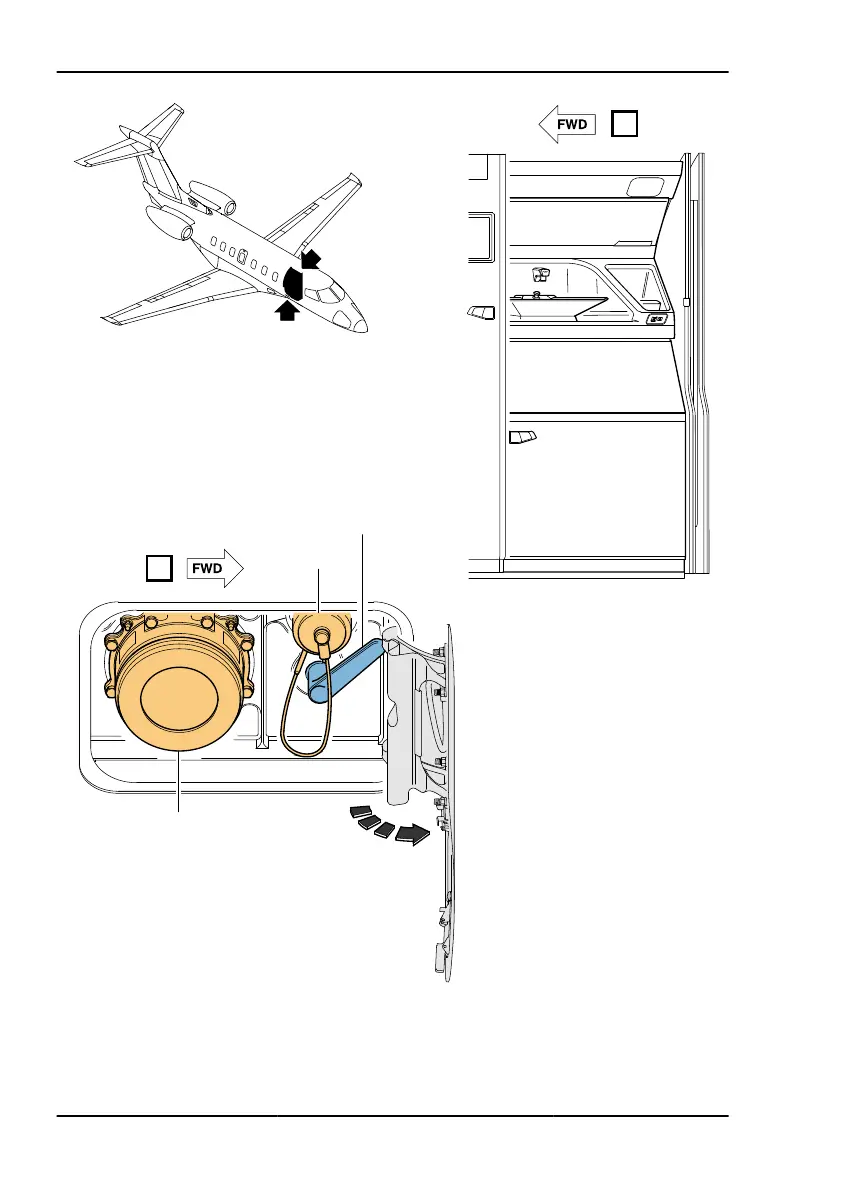

Figure 2-7-1: Vacuum Waste System - Component Location
