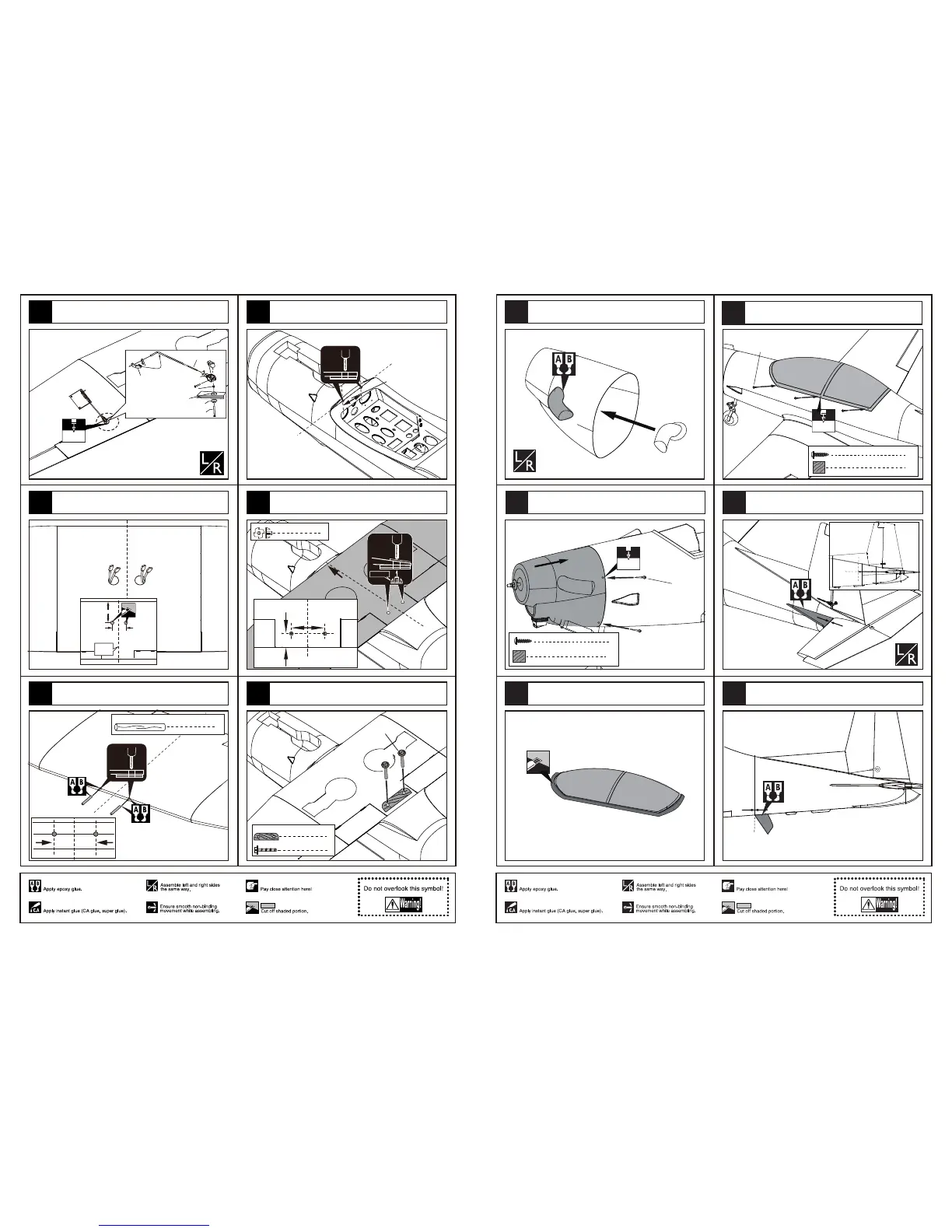

Pilatus PC-9 - Page 6

Screw(6x50mm)
6mm
2
Wood dowel (6x50mm)
80mm
Epoxy the dowel on the leading edge of wing.
Trim two holes to pull the servo extension
lines and fuel tube from the holes.
200mm
50mm
Center
line
Secure the servo.Install the nylon control horn
and connect the linkage.
3mm
Rod (2x300mm)
Clevis
Washer(3x15mm)
Washer
Lock Nut (3mm )
Screw (3x35mm)
Retainer
Drill holes in the fuselage for installing the wings.
Drill holes in the appropriate position through the wing
to fuselage,set blind nut in the fuselage.
Put the reinforcement plate on the holes and fix the
wings to the fuselage with screws as illustration.
80mm
6mm
7.2mm
Blind Nut
30mm
100mm
2
Blind Nut (6mm)
2
Screw(6x50mm)
Reinforcement Plate
1
4
21
20
19
16
18
17
1.5mm
4
TP Screw (2.3x8mm)
Ply (15x15x3mm)
4
TP Screw (2.3x8mm)
Epoxy plies under the canopy and assemble the
canopy to fuselage with screw.
Epoxy the plies under the cowing in fuselage and assemble
the cowing to fuselage with TP screw.
Trim the canopy along the shaded line.
Epoxy the exhaust to the cowling from lnner.
1.5mm
6
TP Screw (2.3x8mm)
Ply (15x15x3mm)
6
TP Screw (2.3x8mm)
Epoxy the PVC decoration parts to appropriate position
between the fuselage an s illustration.
Epoxy the decoration parts to appropriate position in the
fuselage as below.
13
69
65
67
64
66
68
