Pilot Communications PBAT-61 User Manual

3

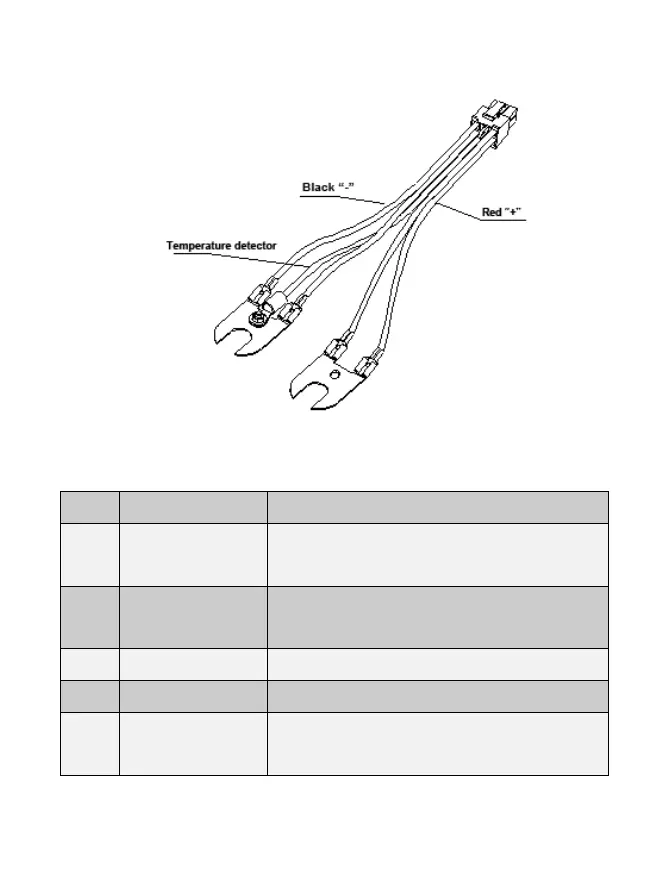

Note: wire length 30cm
2.1.3 The main terminal definitions
NO
Symbol
Definition
1
V- Bat
Negative power supply, connected directly with the
battery negative pole.
2
V- Sense
a
Measuring input of the voltage, connected directly with
the battery negative pole. It contacts with V-Bat.
3
PTC
Temperature sensor input
4
PTC
Temperature sensor input
5
V+ Sense
a
Measuring input of the voltage, connected directly with
the battery positive pole. It contacts with V+ Bat.
