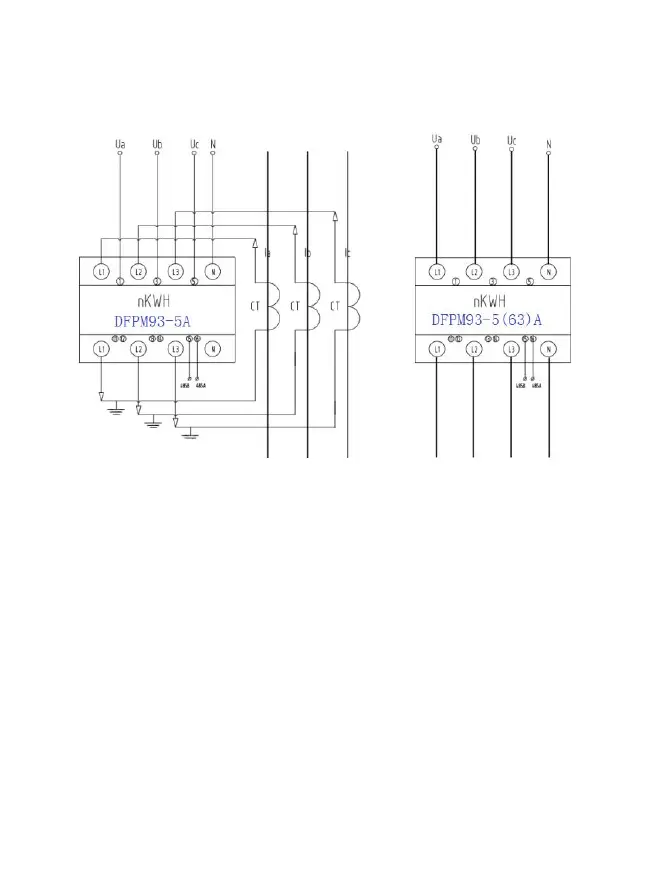

Fi
gure 5-2 Current transformer connection type Figure 5-1 Direct connection type
Note:
(1) For both 5(6)A and 5(63)A model, terminal 11, 12 and terminal 13, 14 can be set
as pulse output port of kWh or kvarh. And pulse constant is settable.
(2) All Pulse output port are passive pulse output, power supply range 5~30Vdc.
(3) Terminal 15,16 is 485 communication terminal, 485B:485-, 485A:485+
(4) One bus is not recommended to connect more than 30pcs DFPM93, the total
length of the communication line is not recommended more than 800 meters
