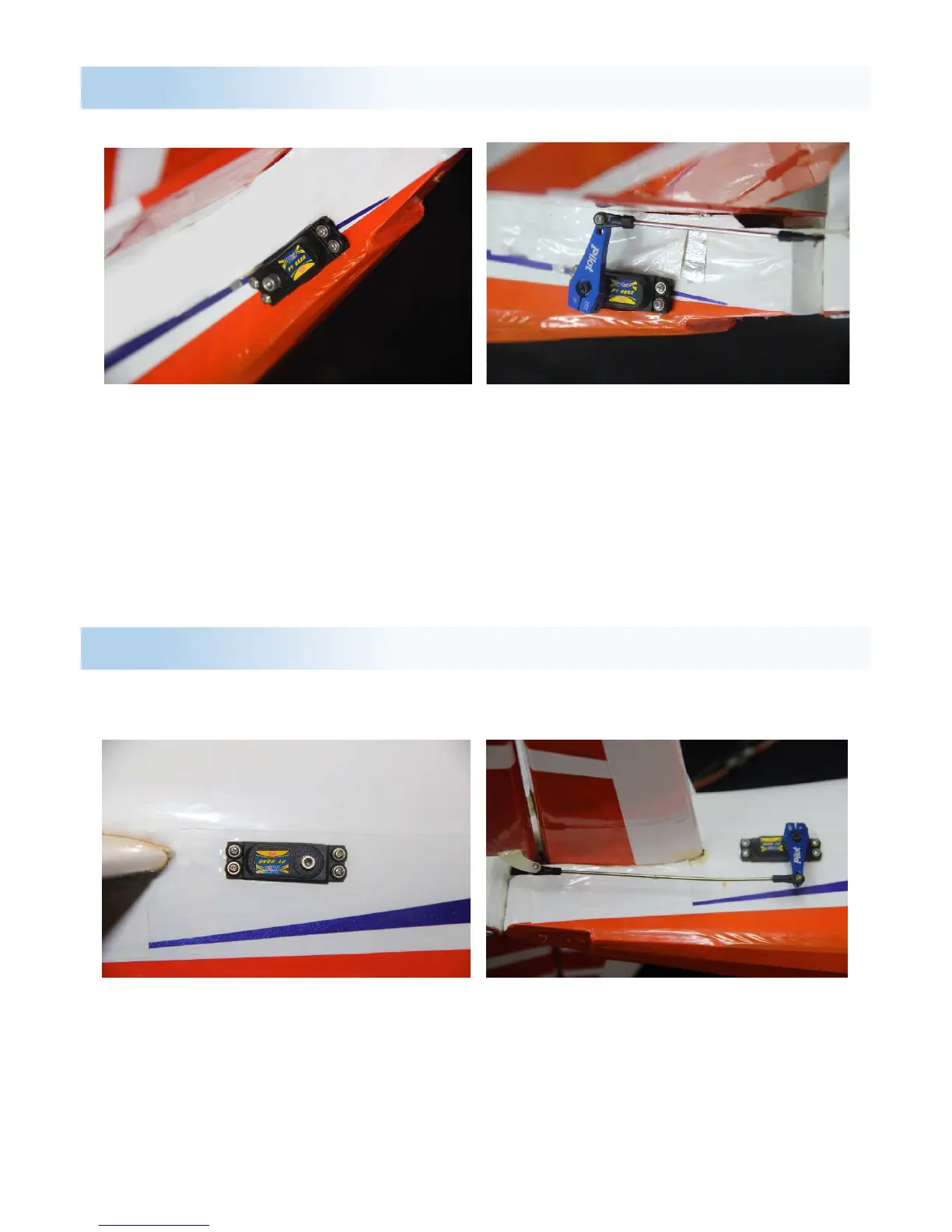

Rudder Servo Installation:
Install and glue the included hinges.
Locate and cut the covering where the servo will be installed, at the rear of
the fuselage, under the elevator.
Route the servo wire through the wing and screw the servo in place.
Centre the servo with your transmitter, attach the servo arm and connect the
servo to the ailerons with the pushrods provided.
Elevator Servo Installation:
Install and glue the included hinges.
Locate and cut the covering where the servo will be installed, at the rear of
the fuselage, under the elevator.
Route the servo wire through the wing and screw the servo in place.
Centre the servo with your transmitter, attach the servo arm and connect the
servo to the ailerons with the pushrods provided.
