Pilot RC Extra 330SC - Motor Installation

Motor Installation:
Place the cowl on the model and measure the gap between the firewall and
motor hub/spinner position.
Follow the laser diagram on the firewall to drill the necessary holes for the motor.
These are designed for use with the Pilot-RC CC15 motor. If using a different
motor, hole position may vary.

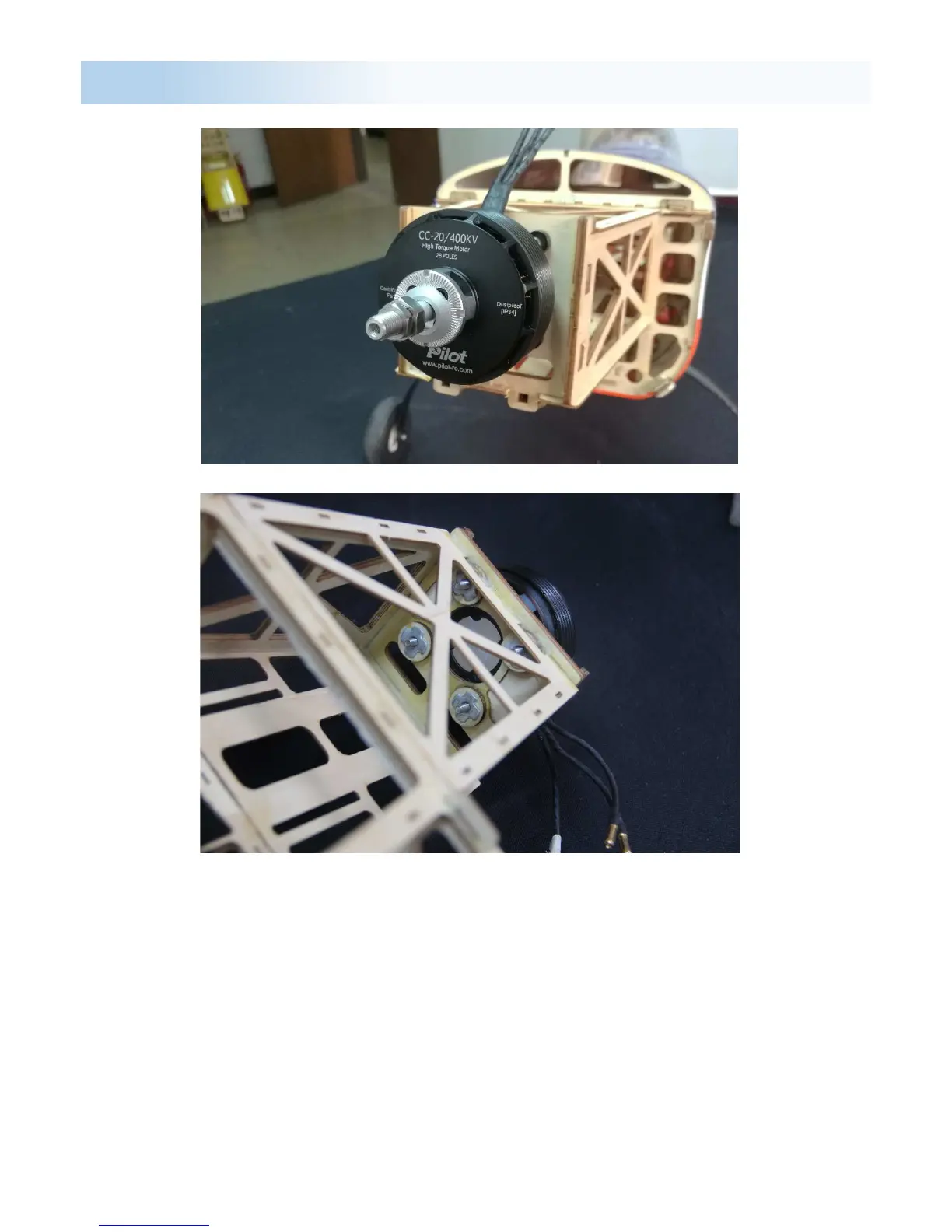

Check if your engine requires any standoffs in order to reach the necessary
position, before attaching permanently to the model using bolts and blind nuts
as per the images.
Secure your ESC to the firewall close to the motor, we recommend on top of the
firewall however this may vary depending on your installation.
