Pima FORCE User Manual

FORCE Alarm System User Guide
6 PIMA Electronic Systems
Chap. 2 Keypads
2.1 KLT/KLR500
FORCE’s LCD keypads are the KLT500 with touch keys, and KLR500 with rubber keys. Both
keypads connect to the control panel’s bus and have 7-line LCD screen with a graphic display.
2.1.1 Main features
 Graphic LCD screen
 4 system status LEDs
 Uses PIMA proprietary communication protocol
 Box tamper
2.1.2 Technical specifications
 Screen size: 128X64 pixel
 Communication voltage levels: 0, +12V
 Operating Voltage Range: 9-14 VDC
 Current Consumption: 50mA idle, 90mA max.
 Sizes: 15 x 12 x 2cm
 Weight: 235gr
 CE compliance
 Operating Temperature: -10 to +55°C
2.1.3 Quick guide

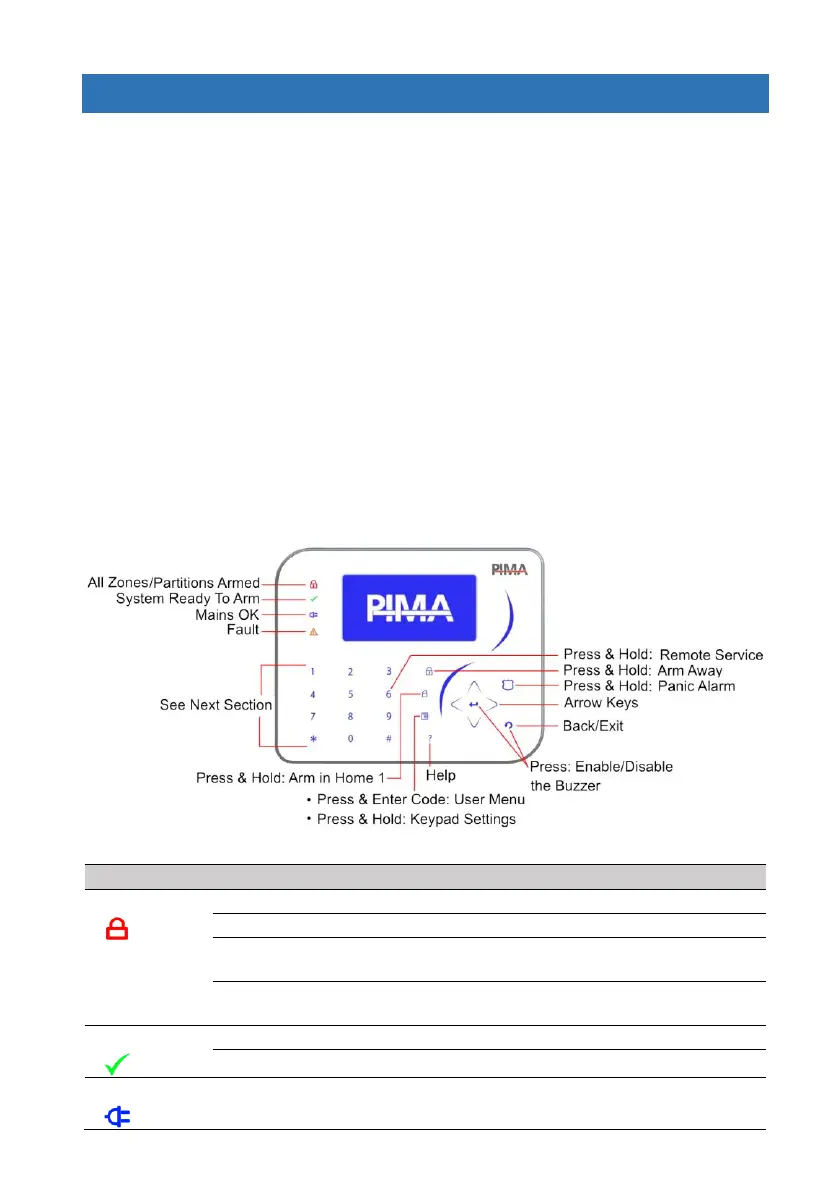

Figure 1. KLR/KLT500 keypad keys
LED
Type
Status
Indication
Red
Arm
Steady On
System armed Away or in Home/All partitions are armed
Off
All zones/partitions are disarmed
Flashes once
every 1 second
Exit delay in progress (including in a partition)
Flashes once
every 2 seconds
One or more partitions are armed
Green
Ready
To Arm
Steady On
No alarm or fault exist, all non-delayed zones are closed.
Off
A zone is open, or a fault exists.
Blue
AC
Power
Steady On
AC power OK
