50
● Toyota vehicles
● Nissan vehicles
2
4

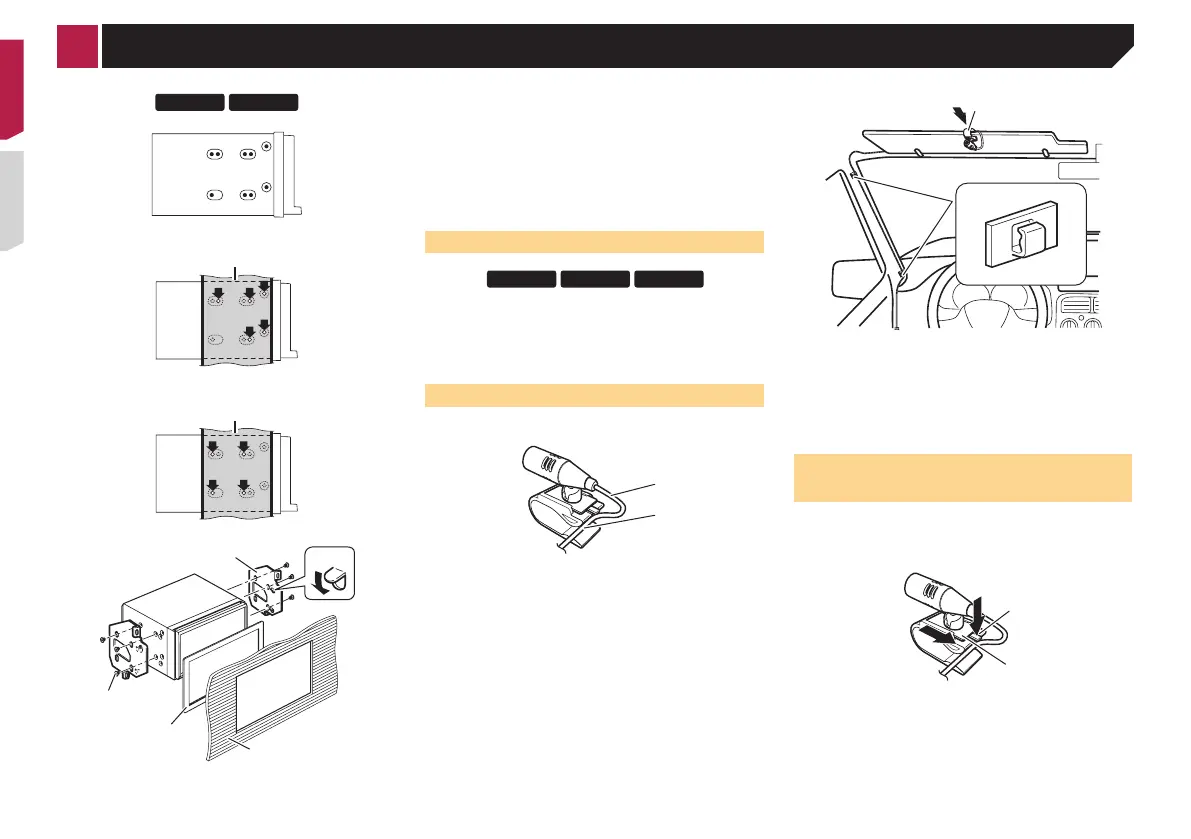

1 Factory radio-mounting bracket
2 If the pawl interferes with installation, you may bend it down
out of the way.
3
Dashboard or console
4 Frame
In some types of vehicles, discrepancy may occur between
the unit and the dashboard. If this happens, use the supplied
frame to fill the gap.
5
Truss head screw
Be sure to use the screws supplied with this product.
Installing the microphone
● Install the microphone in a place where its direction and dis-
tance from the driver make it easiest to pick up the driver’s
voice.
●
Be sure to turn off (ACC OFF) the product before connecting
the microphone.
Mounting on the sun visor
1 Fit the microphone lead into the groove.
1
1 Microphone lead
2 Groove
2 Attach the microphone clip to the sun visor.
2
1 Microphone clip
2 Clamps
Use separately sold clamps to secure the lead where neces-
sary inside the vehicle.
Install the microphone on the sun visor when it is in the up
position. It cannot recognize the driver’s voice if the sun visor is
in the down position.
Installation on the steering
column
1 Detach the microphone base from the micro-
phone clip by sliding the microphone base
while pressing the tab.
1 Tab
2 Microphone base
2 Mount the microphone on the steering column.
1 Double-sided tape
2 Clamps
Use separately sold clamps to secure the lead where neces-
sary inside the vehicle.
Keeping it away from the steering wheel.
Adjusting the microphone
angle
< CRD4823-A >
Installation
< CRD4823-A >
50
