3
CDX-PD6
1 Polyethylene Bag CEG1116
2-1 Owner’s Manual CRD3000
(English, French)
2-2 Installation Manual CRD3001
(English, French)
* 2-3 Warranty Card CRY1070
3 Screw Assy CEA2046
* 4 Polyethylene Bag CEG-127
5 Screw BMZ50P080FMC
6 Carton CHG3787
7 Contain Box CHL3787
8 Protector CHP2123
9 Cover CEG1177
10 Protector CHP2124
Mark No. Description Part No. Mark No. Description Part No.
- PACKING SECTION PARTS LIST
NOTE:
- Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List.
- Screws adjacent to ∇ mark on the product are used for disassembly.

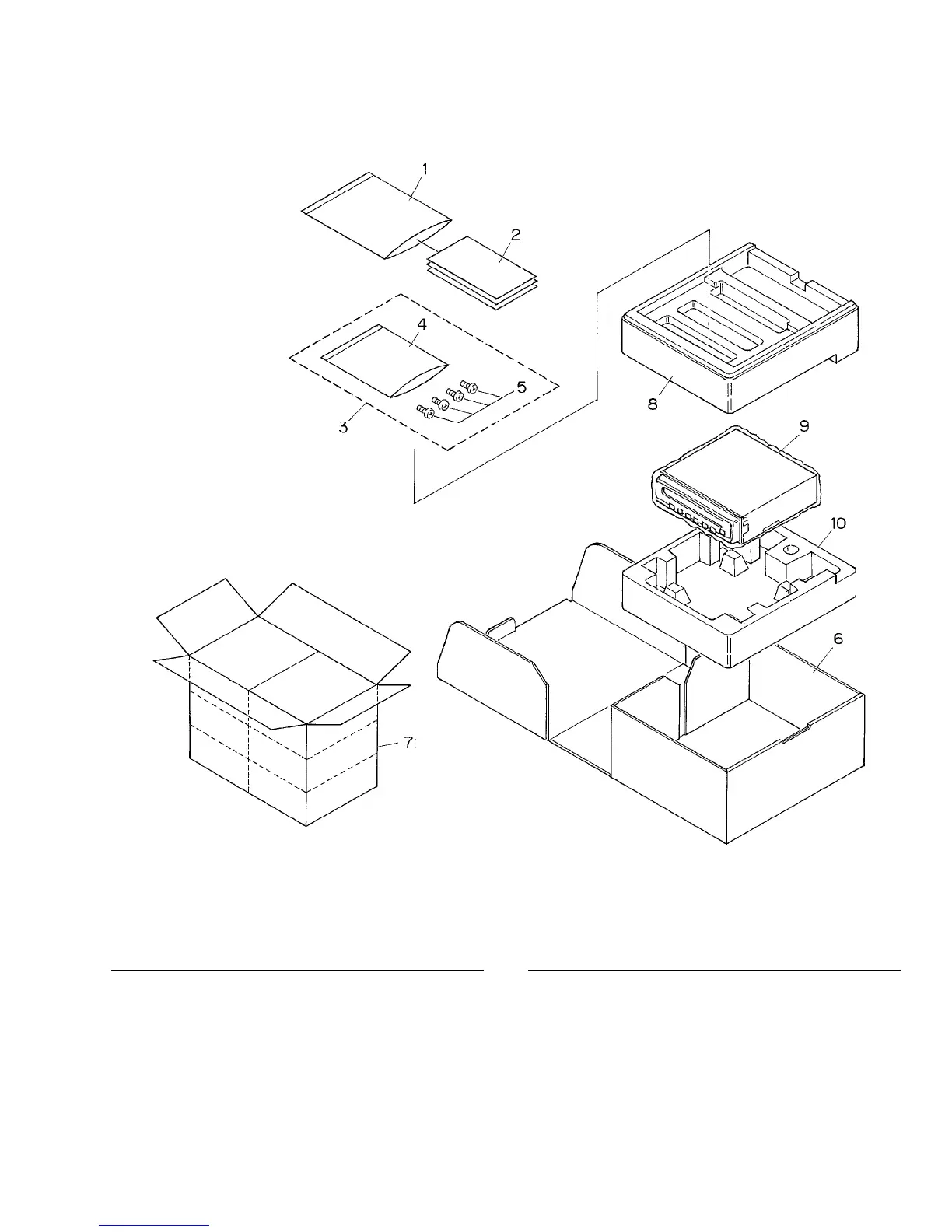

2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
To Next Page
