Pioneer DEH-X6500BT Service Manual

DEH-X65BT/XNUC
26
1234
1234
C
D
F
A
B
E
- Attention of removing (Fig.4)
Don’t remove this screws excluding the dismantlement
of the CD Mechanism Module.
Fig.3
Fig.4
CD Mechanism Module

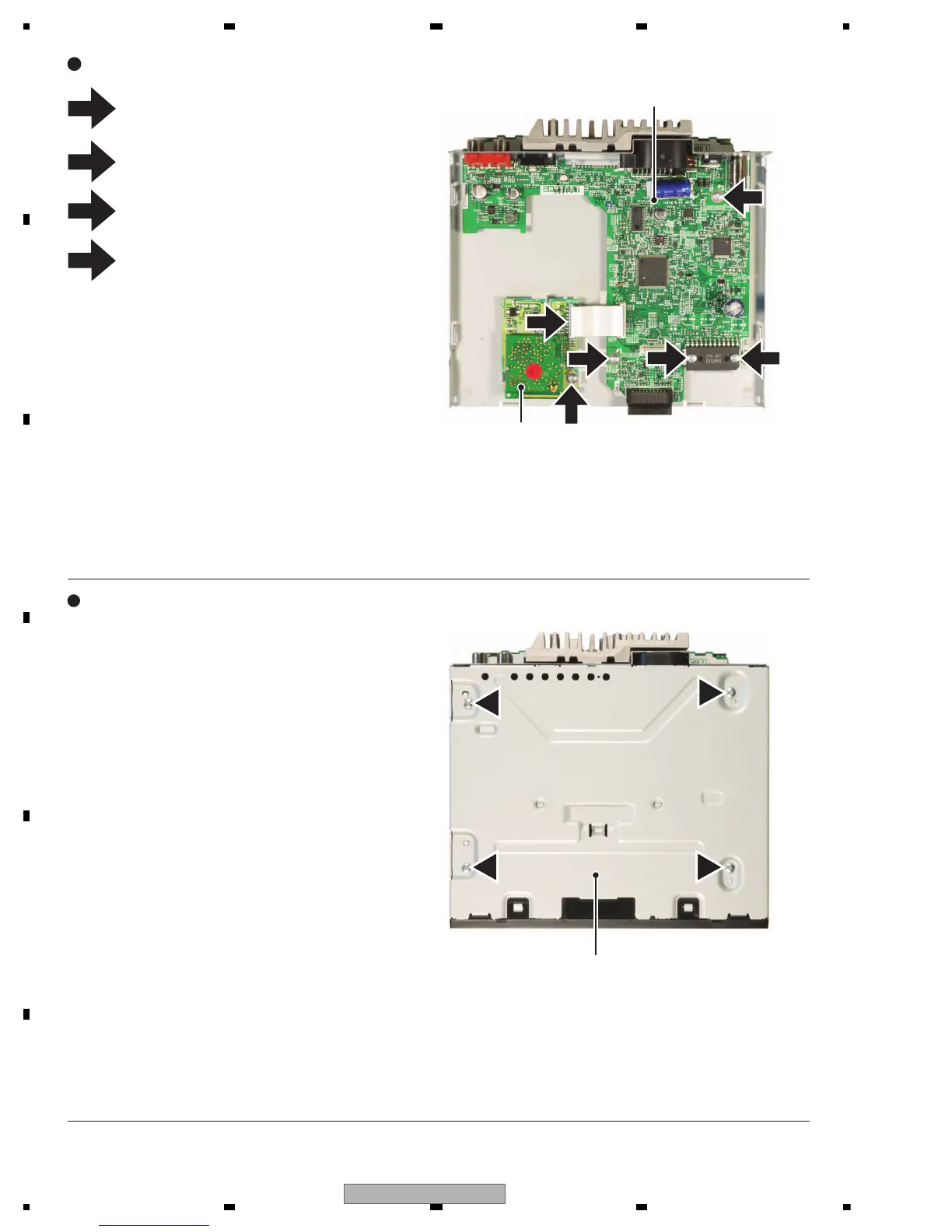

- Removing the Tuner Amp Unit and the BT Unit (Fig.3)
4
1
2
3
4
Disconnect the connector.
Remove the two screws.
Remove the two screws and then remove
the Tuner Amp Unit.
Remove the screw and then remove
the BT Unit.
Tu ne r Amp Unit
BT Unit
2
3
2
1
3
