DEH-X65BT/XNUC

5 678

Fig.5

Fig.6

Fig.7

Fig.8

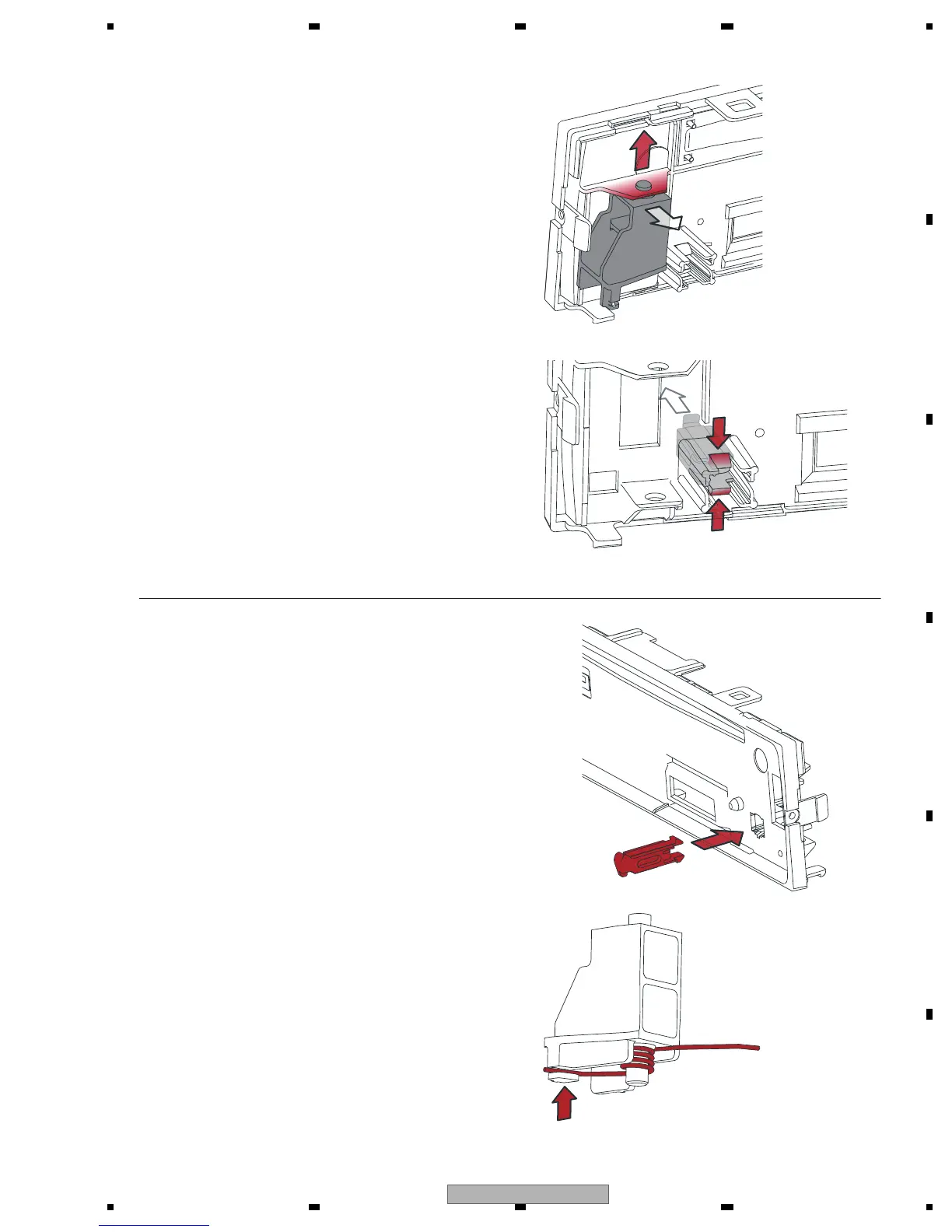

Disassembling the Panel Part (Fig.5, 6)

2. Press the upside hook and the bottom side hook of the

button at the same time, and pull out the button.

1. Remove the arm while bending the rib of the panel upward.

Assembling the Panel Part (Fig.7, 8, 9)

1. Attach the button from the front side of the panel.

2. Attach the spring to the arm as shown in the figure.

Hitch the spring to the groove.

The bended tip of the

spring is set to this side.
