Pioneer GM-A3602 User Manual

5 Insert the O-ring rubber grommet into the
vehicle body.
6 Drill a 14 mm (1/2 in.) hole into the vehicle
body.

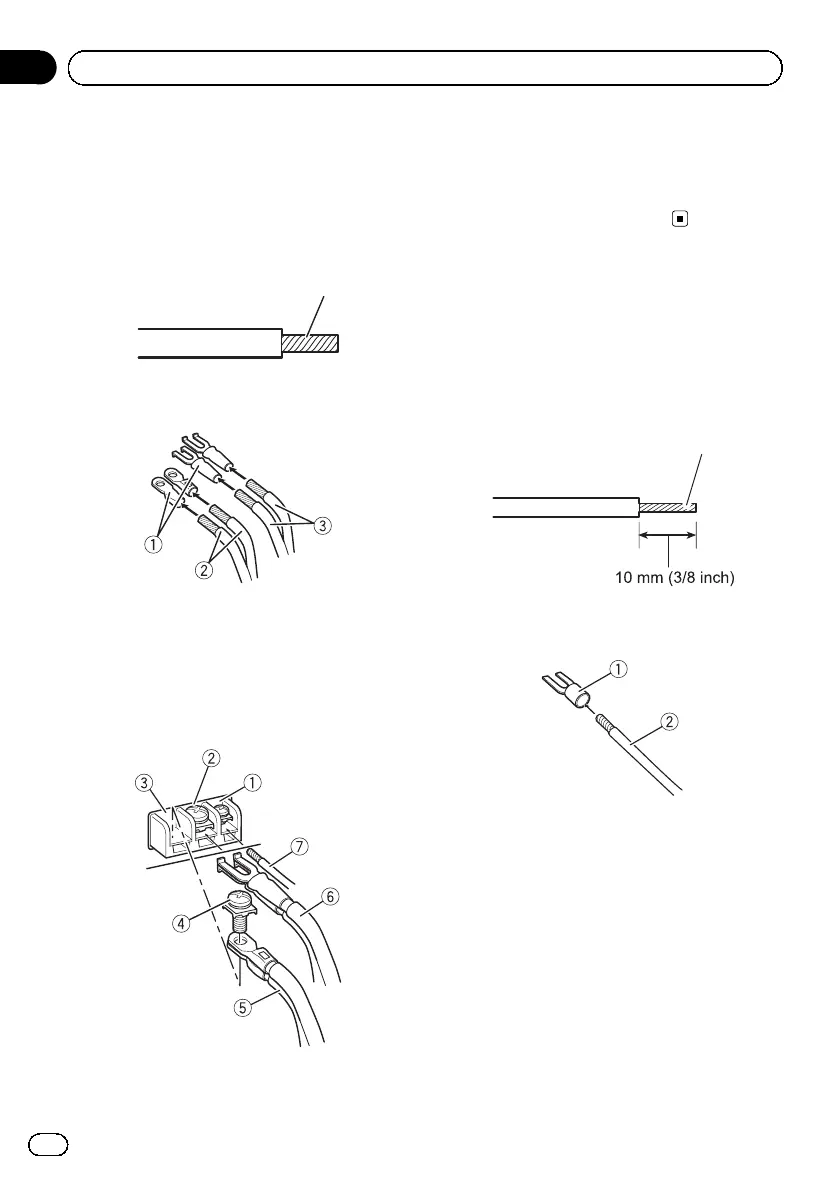

2 Twist the battery wire, ground wire
and system remote control wire.
Twist
3 Attach lugs to wire ends.
Use pliers, etc., to crimp lugs to wires.
1 Lug (sold separately)
2 Battery wire
3 Ground wire
4 Connect the wires to the terminal.
Fix the wires securely with the terminal
screws.
1 System remote control terminal
2 Ground terminal
3 Power terminal
4 Terminal screws
5 Battery wire
6 Ground wire
7 System remote control wire
Connecting the speaker
output terminals
1 Use wire cutters or a utility knife to
strip the end of the speaker wires to ex-
pose about 10 mm (3/8 in.) of wire and
then twist the wire.
Twist
2 Attach lugs to wire ends.
Use pliers, etc., to crimp lugs to wires.
1 Lug (sold separately)
2 Speaker wire
3 Connect the speaker wires to the
speaker output terminals.
Fix the speaker wires securely with the term-
inal screws.
En
10
Section
03
Connecting the units

Pioneer GM-A3602 Specifications

General

Amplifier class	A/B
Low pass filter	Yes
RMS output power (max)	400 W
Signal-to-Noise Ratio (SNR)	95 dB
Number of amplifier channels	2 channels
RMS power output per channel (2 Ohm)	180 W
RMS power output per channel (4 Ohm)	120 W
Audio RCA inputs	1
Product color	Black

Weight and Dimensions

Depth	178 mm
Width	241 mm
Height	64 mm
