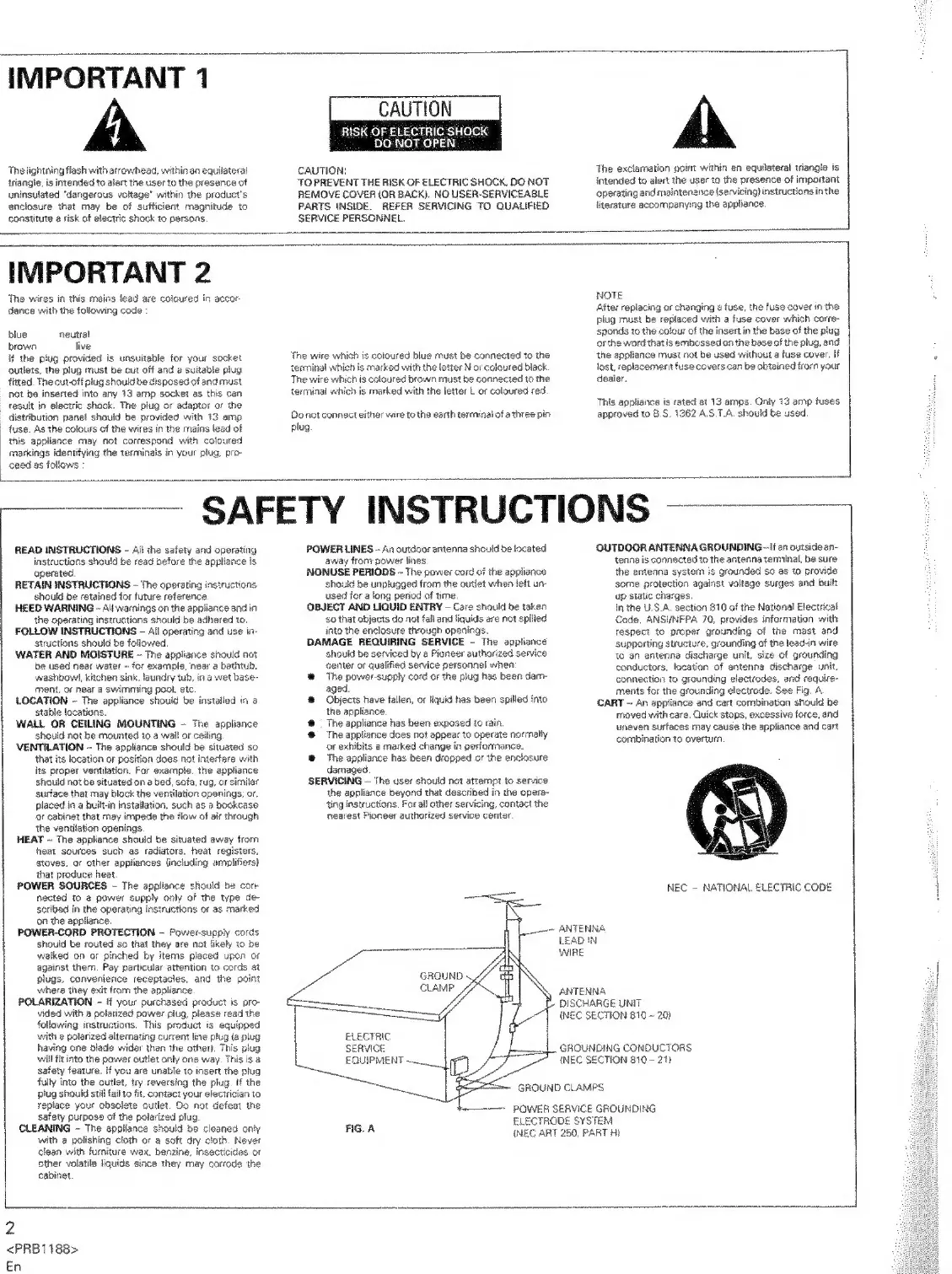

Pioneer PD-TM3 User Manual

The lightning flash with arrowhead, within an equilateral
triangle, is intended to ajert the user to the presence of
uninsylated “dangerous voltage’ within the product's
enclosure that may be of sufficient magnitude to
constitute 4 risk of electric shock to persons.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER {OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The exclarnation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions inthe
literature accompanying the appliance.
IMPORTANT 2
The wires in this mains lead are coloured in accor
dance with the following code :
blue neutral
brown five
H the plug provided is unsuitable for your socket
gutlets. the plug must be cut off and a suitable plug
fitted. The cutoif plug should be disposed of and must
not be inserted into any 13 amp socket as this can
result in elgotric shock. The plug cr adaptor or the
distribution panel should be provided with i3 amp
juse. As the colours of the wires in the mains lead of
this appliance may not correspond with coloured
markings identifying the terminals in your plug, pro-
ceed as follows :
The wire which is coloured blue must be connected to the
erminat which is marked with the letter N of coloured black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.
Do not connect either wire to the earth terminai of a three pin
plug
READ INSTRUCTIONS - Ail the safety and operating
instructions should be read before the appliance is
operated
RETAIN INSTRUCTIONS - The operating instructions
should be retained for future reference.
HEED WARNING - All warnings on the appliance and in
the operating instructions should be adhered to.
FOLLOW INSTRUCTIONS - Ail operating and use in-
structions should be followed.
WATER AND MOISTURE ~ The appliance should not
be used near water ~ for example, near a bathtub,
washbowl, kitchen sink. laundry tub, in a wet base-
ment, of near a swimming pool, etc.
LOCATION ~ The appliance should be instalied in @
stable locations.
WALL OR CEILING MOUNTING - The apphance
should not be mounted to a wall or ceiling.
VENTILATION -- The appliance should da situated so
that its location or position does not interfere with
its proper ventilation. For example. the appliance
should not be situated on 2 bed, sofa, rug, ar sirr
surface that may block the ventilation openings: or.
placed in a built-in installation. such as a bookcase
‘or cabinet that may impede the fiow of air through
the ventilation openings.
HEAT ~ The appliance should be situated away from
heat sources such as radiators, heat registers,
stoves, or other appliances {including amplifiers)
that produce heat
POWER SOURCES - The appliance should be con-
nected to a power suppiy only of the type de-
scribed In the operating Instructions or as marked
‘on the appiience.
POWER-CORP PROTECTION - Powersupply cords
should be routed so that they are not likely to be
walked on or pinched by items placed upon or
against them. Pay particular attention to cords at
plugs, convenience receptacles, and the point
where they exit from the appliance
POLARIZATION - If your purchased product is pro-
vided with a polarized power plug, please read the
following instructions. This product is equipped
with 2 polerized alternating current line plug ta slug
having one dlade wider than the other). This plug
will fit into the power outlet only one way. This is a
safety feature, if you are unable to insert the plug
tully into the outlet, try reversing the plug. If the
plug should stili fail to fit, contact your electrician to
replace your obsolete outlet. D9 not defeat the
safety purpose of the polarized plug.
CLEANING ~ The appliance should be cleaned only
with a polishing cloth or a soft dry cloth. Never
clean with furniture wax. benzine, insecticides or
other volatile liquids since they may corrode the
cabinet.
SAFETY INST
4
NOTE
After replacing ar changing a tuse, the fuse cover in the
plug must be replaced with a fuse cover which corre-
sponds to the colour of the insert in the base of the piug
or the word that is embossed on the base of the plug, and
the appliance must not be used without a fuse cover. If
lost, ‘eptacemenit fuse covers can be obtained from your
deaier.
This appliance is rated et 13 amps. Only 13 amp fuses.
approved to B.S. 1362 A.S.T.A. should be used
POWER LINES - An outdoor antenna should bs located
away from pow: lines,
NONUSE PERIODS ~ The power cord of the applisnce
should be unplugged from the outlet when left ua-
used for a long period of time,
OBJECT AND LIQUID ENTRY — Care should be taken
0 that objects do not fail and fiquids are not spilied
inte the enclosure through openings.
DAMAGE REQUIRING SERVICE - The appliance
should be serviced by a Pioneer authorized service
center or qualified service personnel when:
@ The power-supply cord or the plug has been dar
aged.
® Objects have fallen, or liquid has been spilled into
the appliance.
@ = The appliance has been exposed to rain.
@ The appliance does not appear to operate normally
or exhibits a marked change in pertormance.
& The appliance has been dropped or the enclosure
damaged.
SERVICING — The user should not attempt to service
the appliance beyond that described in the opera-
ting instructions. For ail other servicing, contact the
nearest Pioneer authorized service center
GROUND
CLAMP
———
ELECTRIC
SERVICE
EQUIPMENT
OS
a
FIG.A
RUCTIONS ——
OUTDOOR ANTENNA GROUNDING ~ If an outside an-
tenna is connected to the antenna terminal, be sure
the antenna system is grounded so as to provide
some protection against voltage surges and built
up static charges.
In the U.S.A, section 810 of the National Electrical
Code, ANSI/NFPA 70, provides information with
respect to proper grounding of the mast and
supporting structure, grounding of the lead-in wire
to an antenna discharge unit, size of grounding
conductors, location of antenna discharge unit.
connection to grounding electrodes, and require-
ments for the grounding electrode. See Fig. 4
CART - An appliance and cart combination should be
moved with care. Quick stops, excessive force, and
uneven surfaces may cause the appliance and cart
combination to overturn
NEC - NATIONAL ELECTRIC CODE
ANTENNA
DISCHARGE UNIT
INEC SECTION 810 ~ 20}
GROUNDING CONDUCTORS
(NEC SECTION 810 - 2%)
Raia GROUND CLAMPS
Fenn POWER, SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
2
<PRB1188>
En
!

Pioneer PD-TM3 Specifications

General

Brand	Pioneer
Model	PD-TM3
Category	CD Player
Language	English
