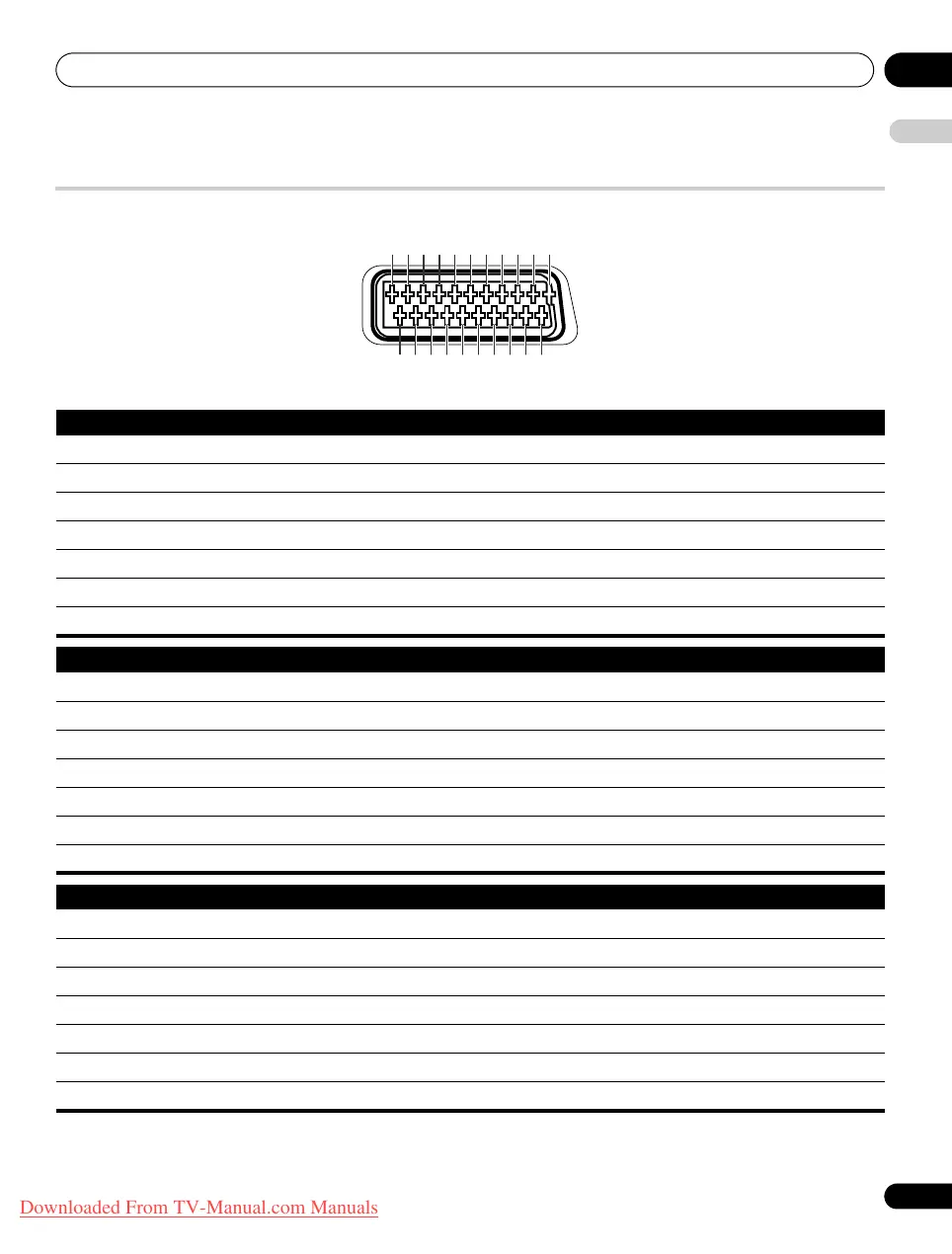

SCART pin assignments
Various audio and video devices may be connected via the SCART terminals.
SCART (INPUT 1)
1 Audio right output 2 Audio right input 3 Audio left output
4 Common earth for audio 5 Earth for Blue 6 Audio left input
7 Blue input 8 Audio-video control 9 Earth for Green
10 Not used 11 Green input 12 Not used
13 Earth for Red 14 Earth for Red/Green/Blue control 15 Red input
16 Red/Green/Blue control 17 Earth for Video output 18 Earth for Video input
19 Video output 20 Video input 21 Plug shield
SCART (INPUT 2)
1 Audio right output 2 Audio right input 3 Audio left output
4 Common earth for audio 5 Earth 6 Audio left input
7 Not used 8 Audio-video control 9 Earth
10 AV link control 11 Not used 12 Not used
13 Earth 14 Earth 15 Chroma S-Video input
16 Not used 17 Earth for Video output 18 Earth for Video input/S-Video input
19 Video output 20 Video input/S-Video input 21 Plug shield
SCART (INPUT 3)
1 Audio right output 2 Audio right input 3 Audio left output
4 Common earth for audio 5 Earth for Blue 6 Audio left input
7 Blue input 8 Audio-video control 9 Earth for Green
10 AV link control 11 Green input 12 Not used
13 Earth for Red 14 Earth for Red/Green/Blue control 15 Chroma S-Video input
16 Red/Green/Blue control 17 Earth for Video output 18 Earth for Video input/S-Video input
19 Video output 20 Video input/S-Video input 21 Plug shield
1 3 5 7 9 11 13 15 17 19 21
2 4 6 8 10 12 14 16 18 20
PDP-LX609H.book Page 105 Wednesday, August 6, 2008 4:00 PM
Downloaded From TV-Manual.com Manuals

Pioneer PDP-LX6090H Specifications

General

Depth	93 mm
Width	1465 mm
Height	876 mm
Weight	51200 g
Tuner type	Analog & digital
Pixel pitch	- mm
Aspect ratio	-
Product color	Black
Noise reduction	Yes
RMS rated power	36 W
Display diagonal	60 \
Display brightness	- cd/m²
Display technology	Plasma
Number of speakers	2
Teletext standards	Top-text
HDMI ports quantity	3
Supported video modes	1080p
USB 2.0 ports quantity	1
Audio formats supported	AC3, HE-AAC
Number of OSD languages	18
S-Video inputs quantity	0
Video formats supported	MPEG2, MPEG4
Annual energy consumption	- kWh
Analog signal format system	PAL BG, PAL DK, PAL I, SECAM B/G, SECAM D/K, SECAM L
Power consumption (standby)	0.4 W
Power consumption (typical)	524 W
Digital signal format system	DVB-S, DVB-S2, DVB-T
Sound enhancement technology	SRS WOW HD, SRS, FOCUS, TruBass, SRS Definition
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
On Screen Display (OSD) languages	CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, ITA, NOR, POR, RUS, SWE, TUR, UKR
Consumer Electronics Control (CEC)	Kuro Link
