Pioneer PDP-LX6090H User Manual

Using the HDMI Control13
96
En
Power On/Off Test
You can confirm if the Power On/Off control function is effective
between the flat screen TV and the connected device.
1 Repeat steps 1 to 4 in Selecting the input terminal .
2 Select “Power On Test” or “Power Off Test” (
/ then
ENTER).
A list containing devices appears when multiple HDMI devices are
connected to the HDMI terminals.
3 Select the desired device ( / then ENTER).
4 Press HOME MENU to exit the menu.
Note
• Devices that can be checked for Power On/Off Test are those
connected to HDMI terminals as set in “Input Setting”.
• If the Power On/Off Test fails, check for the connection and
setting.
• The Power On/Off Test cannot be carried out on HD AV
Converters.
T
W
T
W

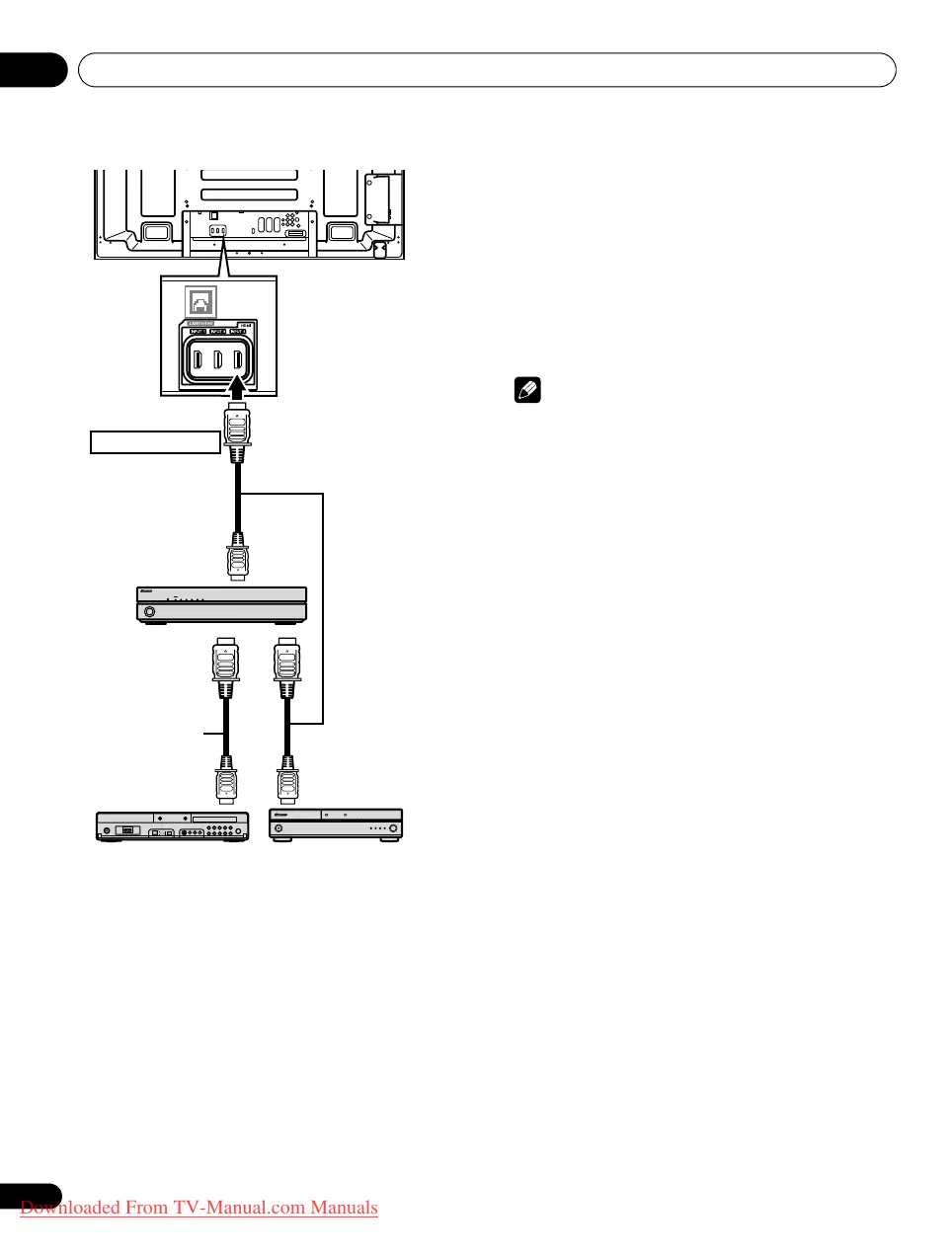

Rear view
Connect to INPUT 4
HD AV
Converter
HDMI compliant cable
(HDMI cable having
the HDMI mark)
HDMI compliant
cable
(HDMI cable having
the HDMI mark)
DVD recorder
BD player
PDP-LX609H.book Page 96 Wednesday, August 6, 2008 4:00 PM
Downloaded From TV-Manual.com Manuals

Pioneer PDP-LX6090H Specifications

General

Depth	93 mm
Width	1465 mm
Height	876 mm
Weight	51200 g
Tuner type	Analog & digital
Pixel pitch	- mm
Aspect ratio	-
Product color	Black
Noise reduction	Yes
RMS rated power	36 W
Display diagonal	60 \
Display brightness	- cd/m²
Display technology	Plasma
Number of speakers	2
Teletext standards	Top-text
HDMI ports quantity	3
Supported video modes	1080p
USB 2.0 ports quantity	1
Audio formats supported	AC3, HE-AAC
Number of OSD languages	18
S-Video inputs quantity	0
Video formats supported	MPEG2, MPEG4
Annual energy consumption	- kWh
Analog signal format system	PAL BG, PAL DK, PAL I, SECAM B/G, SECAM D/K, SECAM L
Power consumption (standby)	0.4 W
Power consumption (typical)	524 W
Digital signal format system	DVB-S, DVB-S2, DVB-T
Sound enhancement technology	SRS WOW HD, SRS, FOCUS, TruBass, SRS Definition
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
On Screen Display (OSD) languages	CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, ITA, NOR, POR, RUS, SWE, TUR, UKR
Consumer Electronics Control (CEC)	Kuro Link
