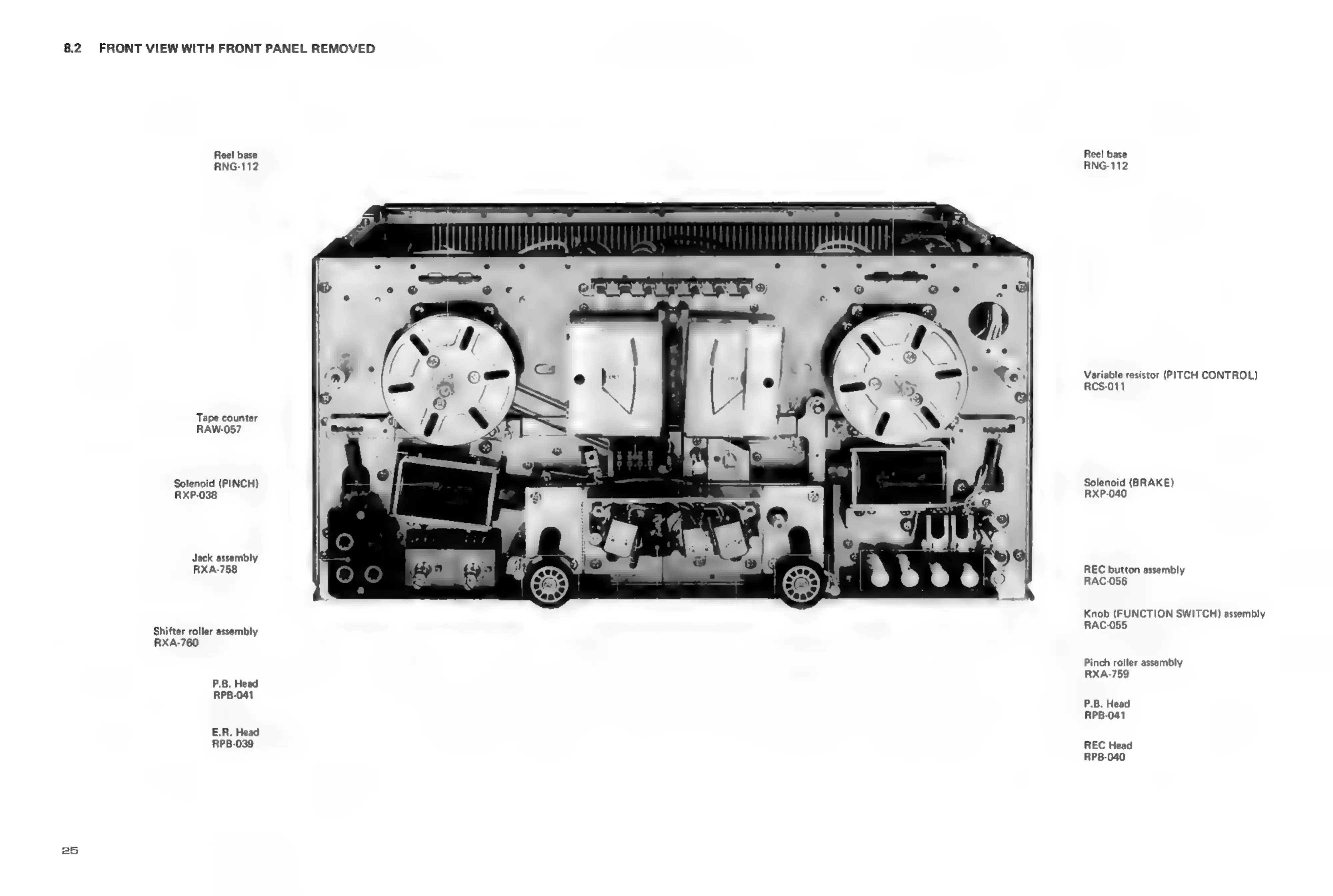

8.2 FRONT VIEW WITH FRONT PANEL REMOVED
Reel base
RNG-112
Tape counter
RAW-057
Solenoid (PINCH)
RXP-038
Jack assembly
RXA-758
Shifter roller assembly
RXA-760
P.B. Head
RPB-041
E.R. Head
RPB-039
25
Reel base
RNG-112
Variable
resistor
(PITCH
CONTROL)
RCS-011
Solenoid (BRAKE)
RXP-040
REC button assembly
RAC-056
Knob (FUNCTION SWITCH) assembly
RAC-055
Pinch roller assembly
RXA-759
P.B. Head
RPB-041
REC Head
RPB-040
