Pioneer SC-LX81 Service Manual

71
SC-LX81
5
6 7 8
5
6 7 8
A
B
C
D
E
F

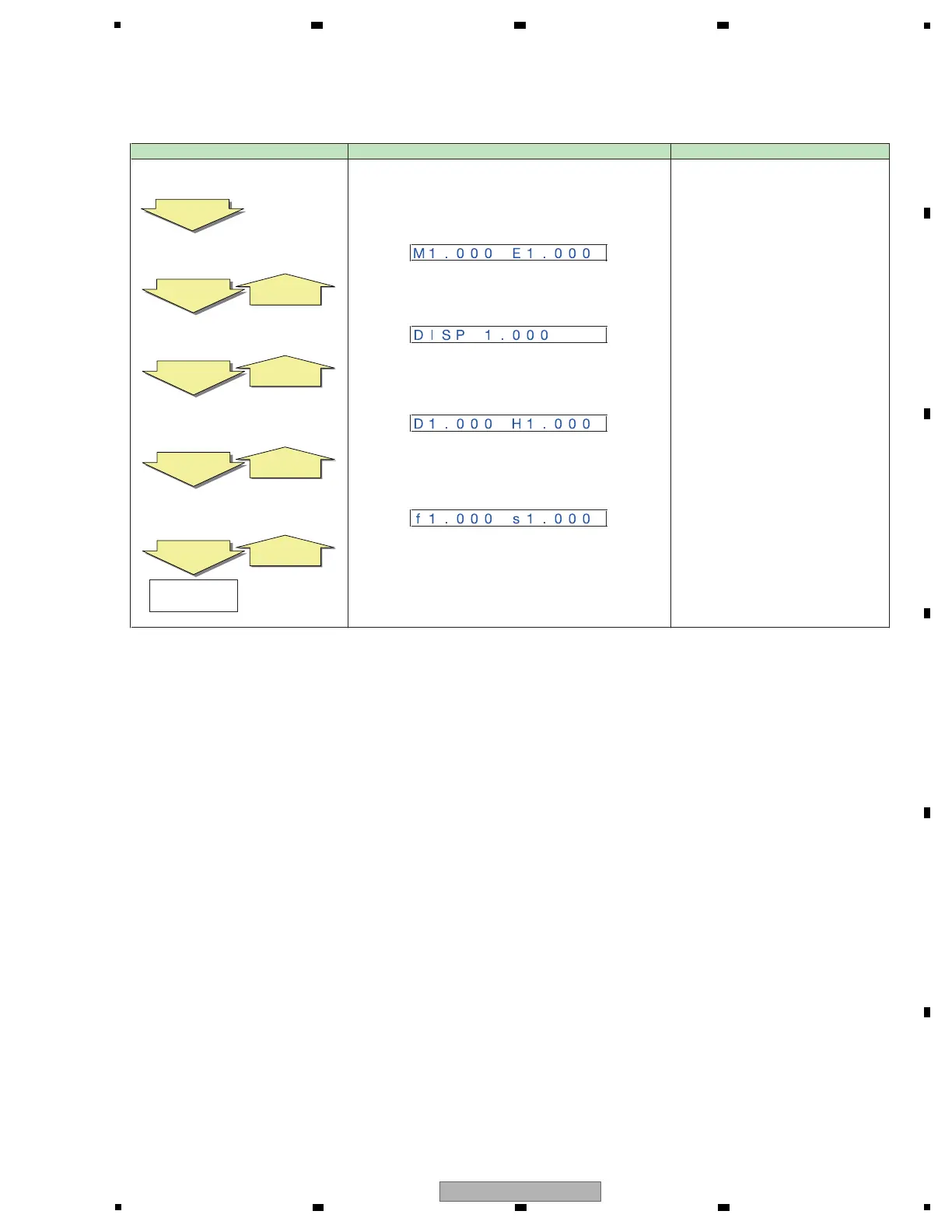

1) VERSION block
This block displays version information of various microcomputers and DSP firmware.
*If no key is pressed within 10 seconds, the Service mode returns to the normal mode.
Key operation FL display Explanation on displayed versions
Test mode ON
VERSION block 1/4
MAIN/EVENT microcomputer
M * . *** : MAIN microcomputer
E * . *** : EVENT microcomputer
DISP * . *** : DISPLAY
microcomputer
VERSION block 2/4
DISPLAY (EMMA) microcomputer
VERSION block 3/4
DSP/HDMI microcomputer
D * . *** : DSP microcomputer
H * . *** : HDMI microcomputer
VERSION block 4/4
1stDSP/2ndDSP firmware
f * . *** : 1st DSP firmware
s* . *** : 2nd DSP firmware
To PROTECT
block
[↓]
[↑]
[↓]
[↑]
[↓]
[↑]
[↓]
[↑]
