Pioneer VSA-AX10 Service Manual

VSA-AX10, VSX-AX10
4
FRONT PANEL SECTION
Panel Spacer left S Not used AMR7408 AMR7415 No.17
Panel Spacer right S Not used AMR7409 AMR7416 No.18
Panel Spacer left L Not used AMR7411 AMR7417 No.19
Panel Spacer right L Not used AMR7412 AMR7418 No.20
REMOTE CONTROL SECTION
P161- 2 PCB ASSY AZC7299 AZC7299 AZC7300
P161-13 Seal A AZA7415 AZA7417 AZA7420
P161-14 Seal B AZA7416 AZA7418 AZA7420
P161-16 Case A AZN7783 AZN7885 AZN7795
P161-17 Name Plate AZA7406 AZA7407 AZA7409
P161-21 Case B AZN7784 102RRC24401R AZN7796
P161-23 Pen Holder AZN7786 AZN7798 AZN7798
P161-26 Battery Cover AZN7785 103RRC14701R AZN7797
P161-32 Slide Knob AZA7347 Not used AZA7365
P161-36 Key Top A AZA7345 302RRC09901R AZA7363
P161-37 Key Top B AZA7346 302RRC10001R AZA7364
P161-39 Rubber Sheet B AZA7349 Not used AZA7371
P161-40 Rubber Sheet C AZA7411 AZA7414 AZA7411
÷

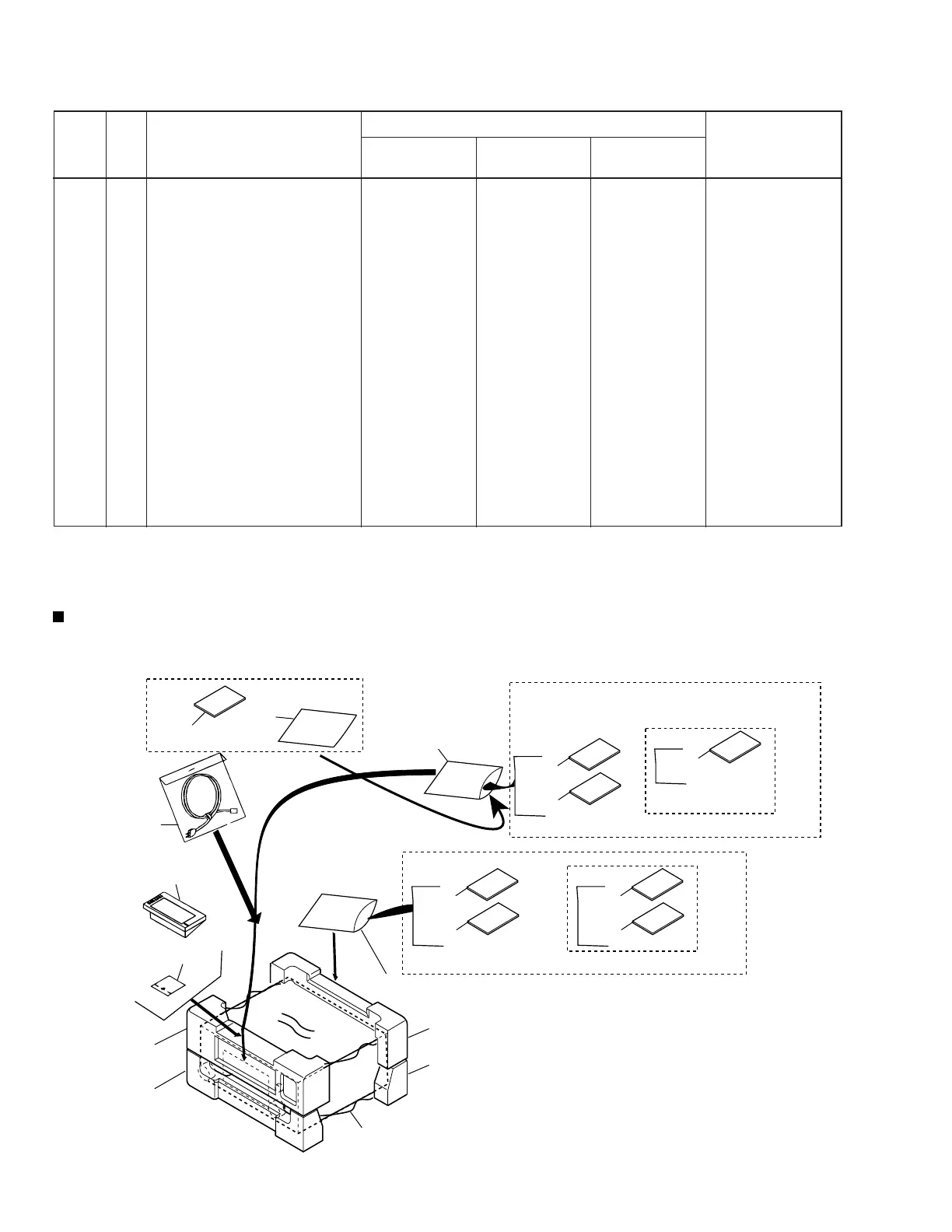

PACKING SECTION
EXPLODED VIEWS
Packing Sheet
Top Pad
Top Pad
Bottom
Pad
Bottom
Pad
Polyethylene Bag
Polyethylene Bag
No. 8
Power Cord
No. 9
No.4
No.5
Microphone
Remote Control
VSA-AX10/HY Only
VSA-AX10/HY Only
No.6
No.7
No.3
No.12
VSA-AX10/SDLBPW Only
No.12
VSA-AX10/SDLBPW Only
VSX-AX10/SDLBPW Only
Notes : ÷The numbers in the remarks column correspond to the numbers on the “ EXPLODED VIEWS ”.
÷ For PCB ASSEMBLIES, Refer to “CONTRAST OF PCB ASSEMBLIES”, “2. PCB CONNECTION DIAGRAM” and “3. SCHE-
MATIC DIAGRAM”.
Part No.
Remarks
VSX-49TX VSA-AX10 VSX-AX10
/KU/CA /HY /SDLBPW
Ref.
No.
Mark
Symbol and Description
