Pioneer VSX-528 User Manual

3
English
Français
Italiano
Español
Nederlands
Deutsch

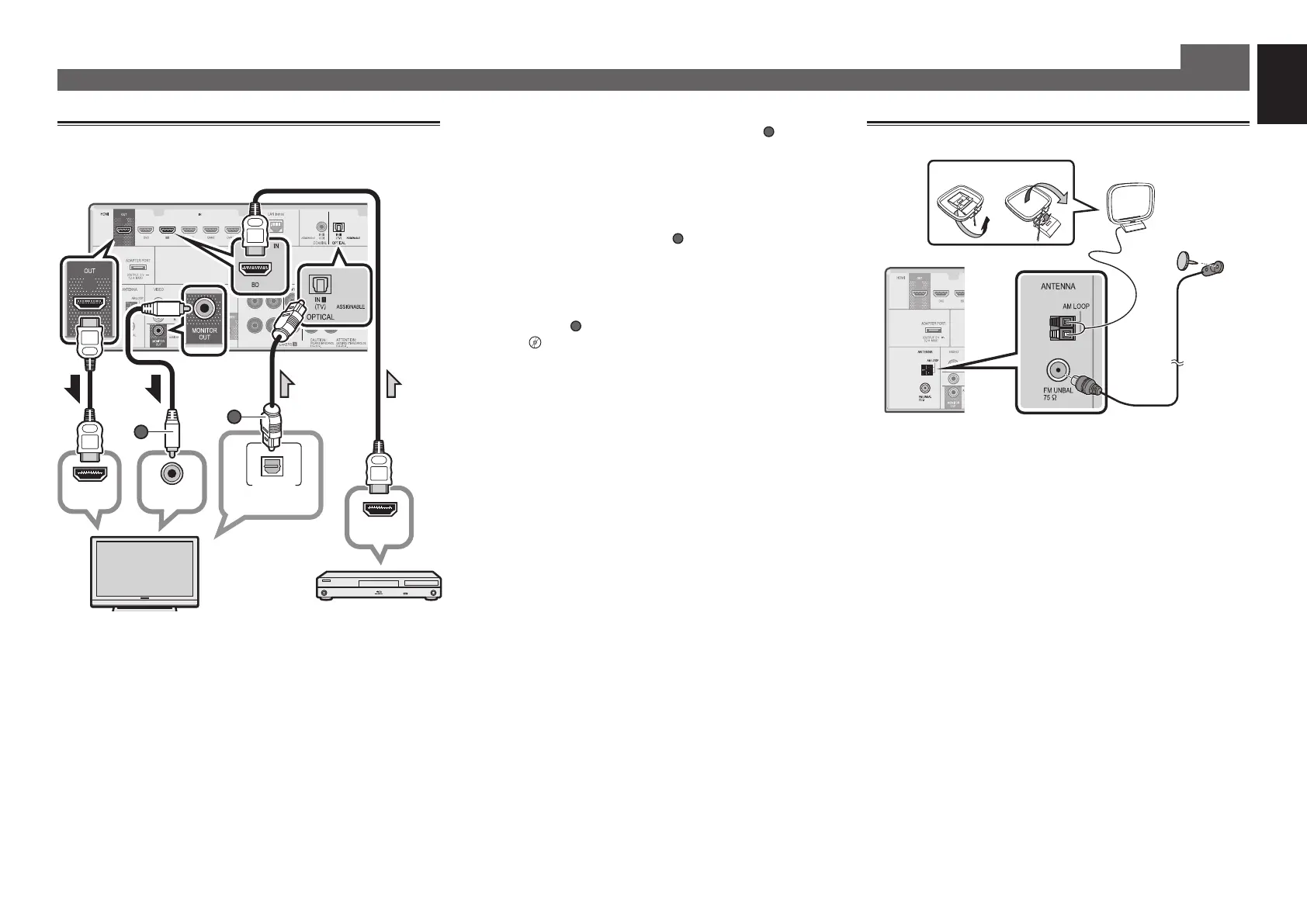

Connecting a TV and playback
components
Connecting up (continued)
Connecting antennas
21
AM loop antenna
FM wire antenna
VSX-528
HDMI IN
HDMI OUT
VIDEO IN
DIGITAL AUDIO OUT
OPTICAL
B
A
HDMI/DVI-compatible TV
VSX-528
HDMI/DVI-compatible
Blu-ray Disc player, etc.
• VSX-423/VSX-323 only: Composite video cable (
A
)
connection is necessary in order to see the OSD of the
unit on the TV.
• VSX-828/VSX-528 only: The OSD will only be output from the
HDMI OUT terminal.
• If the TV does not support the HDMI Audio Return Channel
function, optical digital cable (
B
) connection is required to
listen to the TV sound over the receiver.
• If the TV supports the HDMI Audio Return Channel
function, the sound of the TV is input to the receiver via the
HDMI terminal, so there is no need to connect an optical
digital cable (
B
). In this case, set
ARC
at
HDMI Setup
to
ON

“The HDMI Setup menu” on page 36 (VSX-423/VSX-
323), “HDMI Setup” on page 59 (VSX-828/VSX-528)
• Please refer to the TV’s operation manual for directions on
connections and setup for the TV.

Pioneer VSX-528 Specifications

General

Channels	5.1
HDMI Outputs	1
3D Pass-Through	Yes
Audio Return Channel	Yes
Dolby Formats	Dolby TrueHD, Dolby Digital Plus, Dolby Pro Logic II
USB Port	Front
Wi-Fi	No
Ethernet	Yes
AVNavigator	Yes
MCACC	Yes
Frequency Response	5 Hz - 100 kHz
Total Harmonic Distortion	0.08%
Input Sensitivity/Impedance	200 mV / 47 k ohms
Signal-to-Noise Ratio	98dB
DTS Formats	DTS-HD Master Audio, DTS Express
Network Features	DLNA 1.5
Video Inputs/Outputs	1 Composite
Audio Inputs/Outputs	1 Coaxial, 1 Optical
Bluetooth	Optional (with AS-BT200 adapter)
Dimensions	435 x 168 x 331 mm
Power Output	80W per channel (8 ohms, 20 Hz - 20 kHz, THD 0.08%, 2 channels driven)
HDMI Inputs	6 (Rear)
