Pioneer XR-A660 Service Manual

6
XR-A660, XR-A330

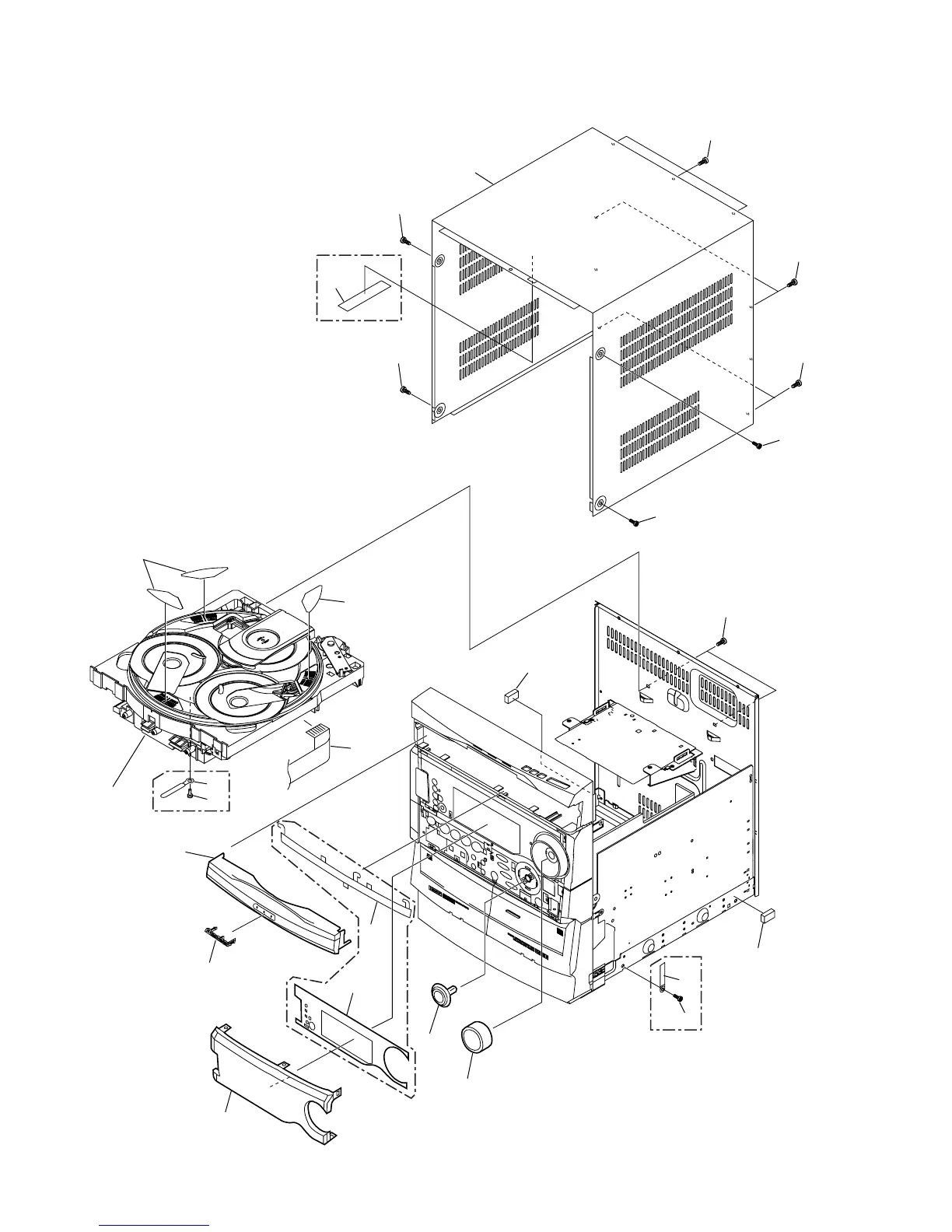

2.2 EXTERIOR (1/2)
13, 14
3
19
20
9
5
4
6
10
2
12
Note :
Attatch on the same numbers × three.
12
Refer to
"2.5 $M MECHANISM CD".
7
Note :
Hook Tray cap on top of loading tray and then
insert the bottom three hooks.
8
9
9
11
11
15
18
11
15
1
17
16
XR-A660 only
XR-A660 only
KUCXJ Type only
XR-A330
only
19
21
