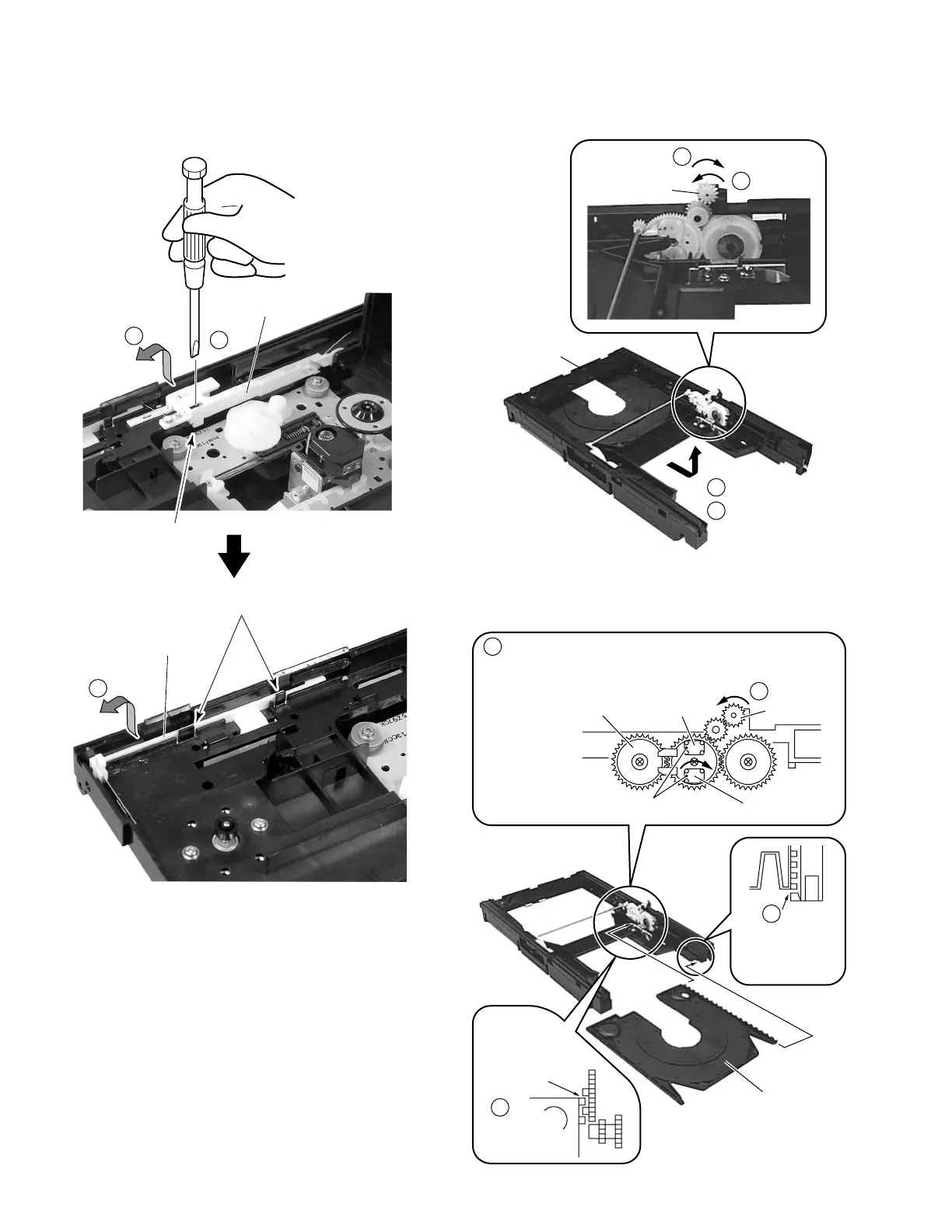

Disassembly of Carriage 100, 200
7
Assembly of Carriage 100, 200
2
3
1
The loss of
Bevel Gear
is noted.
Drawer
The back of Drawer
Carriage 100
1
1
Bevel Gear
Upper Pinion
Black Cam
Lower Pinion
Mark • of Pinion of both upper and lower
must be a direction of black Cam.
(Carriage 100 is No.1 carriage. Carriage 200 is No.2 carriage.)
After Bevel Gear is turned counterclockwise, and five
rotations are made after lower side Pinion begins to turn,
stops in the place where its rotation stopped.
4
Carriage 200
3
The bottom of
Carriage is hit
under right Stopper
and puts.
Carriage 200
2
The first teeth of
Carriage are put
between the pin
and the pin lower
side Pinion.
Carriage
200
12
13
Hook
Slider 1
Slider 4
Hooks
14
To Next Page
