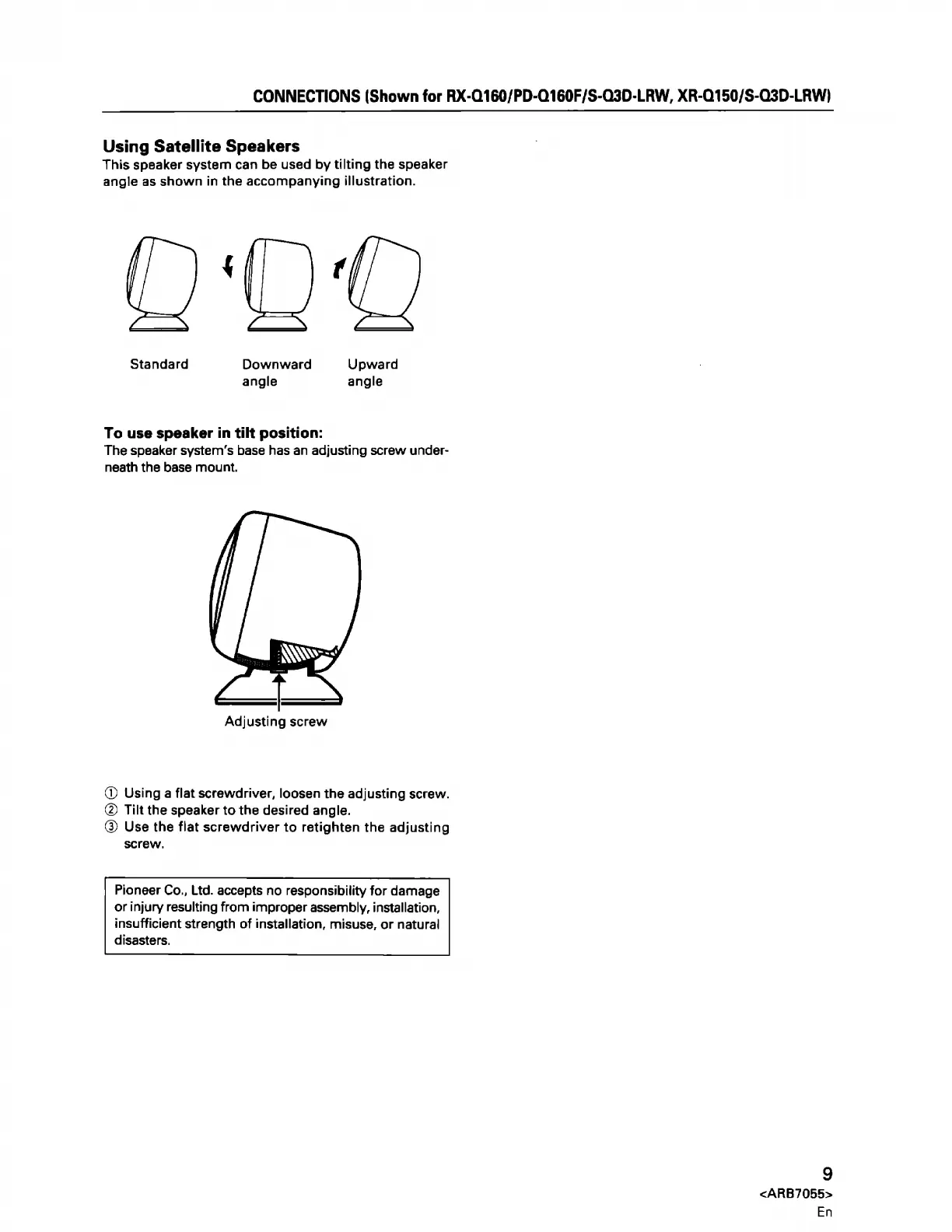

CONNECTIONS
(Shown
for
RX-0160/PD-0160F/S-030-LRW,
XR-Q150/S-Q3D-LRW)
Using
Satellite
Speakers
This
speaker
system
can
be
used
by
tilting
the
speaker
angle
as
shown
in
the
accompanying
illustration.
Standard
Downward
Upward
angle
angle
To
use
speaker
in
tilt
position:
The
speaker
system’s
base
has
an
adjusting
screw
under-
neath
the
base
mount.
Adjusting
screw
@
Using
a
flat
screwdriver,
loosen
the
adjusting
screw.
@
Tilt
the
speaker
to
the
desired
angle.
@
Use
the
flat
screwdriver
to
retighten
the
adjusting
screw.
Pioneer
Co,,
Ltd.
accepts
no
responsibility
for
damage
or
injury
resulting
from
improper
assembly,
installation,
insufficient
strength
of
installation,
misuse,
or
natural
disasters.
9
<ARB7055>
