Pioneer XR-Q150 User Manual

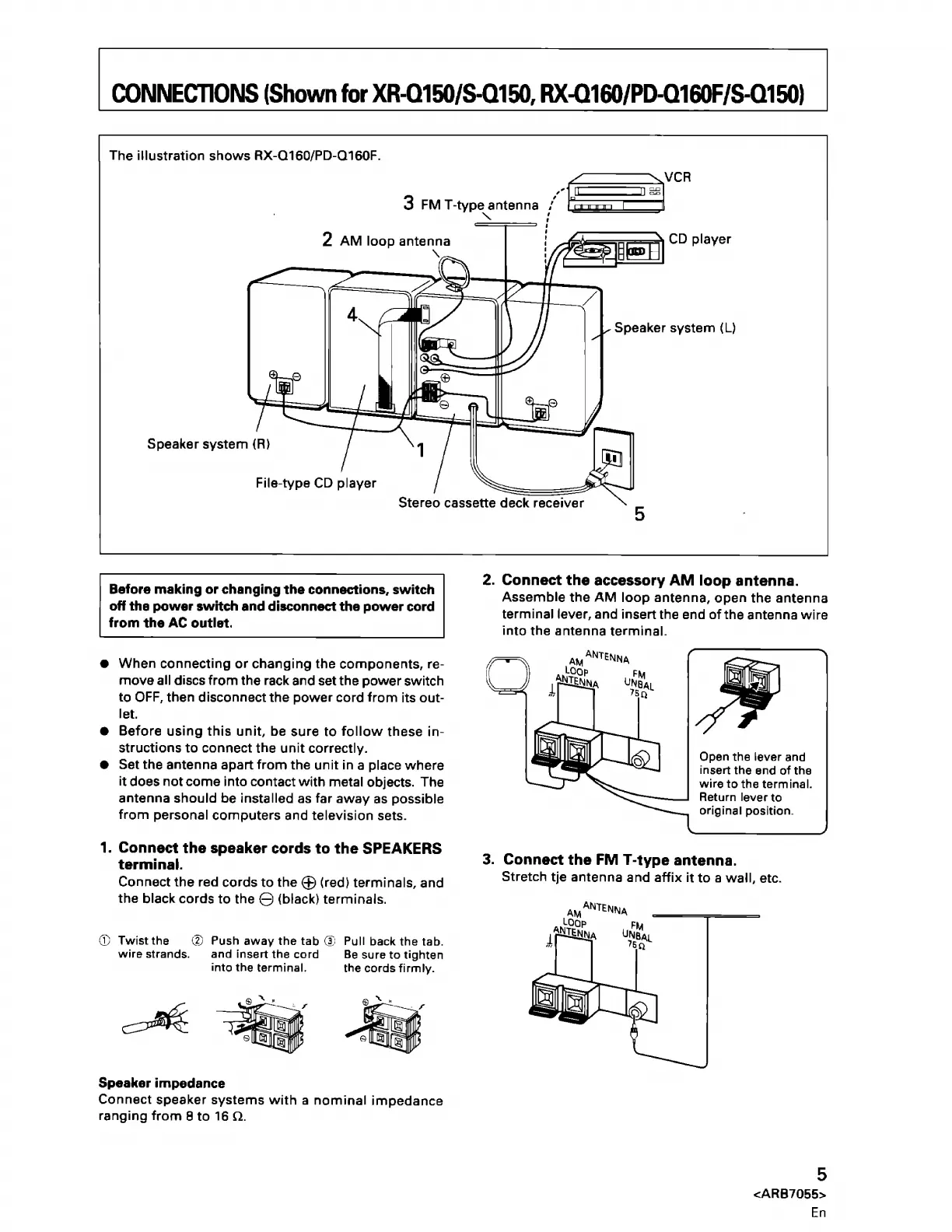

CONNECTIONS (Shown for XR-0150/S-0150, RX-0160/PD-0160F/S-0150)
The illustration shows RX-Q160/PD-Q160F.
Before making or changing the connections, switch
off the power switch and disconnect the power cord
from the AC outlet.
@ When connecting or changing the components, re-
move all discs from the rack and set the power switch
to OFF, then disconnect the power cord from its out-
let.
® Before using this unit, be sure to follow these in-
structions to connect the unit correctly.
@ Set the antenna apart from the unit in a place where
it does not come into contact with metal objects. The
antenna should be installed as far away as possible
from personal computers and television sets.
1. Connect the speaker cords to the SPEAKERS
terminal.
Connect the red cords to the @ (red) terminals, and
the black cords to the © (black) terminals.
—
@ Twist the
wire strands.
KE
Speaker impedance
Connect speaker systems with a nominal impedance
ranging from 8 to 16 Q.
(> Push away the tab @ Pull back the tab.
and insert the cord Be sure to tighten
into the terminal. the cords firmly.
ii
fcummy |
CD player
Speaker system (L)
2. Connect the accessory AM loop antenna.
Assemble the AM loop antenna, open the antenna
terminal lever, and insert the end of the antenna wire
into the antenna terminal.
Open the lever and
insert the end of the
wire to the terminal.
Return lever to
original position.
3. Connect the FM T-type antenna.
Stretch tje antenna and affix it to a wall, etc.
ay NTENNA
nOOP
FM
ANTENN UN
4 , 7a
5
<ARB7055>
En
