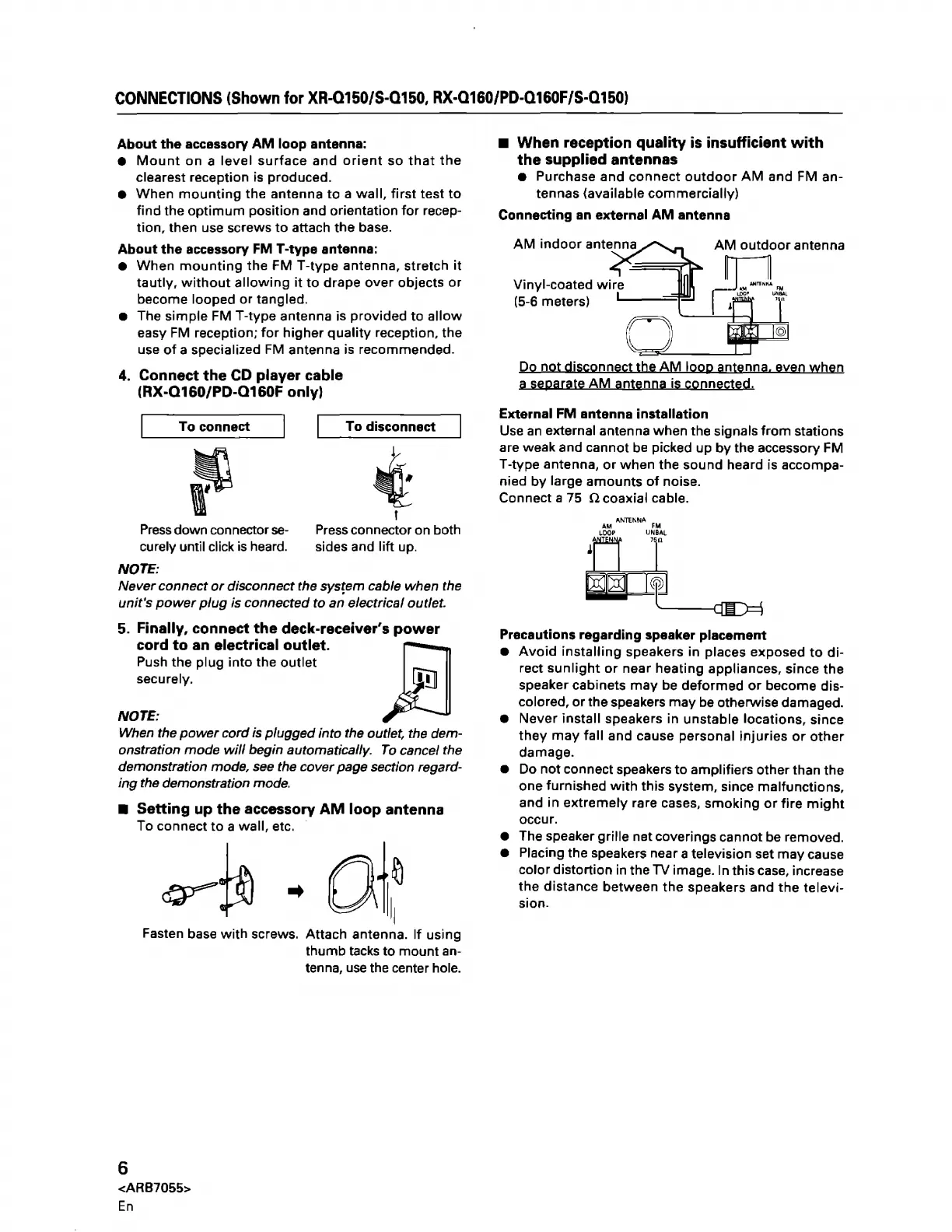

CONNECTIONS (Shown for XR-0150/S-0150, RX-Q160/PD-Q160F/S-Q150)
About the accessory AM loop antenna:
@ Mount on a level surface and orient so that the
clearest reception is produced.
@ When mounting the antenna to a wall, first test to
find the optimum position and orientation for recep-
tion, then use screws to attach the base.
About the accessory FM T-type antenna:
@ When mounting the FM T-type antenna, stretch it
tautly, without allowing it to drape over objects or
become looped or tangled.
@ The simple FM T-type antenna is provided to allow
easy FM reception; for higher quality reception, the
use of a specialized FM antenna is recommended.
4. Connect the CD player cable
(RX-Q160/PD-Q160F only)
a
Press down connector se-
curely until click is heard.
NOTE:
Never connect or disconnect the system cable when the
unit's power plug is connected to an electrical outlet.
Press connector on both
sides and lift up.
5. Finally, connect the deck-receiver’s power
cord to an electrical outlet.
Push the plug into the outlet
securely.
NOTE:
When the power cord is plugged into the outlet, the dem-
onstration mode will begin automatically. To cancel the
demonstration mode, see the cover page section regard-
ing the demonstration mode.
m Setting up the accessory AM loop antenna
To connect to a wall, etc. |
oft - OF
Fasten base with screws. Attach antenna. If using
thumb tacks to mount an-
tenna, use the center hole.
6
<ARB7055>
En
m@ When reception quality is insufficient with
the supplied antennas
@ Purchase and connect outdoor AM and FM an-
tennas (available commercially)
Connecting an external AM antenna
AM indoor antenna AM outdoor antenna
Vinyl-coated wire
(5-6 meters)
not disconn } ntenna, ev n
AM nna i n
External FM antenna installation
Use an external antenna when the signals from stations
are weak and cannot be picked up by the accessory FM
T-type antenna, or when the sound heard is accompa-
nied by large amounts of noise.
Connect a 75 © coaxial cable.
ANTENNA
AM
Precautions regarding speaker placement
@ Avoid installing speakers in places exposed to di-
rect sunlight or near heating appliances, since the
speaker cabinets may be deformed or become dis-
colored, or the speakers may be otherwise damaged.
@ Never install speakers in unstable locations, since
they may fall and cause personal injuries or other
damage.
@® Do not connect speakers to amplifiers other than the
one furnished with this system, since malfunctions,
and in extremely rare cases, smoking or fire might
occur.
@ The speaker grille net coverings cannot be removed.
@ Placing the speakers near a television set may cause
color distortion in the TV image. In this case, increase
the distance between the speakers and the televi-
sion.
