Pioneer XR-Q150 User Manual

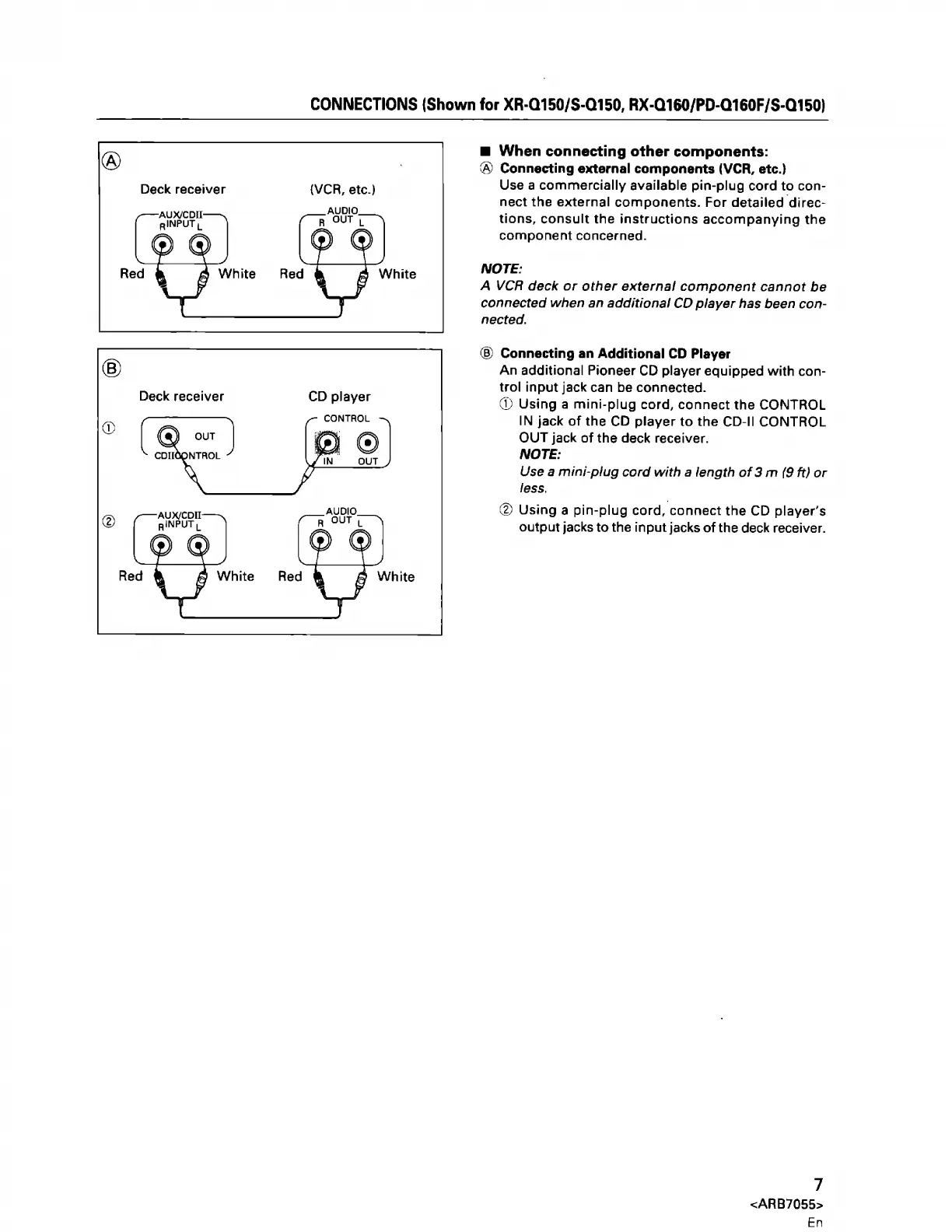

CONNECTIONS (Shown for XR-Q150/S-0150, RX-0160/PD-0160F/S-0Q150)
Deck receiver (VCR, etc.)
AUX/CDII
@INPUT ;
Deck receiver CD player
@
CONTROL
a
ae
4
(@))
OUT
t~
CDIISONTROL
A
@)
m When connecting other components:
@ Connecting external components (VCR, etc.)
Use a commercially available pin-plug cord to con-
nect the external components. For detailed direc-
tions, consult the instructions accompanying the
component concerned.
NOTE:
A VCR deck or other external component cannot be
connected when an additional CD player has been con-
nected.
Connecting an Additional CD Player
An additional Pioneer CD player equipped with con-
trol input jack can be connected.
() Using a mini-plug cord, connect the CONTROL
IN jack of the CD player to the CD-II| CONTROL
OUT jack of the deck receiver.
NOTE:
Use a mini-plug cord with a length of 3 m (9 ft) or
less.
@ Using a pin-plug cord, connect the CD player's
output jacks to the input jacks of the deck receiver.
7
<ARB7055>
En
