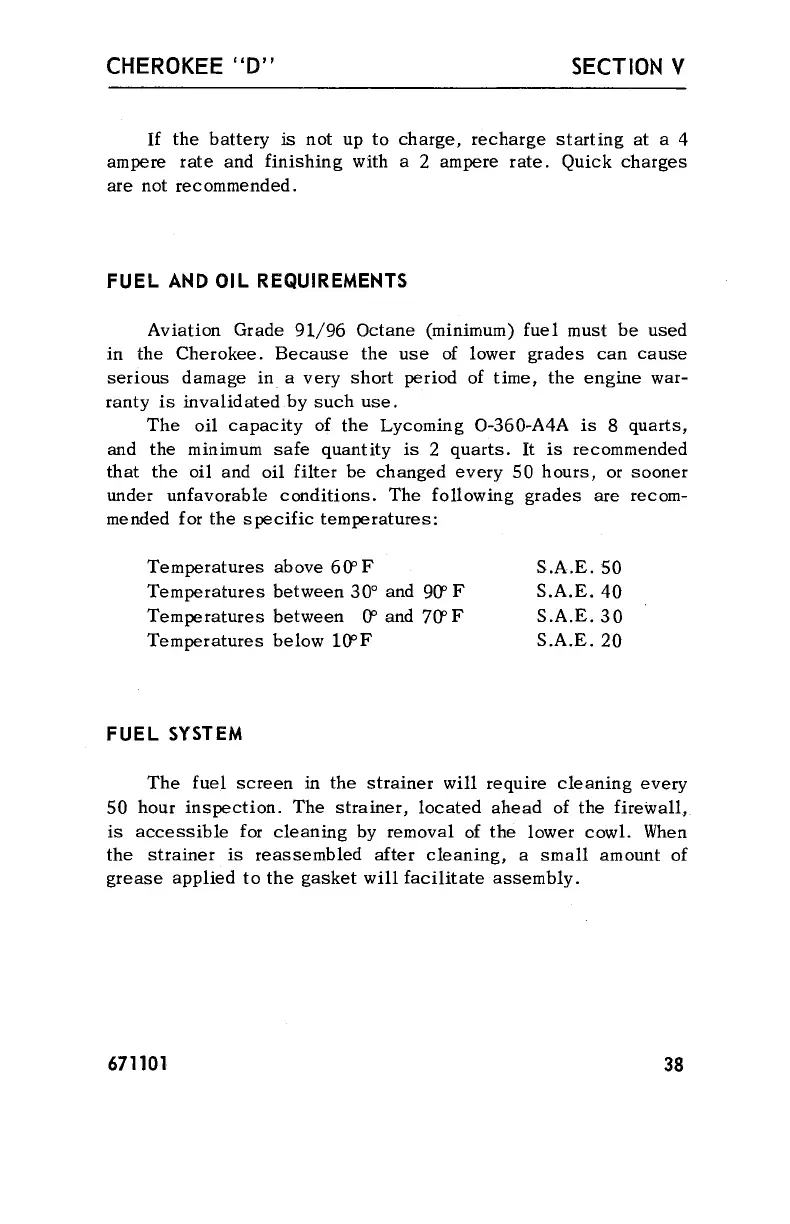

The following grades are recommended for the specific temperatures:
Temperatures above 60°F S.A.E. 50
Temperatures between 30° and 90°F S.A.E. 40
Temperatures between 0° and 70°F S.A.E. 30
Temperatures below 10°F S.A.E. 20
FUEL SYSTEM
The fuel screen in the strainer will require cleaning every 50 hour inspection.
The strainer, located ahead of the firewall, is accessible for cleaning by removal
of the lower cowl. When the strainer is reassembled after cleaning, a small
amount of grease applied to the gasket will facilitate assembly.

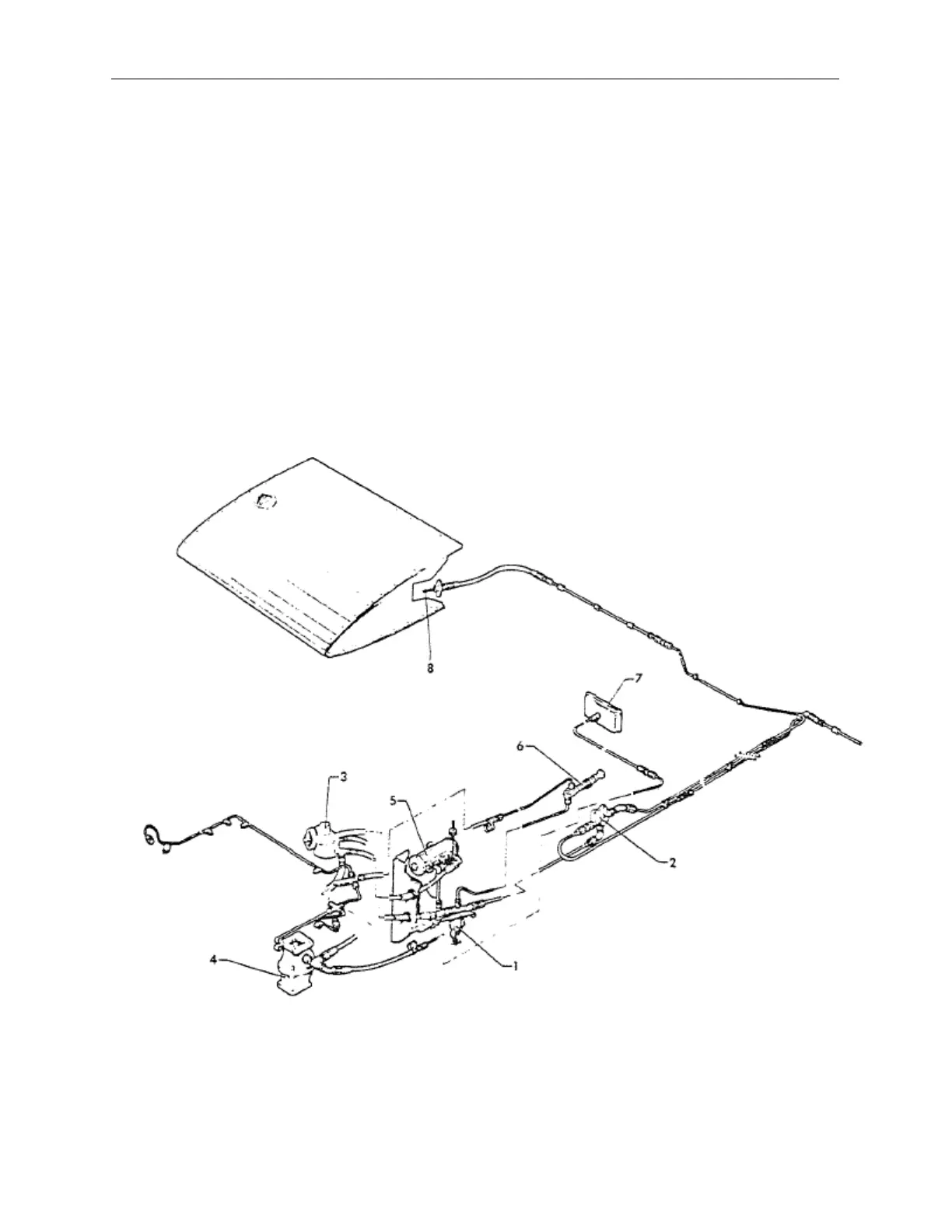

2. Fuel Selector
3. Engine Driven Pump
4. Carburetor
5. Electric Fuel Pump
6. Engine Primer
7. Fuel Pressure Gauge
PIPER CHEROKEE 180 “C” FUEL SYSTEM
