PIPER CHEROKEE SIX / LANCE SERVICE MANUAL
V - SURFACE CONTROLS 07/15/06
1I10

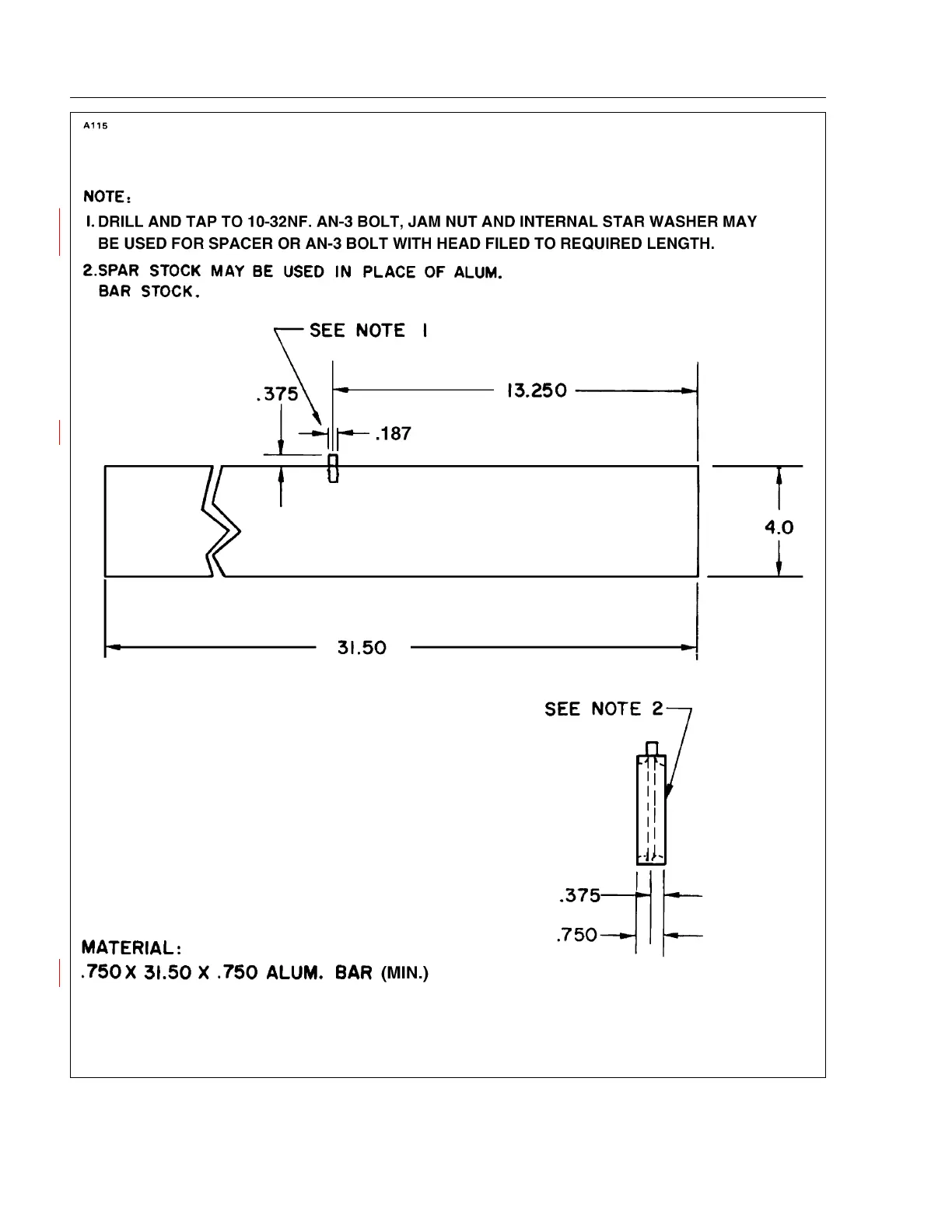

Figure 5-19. Fabricated Aileron and Flap Rigging Tool
