C722
10
12_
10
1. ELEVATOR
2. ELEVATOR
TRIM
TAB
3. BOLT
ASSEMBLY
4. ELEVATOR
TORQUE
TUBE
5. BOLT
ASSEMBLY
6. ELEVATOR
TRIM
CONTROL
ROD
7. ELEVATOR
TRIM YOKE
8. BOLT
ASSEMBLY
9. ELEVATOR
HORN
10. STABILIZER
SPAR
11.
ELEVATOR
12. BRACKET
13. BRACKET
ASSEMBLY
PAWNEE BRAVE
SERVICE
MANUAL
A680
7
8
9 10
SERIAL NOS.
36-7460040
AND UP
3
Serial Nos. 36-736001
to 36-7460039
incl.

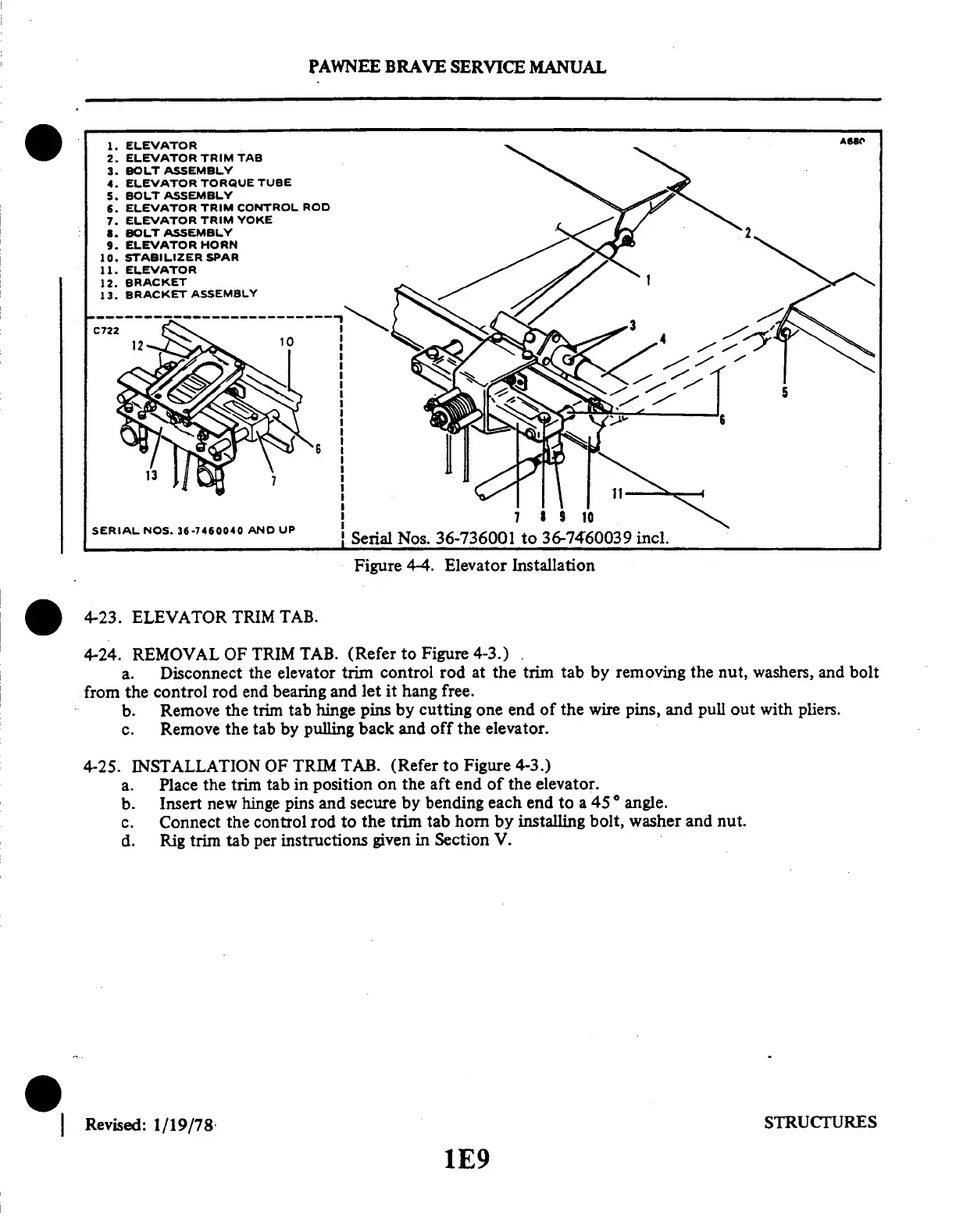

Figure
4-4. Elevator
Installation
4-23.
ELEVATOR
TRIM
TAB.
4-24.
REMOVAL
OF TRIM
TAB.
(Refer
to Figure
4-3.)
a.
Disconnect
the
elevator
trim
control rod
at the
trim tab
by removing
the
nut, washers,
and
bolt
from
the
control
rod end
bearing
and
let it hang
free.
b.
Remove
the
trim
tab hinge
pins
by cutting
one end
of the
wire
pins, and
pull
out with
pliers.
c. Remove
the tab by
pulling
back and
off the
elevator.
4-25.
INSTALLATION
OF TRIM
TAB.
(Refer
to
Figure
4-3.)
a.
Place
the trim
tab
in position
on
the aft
end
of the
elevator.
b. Insert
new
hinge pins
and
secure
by bending
each
end to
a 45
°
angle.
c.
Connect
the control
rod to
the trim
tab horn
by installing
bolt,
washer
and nut.
d.
Rig
trim tab
per instructions
given
in Section
V.
Revised: 1/19/78
STRUCTURES
1E9
